If the movements are selected when one of the conditions listed above is not satisfied, an
error message will be shown on the display indicating what conditions are OK and what
are not satisfied (FAIL). If the missing condition is stabilisation, the message will also
indicate what stabiliser is not resting on the ground.
ST1:
if OK stabiliser 1 is resting on the ground
ST2:
if OK stabiliser 2 is resting on the ground
ST3:
if OK stabiliser 3 is resting on the ground
ST4:
if OK stabiliser 4 is resting on the ground
INLC:
if OK the machine is under the maximum inclination limit
LOAD:
if OK, the load is less than the maximum working load
allowed
BASKET:
if OK the remote control is in place in the basket
PEDAL
: if OK the footswitch is pushed

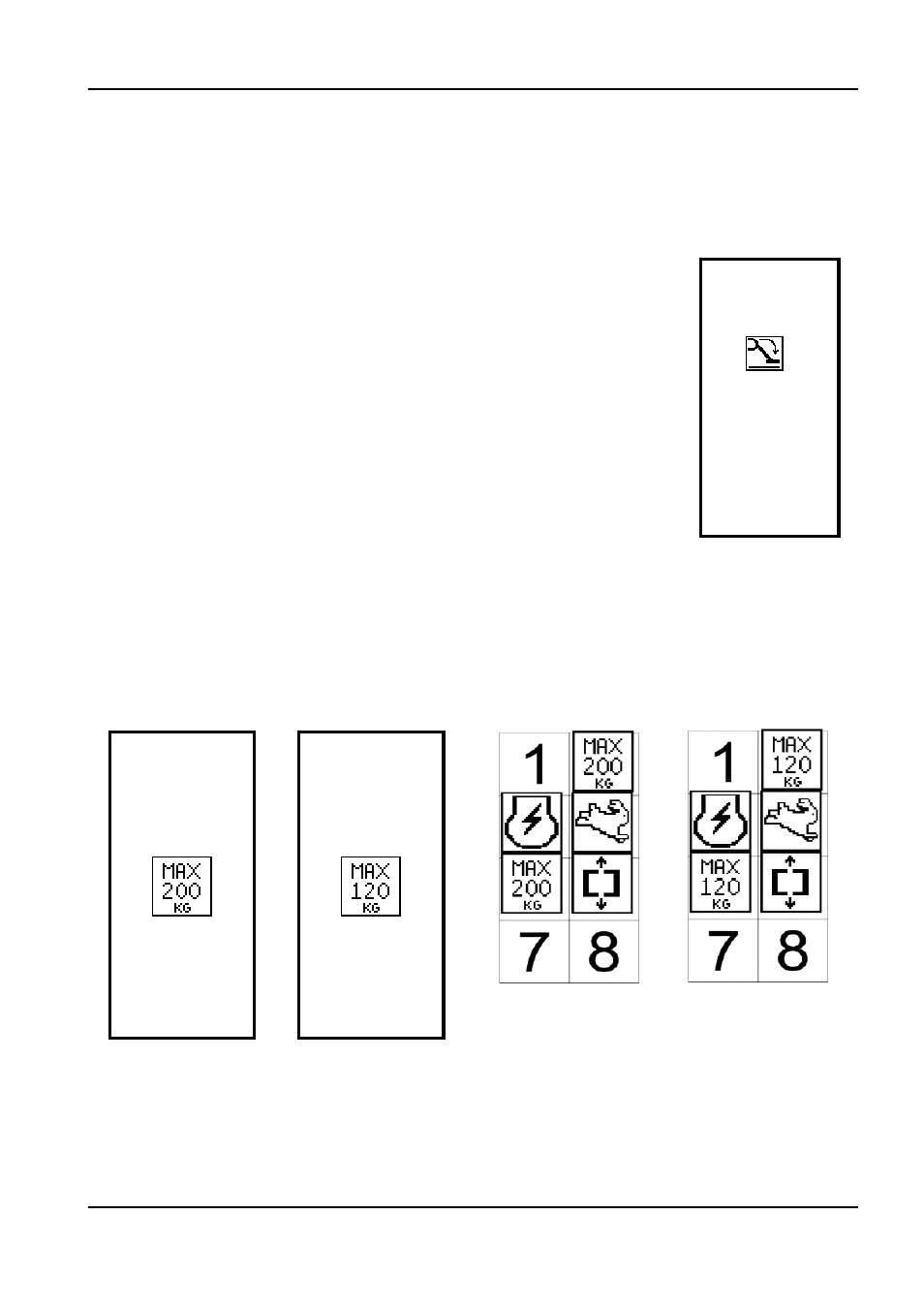

OVERLOAD ALARM
If during the basket loading phases the max allowable load is exceeded based on the position
of the jib arm, all movements of the aerial part will be disabled and an error message will be
shown on the display, first on the entire screen and then in position 5.
The alarm will only be reset when the overload is removed. Normal machine operation can
be resumed only then.
X19JR0620113
BOOM LIFT MODELS X19J
JLG
85
ERROR
ST1 NO
ST2 NO
ST3 NO
ST4 NO
INCL OK
LOAD OK
BASKET OK
PEDAL OK
