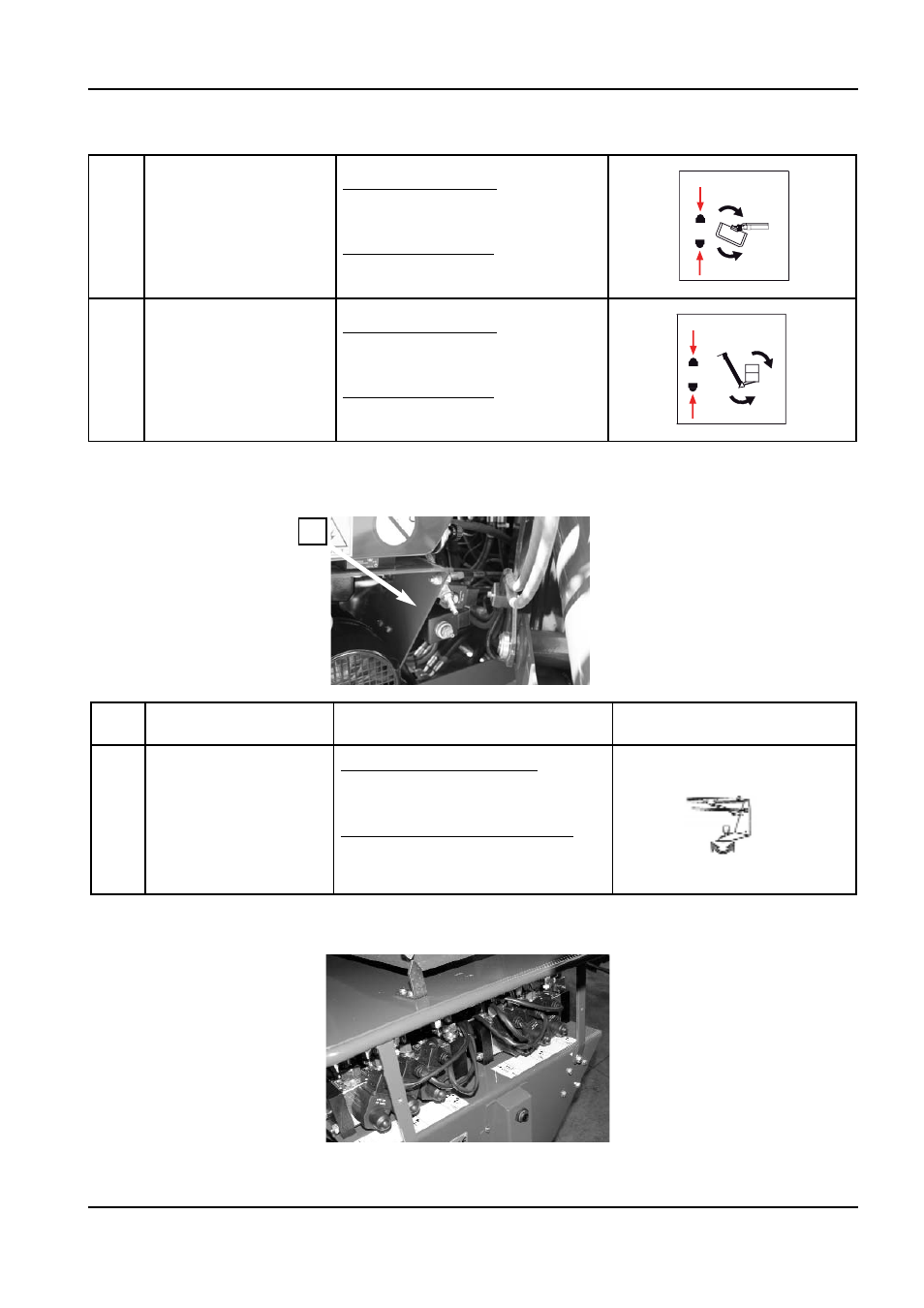

ROTATION HYDRAULIC DISTRIBUTOR
This is positioned in front of the electric motor, under the delivery manifold.
TRACKED UNDERCARRIAGE HYDRAULIC DISTRIBUTOR
5
Basket rotation
control
Pressing button 5A:
basket rotates anticlockwise
Pressing button 5B:
basket rotates clockwise
6
Basket levelling
control
Pressing button 6A:
basket closes
Pressing button 6B:
basket opens
Ref. Description Lever/Movement obtained Pictogram near the control
7 Rotation control
Moving lever 7 upwards:
anticlockwise rotation
Moving lever 7 downwards:
clockwise rotation
7
C 0 0 9 4 8 0 6 0
X19JR0620113
