SECTION 5 - HYDRAULICS
3121810 – JLG Lift – 5-11
a. Steer Select Switch should be in crab or com-
pound steer.
b. Operate steer switch right or left to set rear steer
pressure.
c. Pressure should be 197 bar (2850 psi).
2. Front Steer.
a. Steer Select Switch should be in front steer.
b. Operate steer switch right or left to set rear steer
pressure.
c. Pressure should be 197 bar (2850 psi).
3. Axles.
a. Select Switch should be in Axle position, Steer
Select switch should be in Front Wheel Steer
position.
b. Operate axles in and out.
c. Pressure should be:
Axles Out - 172 bar (2500 psi)
Axles In - 172 bar (2500 psi).

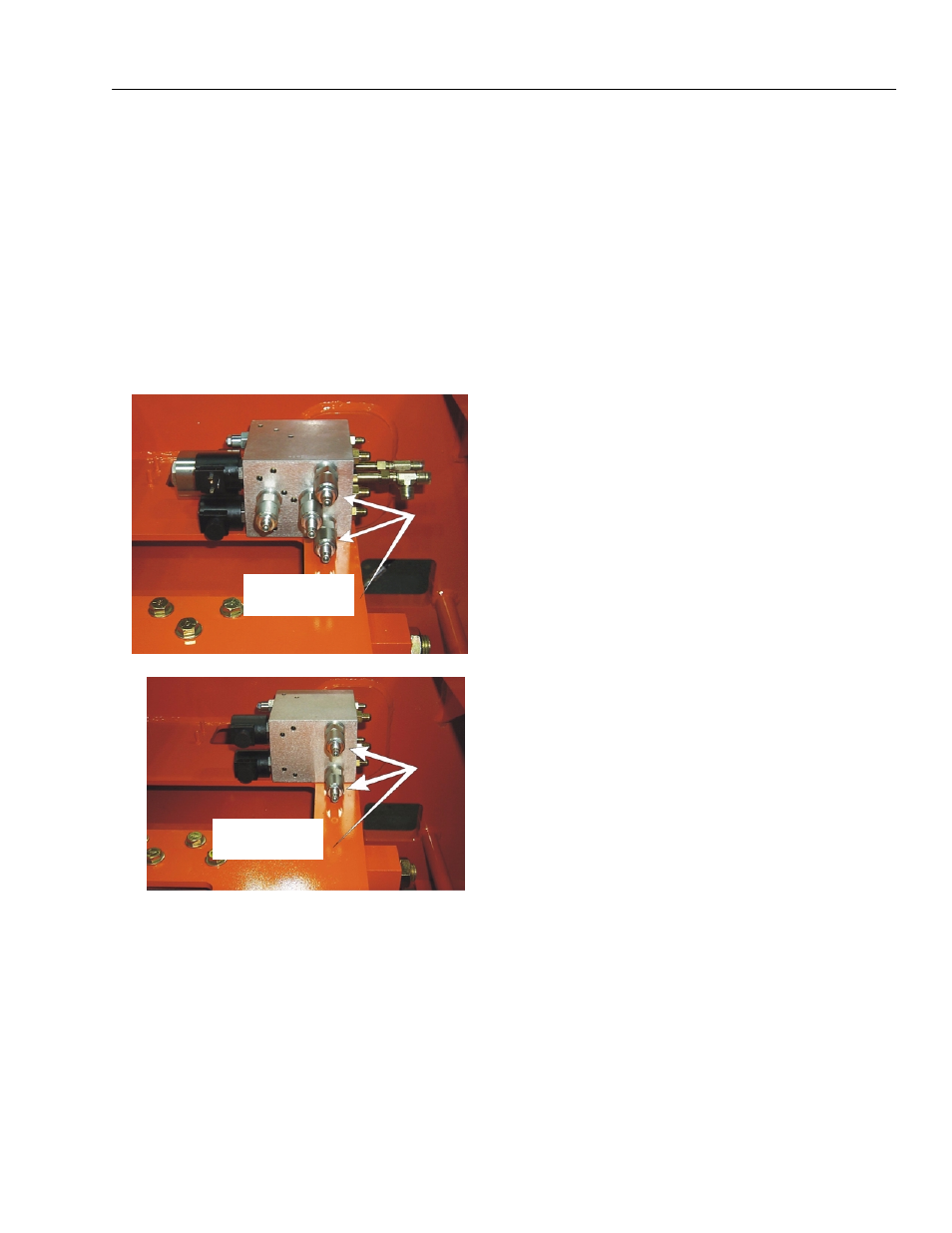

FRONT AXLE
ADJUSTMENTS
REAR AXLE
ADJUSTMENTS
