Aries Automotive TB234009 - Manual (Page 5)

Page 5 of 5 1/23/08 (AM)

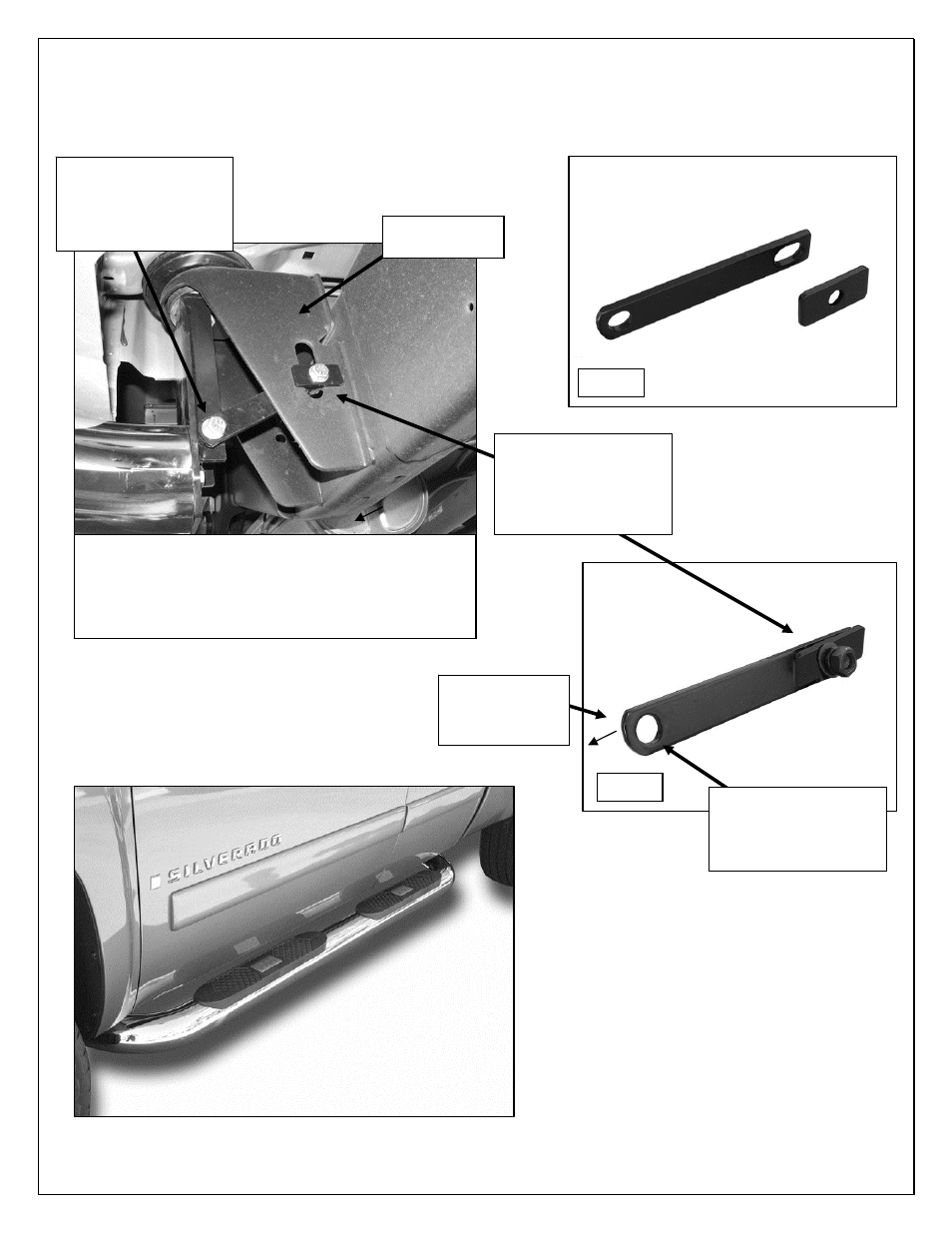

Passenger/right rear Sidebar Mounting Bracket installation pictured
(Viewed from under the vehicle)
(Fig 5A) Typical passenger side rear Mounting
Bracket installation. Bolt the Flat Support Bracket
to an available factory location, (slot pictured, may
also be a round hole) and use (1) Rectangular
Spacer. Use the Flat Support Bracket only.
Factory body
mount bracket
Complete installation
Rear
10mm x 30mm Hex Bolt
(2) 10mm x 20mm STD
Flat Washers
10mm Lock Washer
10mm Hex Nut
Fig 5B
Fig 5C
10mm x 30mm Hex Bolt
Rectangular Spacer
(2) 10mm x 20mm STD
Flat Washers
10mm Lock Washer
10mm Hex Nut
10mm x 30mm Hex Bolt
(2) 10mm x 20mm STD
Flat Washers
10mm Lock Washer
10mm Hex Nut
This end of Flat
Support Bracket
toward Sidebar
Bracket
Flat Support Bracket
Rectangular Spacer
