Page 4 of 5 1/23/08 (AM)

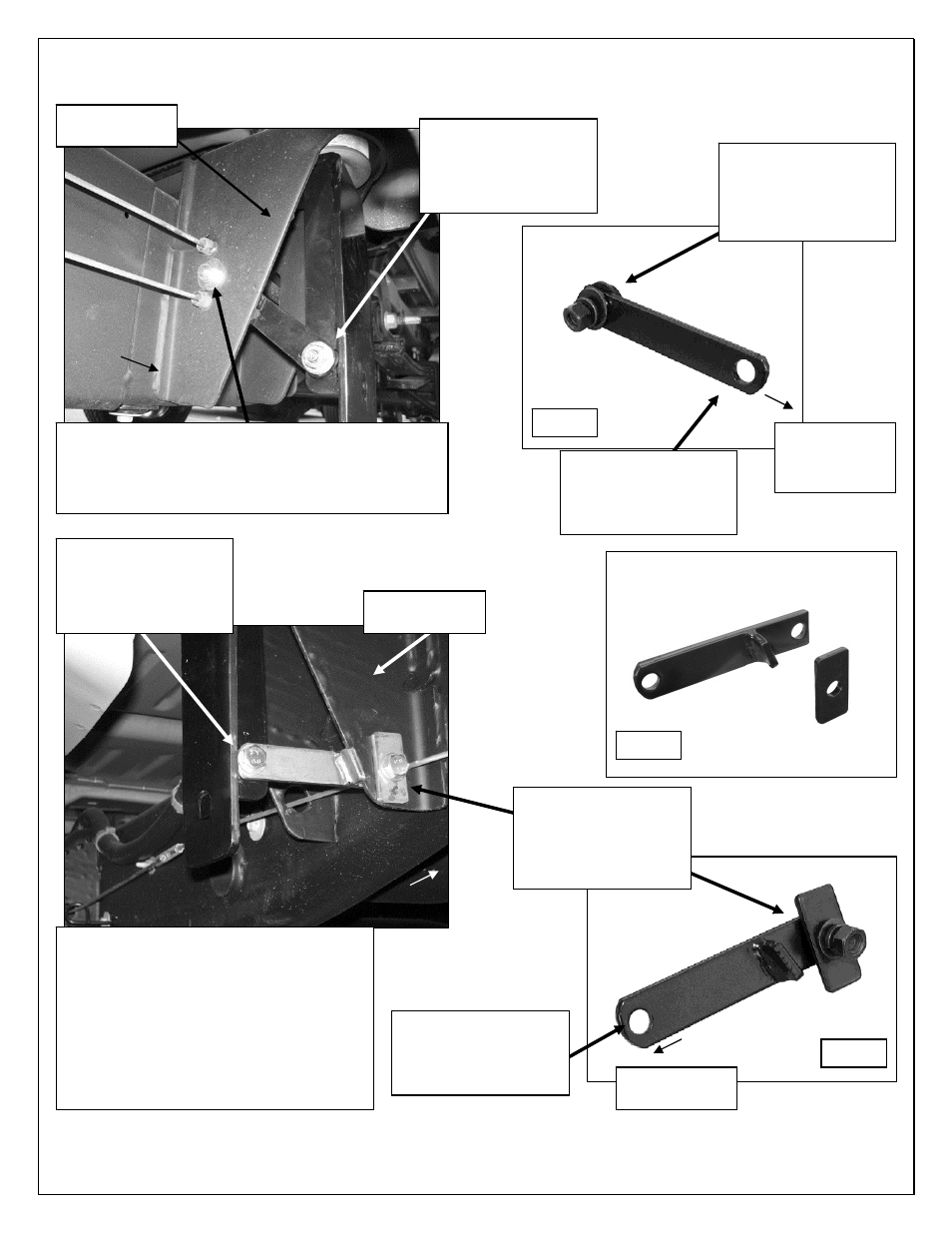

Driver/left rear Sidebar Mounting Bracket installation pictured
(Viewed from under the vehicle)
Factory body
mount bracket
(Fig 3A) If the vehicle is equipped with the factory
body mount bracket with (2) emergency brake
cables and three holes, use the flat bracket and (2)
larger 10mm x 27mm OD x 3mm Flat Washers.
(Fig 4A) IMPORTANT: If the vehicle is
equipped with the factory body mount
bracket with the emergency brake cable
running through the round hole as
pictured, ONLY use the Support Bracket
with the welded stop as pictured above
to prevent the Support Bracket from
interfering with the emergency brake
cable operation.
Factory body
mount bracket
Rear
Rear
10mm x 30mm Hex Bolt
(2) 10mm x 20mm STD
Flat Washers
10mm Lock Washer
10mm Hex Nut
10mm x 30mm Hex Bolt
(2) 10mm x 20mm STD
Flat Washers
10mm Lock Washer
10mm Hex Nut
10mm x 30mm Hex Bolt
(2) 10mm x 27mm Large
Flat Washers
10mm Lock Washer
10mm Hex Nut
Fig 3B
Fig 4B
Fig 4C
10mm x 30mm Hex Bolt
Rectangular Spacer
(2) 10mm x 20mm STD
Flat Washers
10mm Lock Washer
10mm Hex Nut
This end toward
Sidebar Bracket
10mm x 30mm Hex Bolt
(2) 10mm x 20mm STD
Flat Washers
10mm Lock Washer
10mm Hex Nut
10mm x 30mm Hex Bolt
(2) 10mm x 20mm Flat
Washers
10mm Lock Washer
10mm Hex Nut
This end of Flat
Support Bracket
toward Sidebar
Bracket
Rectangular Spacer
Support Bracket
w/welded stop
Flat Support
Bracket
