PARTS LIST:
Qty Description Qty Description
1 Bull Bar 6 12mm Lock Washers
2
Upper Frame Mounting Brackets (for trucks
without tow hooks only)
4 12-1.75mm Hex Nuts
1 Driver/Left Lower Frame Mounting Bracket 2 10-1.5mm x 35mm Hex Bolts
1 Passenger/Right Lower Frame Mounting Bracket 2 10mm Lock Washers
1 Driver/Left Support Bracket 4 10mm x 30mm OD x 3mm Flat Washers
1 Passenger/Right Support Bracket 2 10-1.5mm Hex Nuts
2
12-1.25mm x 25mm (fine thread) Hex Bolt (for
trucks without tow hooks only)
2 6mm x 20mm Button Head Allen Bolt
4 12-1.75mm x 35mm Hex Bolts 4 6mm x 12mm OD x 1.4mm Flat Washers
10 12mm x 30.1mm OD x 3.1mm Flat Washers 2 6mm Nylock Hex Nut
4 14-2.0 Pitch Nut 4 4mm Flat Washers
4 14mm Lock Washers
PROCEDURE:
1. REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ
INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. CUTTING IS REQUIRED.
ASSISTANCE IS RECOMMENDED.
2. Starting at the underside of the front bumper, carefully remove the plastic splash guard. NOTE:
Depending on the model of truck, the splash guard may be attached to the bottom of the truck with
hex bolts. There are also several two-piece plastic push-in clips across the back, behind the
bumper cover holding the splash guard up to the cover, (Fig 1A). First, locate the clips behind the
bumper cover. Pry the center pin of the clip up with a small flat blade screwdriver and remove the
entire clip, (Fig 1B). The splash guard may also be attached with rivets or hex bolts at the corners
of the bumper cover. If the guard is fastened with rivets, once all of the other hardware has been
removed, hold the bumper cover in place and firmly pull the splash guard from the rivet. Remove
the rivet from the bumper cover and move the splash guard to a clean stable work area. Pay close
attention to the type and location of all factory hardware for reinstallation.
Page 1 of 5
INSTALLATION INSTRUCTIONS
BULL BAR PART# B35-5005 / 35-5005
2009-11 DODGE RAM 1500

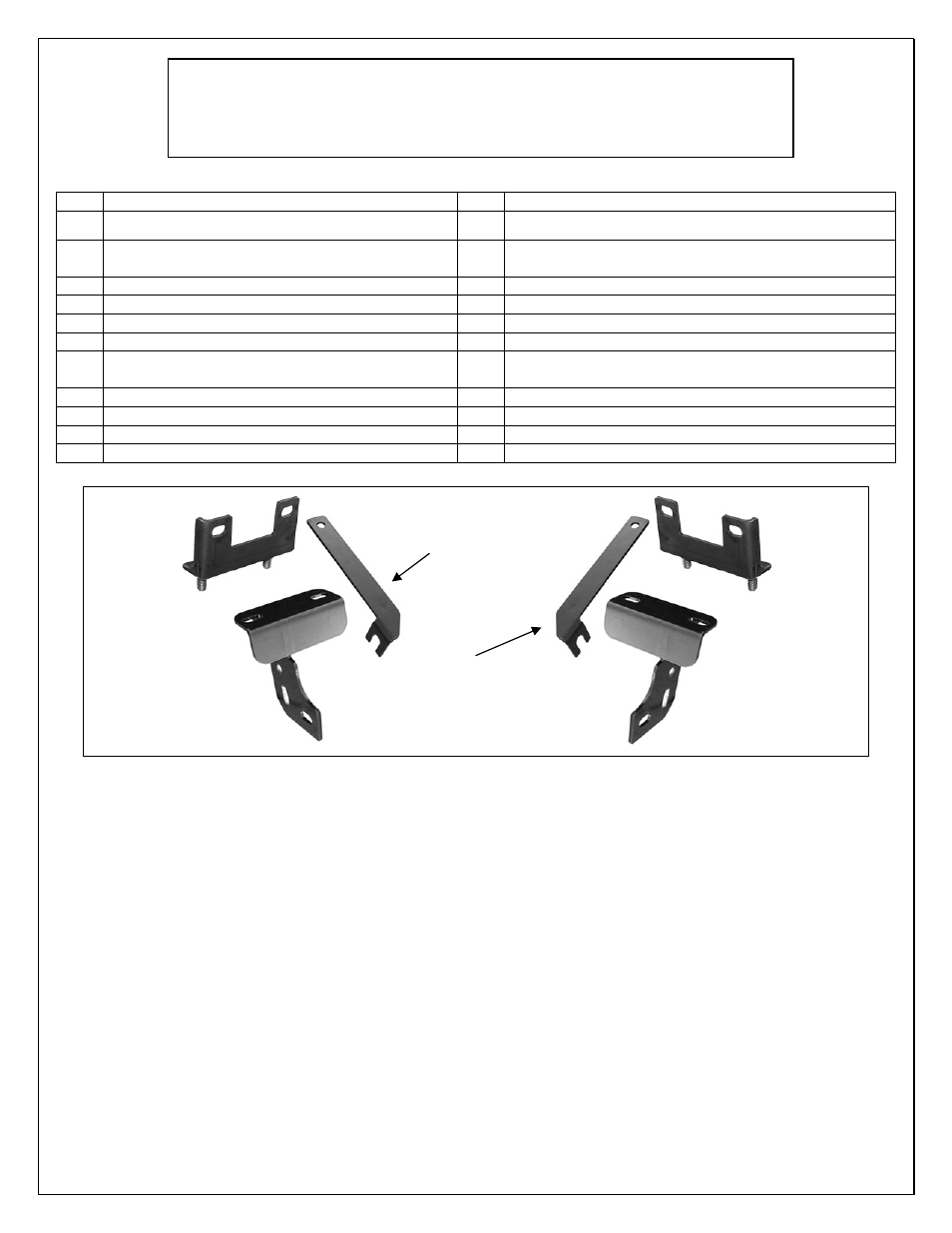

Passenger Side
Lower Frame
Mounting Bracket
Driver Side Lower
Frame Mounting
Bracket
Passenger Side
Support Bracket
(see note below)
Upper Frame
Mounting
Bracket (use
on trucks
without tow
hooks only)
Upper Frame
Mounting
Bracket (use
on trucks
without tow
hooks only)
Driver Side Support Bracket
(Support Brackets shown in non-
tow hook direction. Reverse
direction for tow hook equipped
vehicles)
