6. DETATCH (2) PUSH IN CLIPS LOCATED ON HORN WIRE HARNESS. SEE
FIG. 3 INSERT ANGLE BRACKET THROUGH PASSENGER SIDE &
ATTACH USING (2) ¼ x 1 ¼ HEX BOLT, (2) ¼ HEX NUTS & (2) ¼ FLAT
WASHERS. THEN TIGHTEN ( NOTE: OVAL HOLES SHOULD BE FACING
TOWARDS FRONT BUMPER)
7. SLIDE TOP BRACKET THROUGH PLASTIC GRILL. ALIGN AND ATTACH
USING (1) 3/8 x 1 ¼ HEX BOLT, (1) 3/8 FLAT WAHER. ( LEAVE LOOSE)
SEE FIG. 4 ( REPEAT SAME STEPS ON OPPOSITE SIDE)
8. ATTACH GRILL GUARD ON OUTSIDE OF LOWER BRAKCET USING (3)
7/16 X 1 ¼ HEX BOLT. (3) 7/16 HEX NUT. (6) 7/16 FLAT WASHER SEE FIG.
1 ( REPEAT SAME STEPS ON OPPOSITE SIDE)
9. ATTACH TOP BRACKET ON INSIDE OF GRILL GUARD USING (1) 3/8 X1
BUTTON ALLEN BOLT, (1) 3/8 HEX NUT NYLOC, (1) 3/8 FLAT WASHER
SEE FIG. 4 ( REPEAT SAME STEPS ON OPPOSITE SIDE)
10. LEVEL AND ADJUST GRILL GUARD AS DESIRED AND TIGHTEN.
11. MEASURE AND TRIM LOWER PLASTIC LINER AS DESIRED.
REINSTALL LOWER PLASTIC LINER ON VEHICLE.

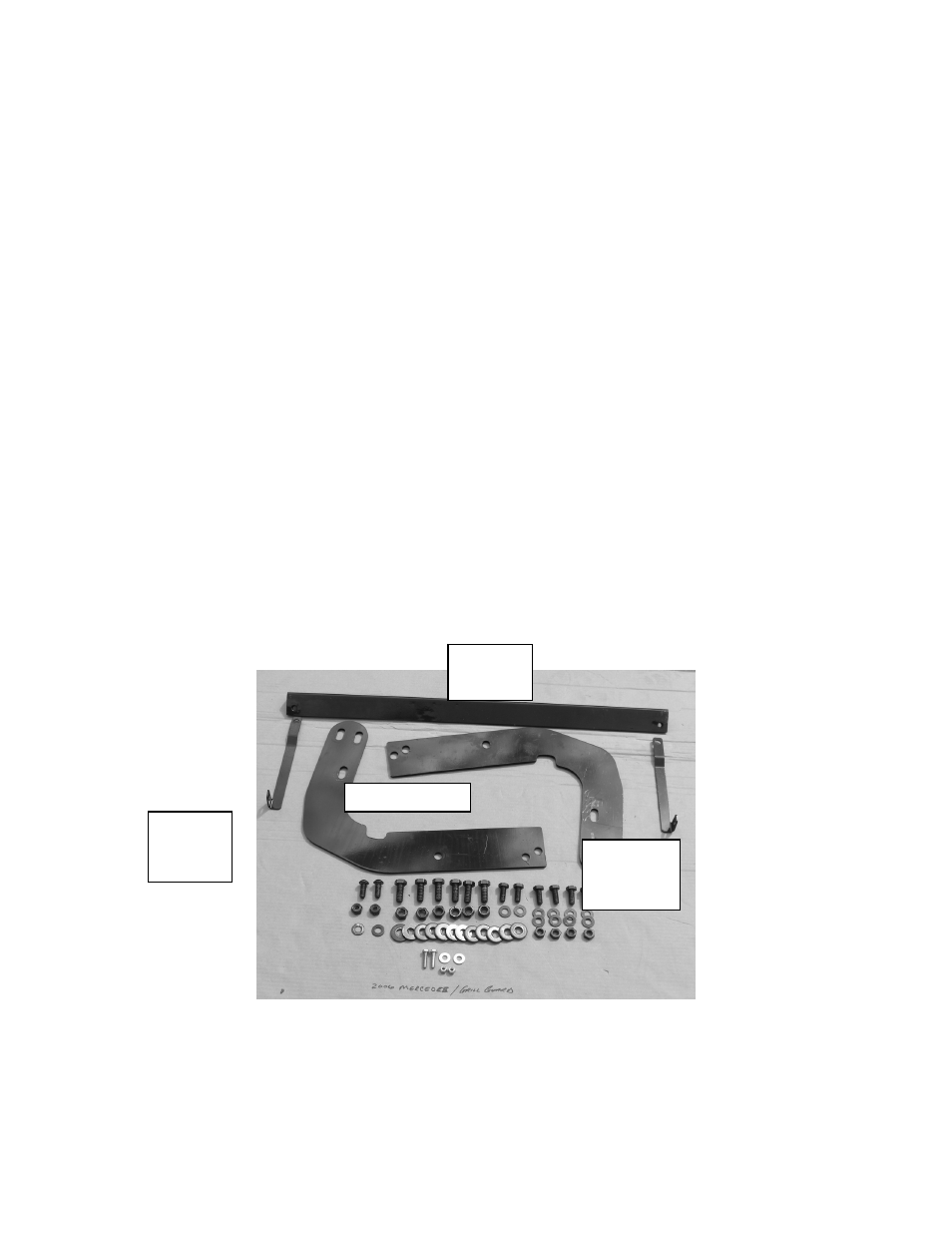

Top
Bracket
Driver
Top
Bracket
Passenger
Angle
Bracket
Lower brackets
