Page 4 of 6 11/13/2009

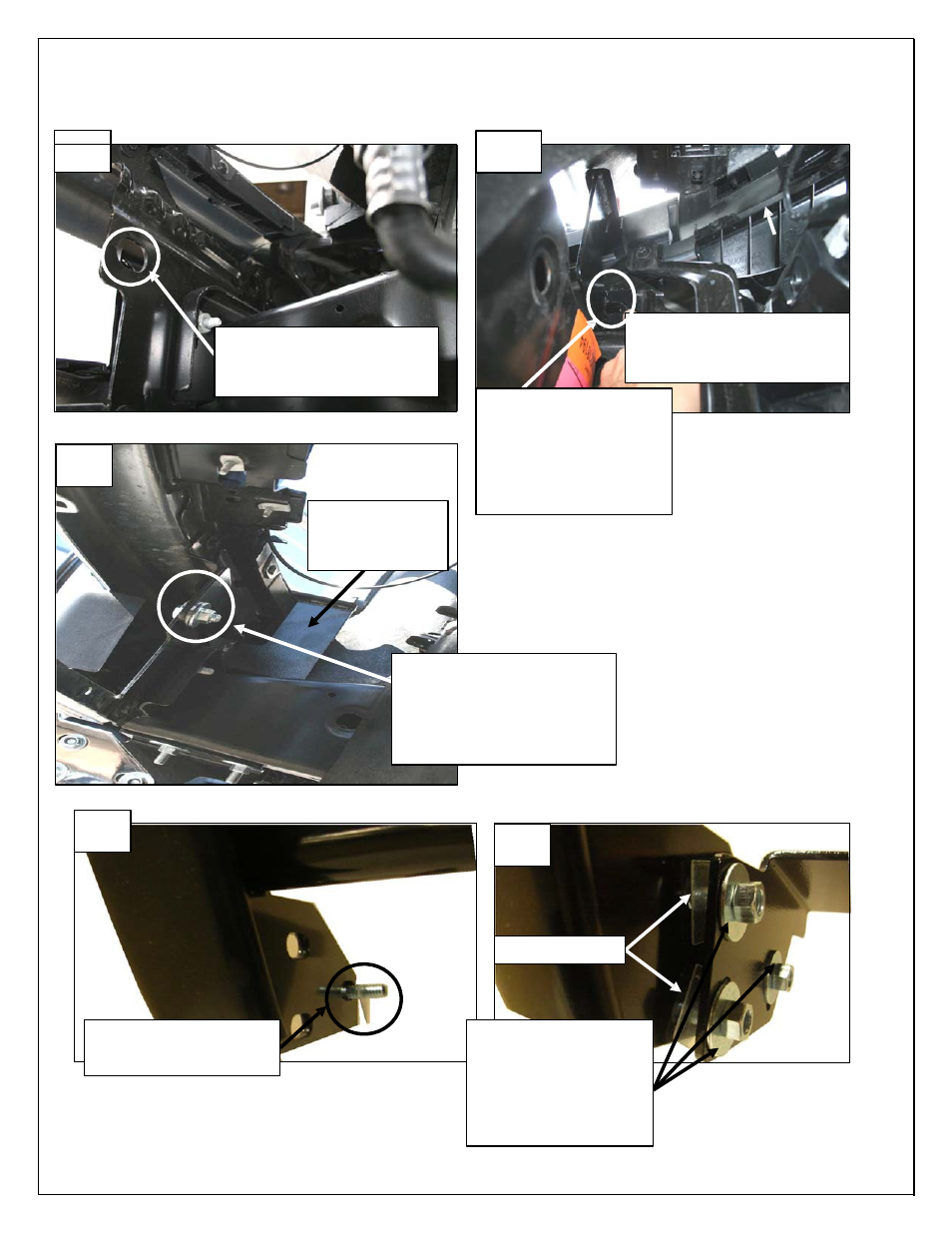

Fig 2
Location of mounting hole
for passenger/Right side
brace bracket
PASSENGER SIDE INSTALLATION PICTURED
Fig 2A
Location of mounting hole
for passenger/Right side
brace bracket.
Fig 3
Passenger/Right
side Brace
Bracket
Secure with bracket with
(1)12mm Bolt plate
(2) 12mm x 30mm OD
flat washer
(1)12mm Lock Washer
(1)12mm Hex Nut
(1)12mm x 25mm Bolt plate
(2) 12mm x 30mm OD flat
washer
(1)12mm Lock Washer
(1)12mm Hex Nut
Fig 4
Fig 5
Plastic washers
(1) 12mm x 30mm Bolt
(1) Plastic washer (3)12mm Hex Bolt
(6) 12mm x 37mm OD
flat washer
(3)12mm Lock Washer
(3)12mm Hex Nut
(3) Plastic washers
