Chapter 7 – Prestart Inspection
TB80/TB85J Fixed Axle – 0112792 35
Electrical Power Outlet
Connect a source of 125 volt AC power to the power-input
connector on the left side of the wiring box (refer to Fig-
ure 7.23).

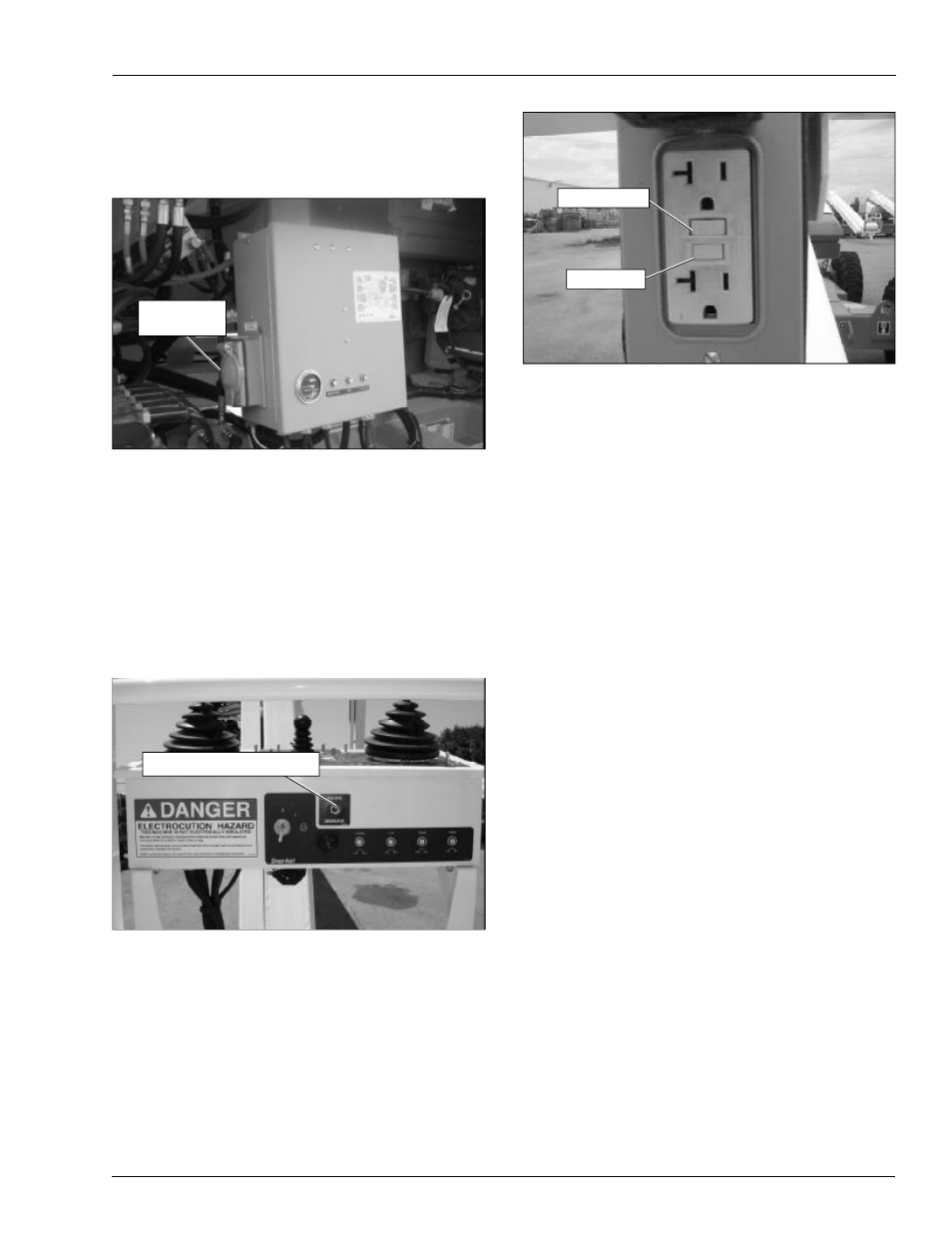

Figure 7.23 – Wiring Box
Some machines may have an electrical cable already
plugged into the outlet on the lower control panel. In that
case, power is supplied by an optional AC generator. An
external power source is not required.
With the engine running, place the machine/generator
control (refer to Figure 7.24) in the generator position to
provide electrical power to the two electrical outlets at
the platform and to the outlet on the end of the generator
housing.
Figure 7.24 – Upper Control Panel Front
Plug an electrical tool into the receptacle at the platform
and at the generator and try to operate the tool to verify
proper operation of the outlet.
The outlet is equipped with a ground fault circuit inter-
rupter (GFCI). Use the following procedure to test the
GFCI.
1. Push the test button (refer to Figure 7.25).
Figure 7.25 – Electrical Power Outlet
2. Plug an electrical tool into the outlet and verify the
power is off.
• If the power was off, push the reset button to
restore power.
• If the power was on, repair or replace the recep-
tacle.
Drive Motion Alarm
The machine may be equipped with an optional drive
motion alarm. Drive in both the forward and reverse direc-
tions to ensure that the alarm sounds to warn personnel
in the area that the aerial platform is in motion.
Driving and Work Lights
The machine may be equipped with driving lights and/or
platform work lights. Turn the engine on and use the switch
on the back of each light to momentarily turn it on to see
that it works.
Platform Control Cover
The machine may be equipped with an optional platform
control cover. Inspect the cover to ensure it fits properly
over the control panel.
Tow Kit
The machine may be equipped with an optional tow kit.
Inspect the tow bar and steering arm to verify the compo-
nents are present and in working condition.
Placards and Decals
Inspect all safety and operational placards and decals.
Make certain they are in place, in good condition, and
are legible.
The placards and decals may be cleaned with soap and
water, and a soft cloth if the words or pictures cannot be
seen.
A
Caution
Solvents may contain hazardous ingredients. Fol-
low the manufacturer’s label for proper use and dis-
Power-Input
Connector
Reset Button
Test Button
Machine/Generator Switch
