Chapter 10 – Stowing and Transporting
38 S1930 – 0361518EE
1. Position the transport vehicle so the aerial platform
will not roll forward after it is loaded.
2. Remove any unnecessary tools, materials, or other
loose objects from the platform.
3. Drive the machine to the foot of the loading ramp
with the front wheels nearest the ramp. Make sure
the machine is centered with the ramps and that the
steering wheels are straight.
4. Properly stow the aerial platform.
A
Warning
The aerial platform is free to move when the brakes
are released. Death or serious injury can result. Re-
enable the brakes before operating the aerial plat-
form.
5. Chock the wheels to prevent uncontrolled motion of
the aerial platform.
6. Unlatch and swing out the hydraulic tray on the right
side of the chassis. The free-wheeling valve is lo-
cated on the hydraulic manifold (refer to Figure 10.3).
Turn the free-wheeling valve counterclockwise to the
fully open position.

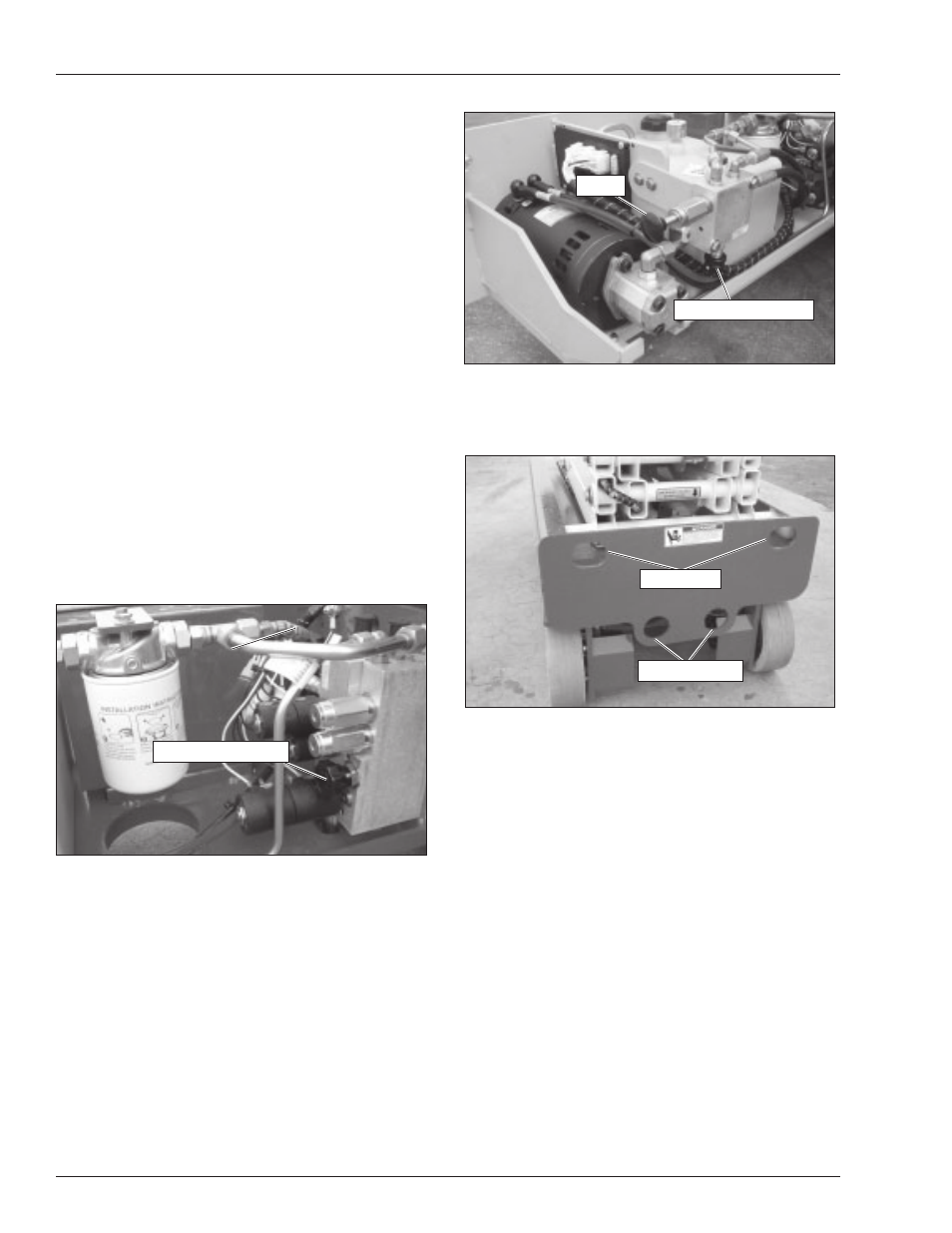

Figure 10.3 – Hydraulic Tray
7. The brake release pump is located on the brake re-
lease valve (refer to Figure 10.4). Push and release
the knob several times to release the brakes.
Figure 10.4 – Hydraulic Tray
8. Attach the winch line to the tie-down lugs (refer to
Figure 10.5) on the front of the chassis.
Figure 10.5 – Front of Chassis
9. Remove the wheel chocks and use the winch to po-
sition the aerial platform on the transport vehicle.
10. Close the free-wheeling valve.
11. Drive the aerial platform forward or reverse and then
stop to reset the parking brakes.
12. Verify that the drive system and brakes operate prop-
erly before operating the aerial platform.
Driving
A
Danger
The aerial platform can tip over if it becomes un-
stable. Death or serious injury will result from a tip-
over accident. Do not drive on ramps that exceed
20 percent grade, or where conditions of the ramp
could cause driving to be hazardous.
Use a winch to load and unload the aerial platform on
ramps that exceed a 20 percent grade. A grade of 20
percent is a 61 cm (24 ″) vertical rise in 3.05 m (10′) hori-
Tie-Down Lugs
Lifting Lugs
Free-Wheeling Valve
Brake Release Valve
Pump
