Chapter 7 – Controls
18 PUSH 6,8,10
Upper Controls
The upper controls (refer to Figure 7.3) are located on
the control panel at the platform.

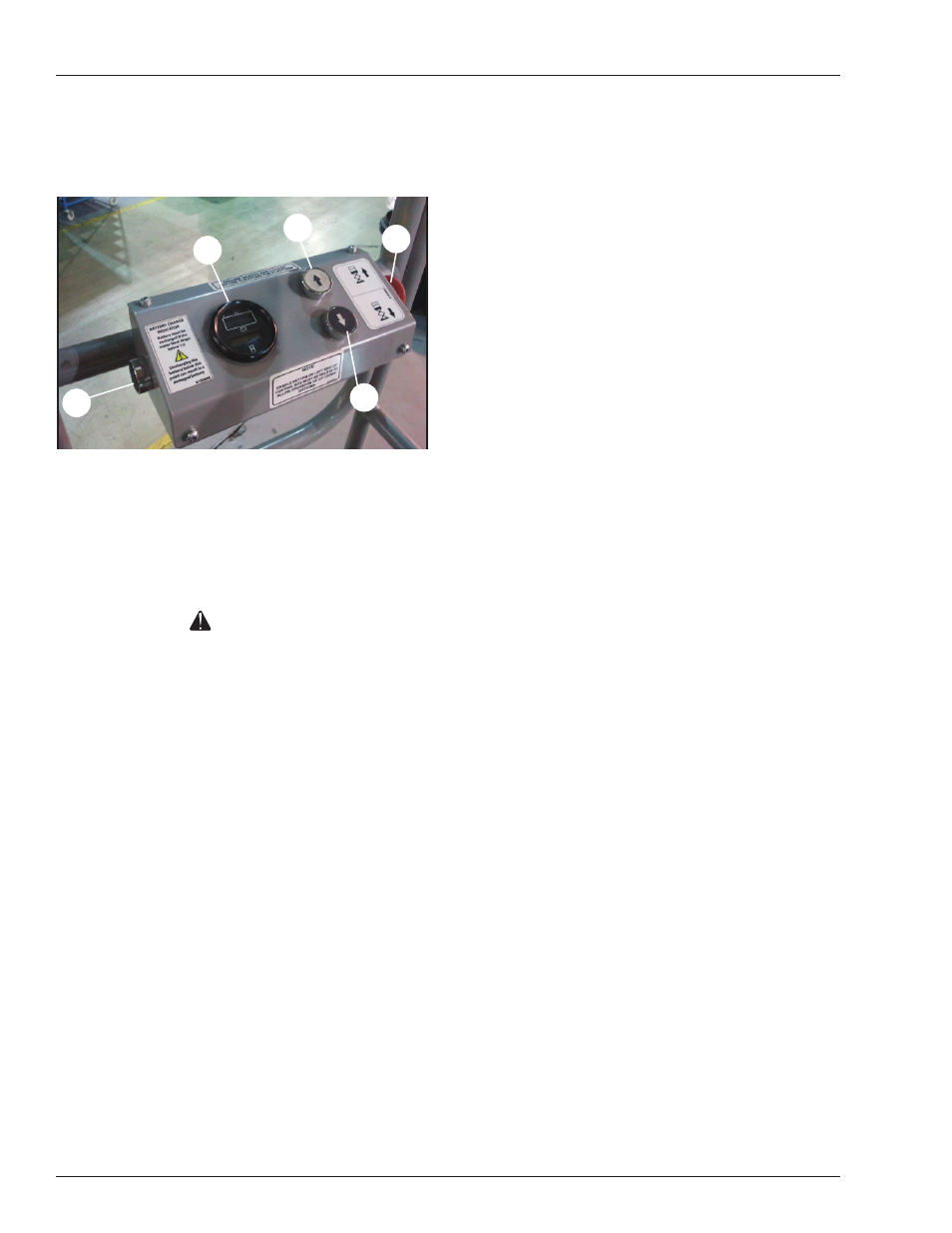

Figure 7.3 – Upper Controls
12. Interlock button
13. Battery condition indicator
14. Platform lower button
15. Platform raise button
16. Emergency stop button
Warning
The aerial platform is free to move when the brakes
are released. Death or serious injury can result.
Engage the brakes before operating the aerial plat-
form.
The following controls are located on the upper control
panel:
• Interlock button
• Battery condition indicator
• Platform raise/lower buttons
• Emergency stop button
Emergency Stop Button
The emergency stop is a two-position, red push button
on the right side of the upper control panel.
• Push the button inward to disconnect power from all
control circuits at the upper controls.
• Twist the button clockwise to restore power.
Push the button in when the upper controls are not in use
to help protect against unintentional platform operation.
Interlock Button
The interlock button prevents platform movement if the
platform raise or lower button is accidentally pressed. This
switch is spring returned to the off position.
Press and hold the interlock button inward continually to
operate the machine from the upper controls.
Platform Raise/Lower Buttons
The platform raise/lower buttons are used to raise or
lower the platform. The buttons are spring returned to
the off position.
• Press and hold the platform raise button to raise the
platform.
• Press and hold the platform lower button to lower the
platform.
• An alarm will sound as the platform lowers.
Battery Condition Indicator
The battery condition indicator gauge is on the top of the
upper control box. It indicates the level of available battery
power to operate the aerial platform.
.
12
13
14
15
16
