17
Warning
The aerial platform is free to move when the brakes are
released. Death or serious injury can result. Engage the
brakes before operating the aerial platform.
Emergency Stop Button
The emergency stop is a two-position red push button.
• Push the button inward to disconnect power to all control
circuits.
• Pull the button outward to restore power.
Control Selector Switch
Insert the key into the control selector switch.
• Turn the switch to the lower controls position to oper-
ate aerial platform functions from the lower controls. The
upper controls will not operate while the control selector
is in the lower position.
• Turn the switch to the upper controls position to oper-
ate the aerial platform functions from the upper controls.
• In the center position, aerial platform functions will not
operate from the lower or upper controls.
Ground Operation Button
The ground operation button prevents platform move-
ment if the platform raise or lower button is accidentally
pressed. This switch is spring returned to the off position.
Press and hold the ground operation switch inward con-
tinually to operate the machine from the lower controls
while selecting Raise or Lower Buttons.
Platform Raise/Lower Buttons
The platform raise/lower buttons are used to raise or
lower the platform. The buttons are spring returned to
the off position.
• Press and hold the platform raise button to raise the
platform.
• Press and hold the platform lower button to lower the
platform.
• An alarm will sound as the platform lowers.
Chapter 7 – Controls
Danger
Pinch points may exist between moving components.
Death or serious injury will result from becoming
trapped between components, buildings, structures,
or other obstacles. Make sure all personnel stand
clear while operating the aerial platform.
y
Controls to operate the platform are located on the
lower control panel on the chassis and on the upper
control panel in the platform.
Lower Controls
The lower controls (refer to Figure 7.2) are located on the
right side of the chassis. Only platform functions can be
operated from the lower controls.

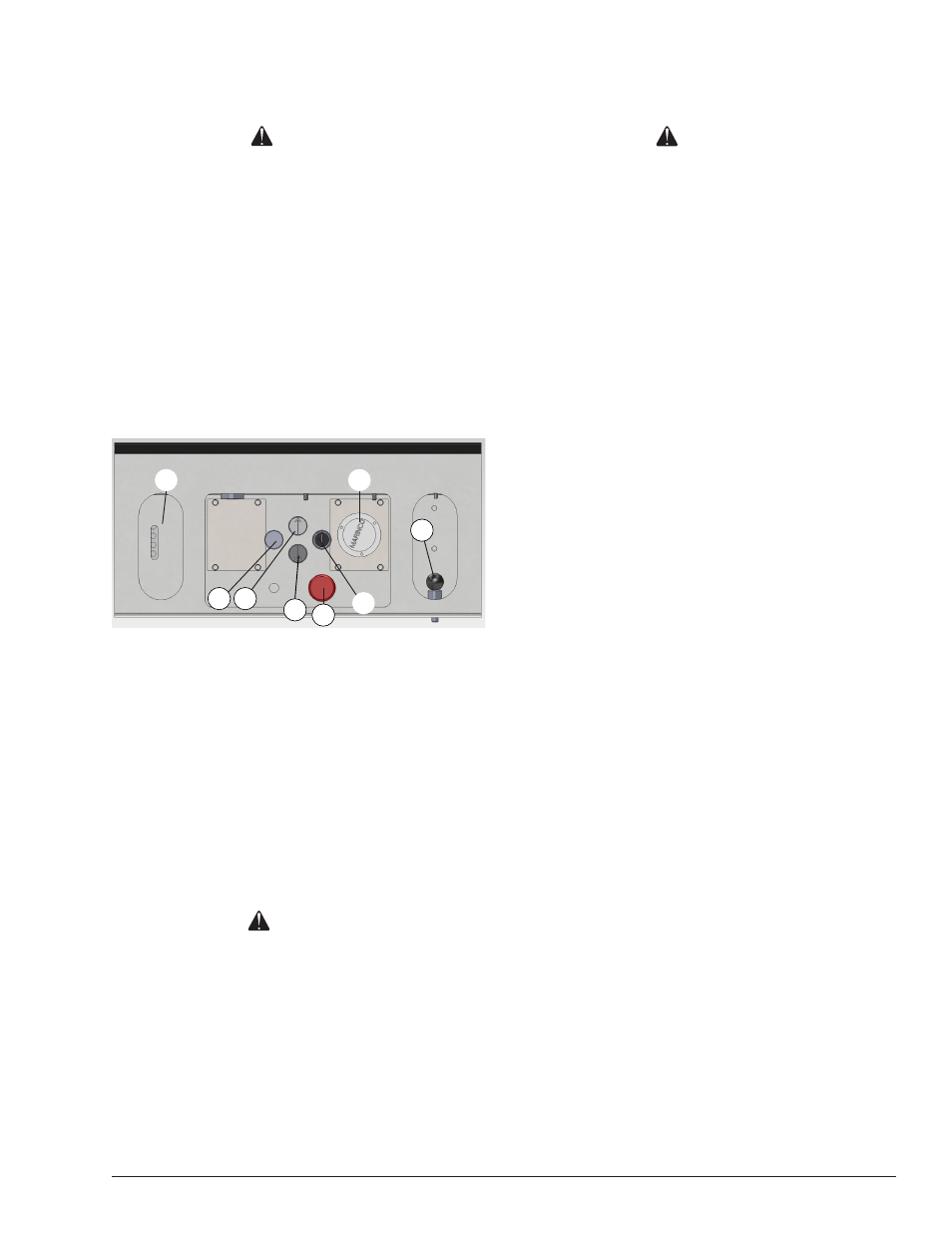

Figure 7.2 – Lower Controls
1. Battery charge indicator
2. Battery charger plug Inlet (125v,15A)
3. Tray latch
4. Ground operation button
5. Platform raise button
6. Emergency stop button
7. Platform lower button
8. Control selector switch
Caution
Only authorized personnel should operate the aerial
platform. Unqualified personnel may cause injury
to coworkers or property damage. Lock the battery
disconnect switch in the off position before leaving
the aerial platform unattended.
The following are located on the lower control panel:
• Emergency stop button
• Control selector switch
• Ground operation button
• Platform raise/lower buttons
• Charger Inlet (125v,15A)
1 2
3
4 5
6
7
8
