10. Stowing and Transporting
■ Stowing
At the end of each work day (or in prep a ra tion for
lift ing or stor age) a qual i fied op er a tor should put
the EPV12J into its stowed po si tion then lock by
plac ing the two boom lock pins in po si tion.
To bring the EPV12J into the STOWED POSITION
use the con trols on the ground con trol box or plat -
form con trol box to:
1. Fully lower all booms.
2. Align the lower boom travel lock with the
boom rest mounted to the base.
3. Place both boom restraints and keepers in
place.

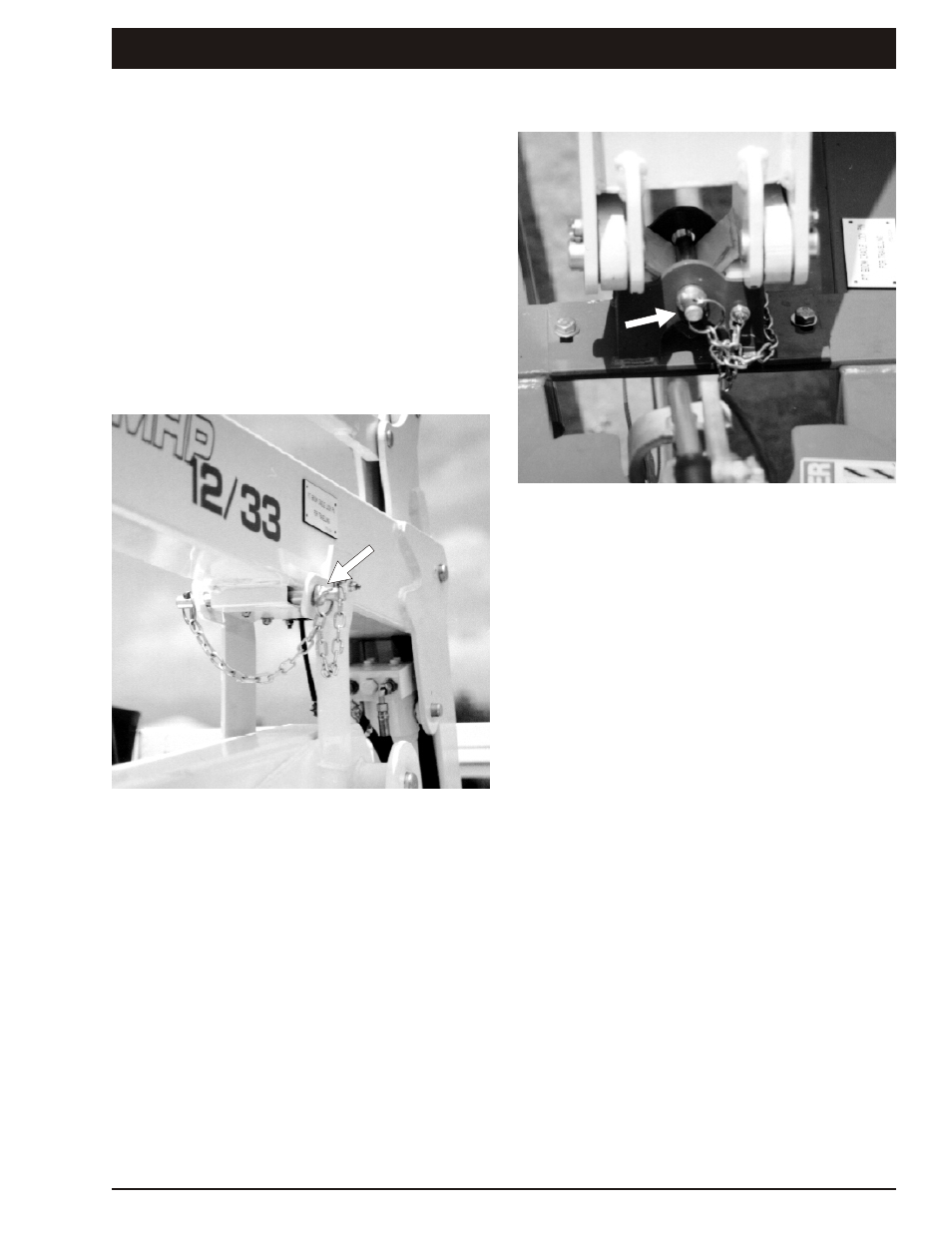

Figure 10.2 - Upper Boom Lock Pin
Figure 10.3 - Lower Boom Lock Pin
If using the upper controls go now to the
ground controls and:
4. Switch the Ground / Platform selector to
ground.
5. Set the Booms / Stabilizer selector to
stabilizer.
6. Using the stabilizer controls raise the
stabilizers (rear first to avoid damage to the
jockey wheel)
7. Set the Master Key switch on the ground
control box to off and remove the key.
EPV12J – 12246A page 10 - 1
❑
Upper boom lock pin
❑
Lower boom lock pin
