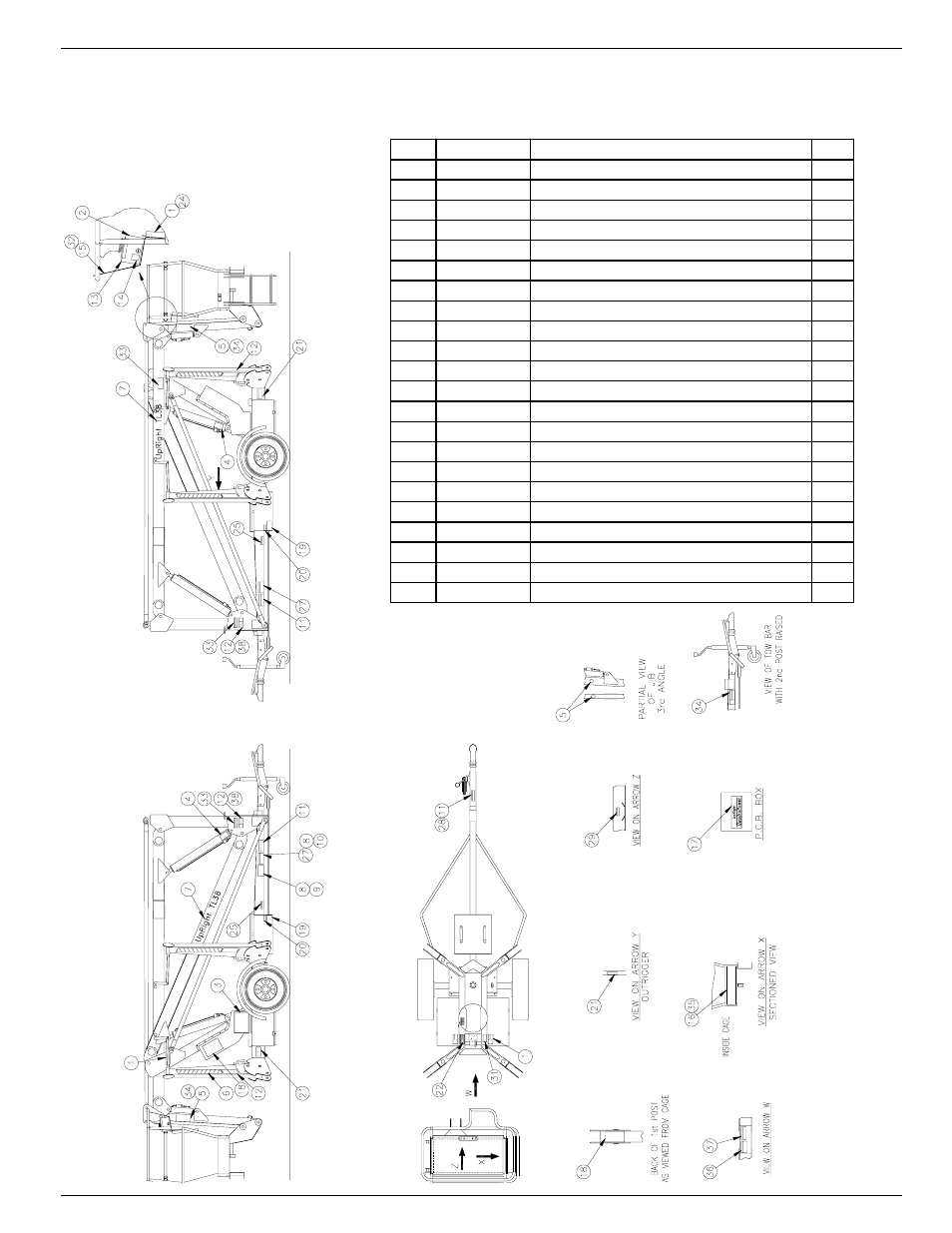

Labels
500315-005
TL38 Operator Manual
Page 13
L
ABELS
These labels shall be present and in good condition before operating the work platform. Be sure to read,
understand and follow these labels when operating the work platform.
ITEM PART NO.
DESCRIPTION
QTY.
1 057421-000 DECAL - ELECTROCUTION HAZARD
2
2 057420-000 DECAL - TIP OVER HAZARD
1
3 058608-001 DECAL - LOWER CONTROL BOX
1
4 057382-000 DECAL - EMERGENCY LOWERING
2
5 058860-000 DECAL - HAND HAZARD
3
6 057385-000 HAZARD TAPE (900mm LONG)
8
7 058609-000 DECAL - "Ui" LOGO
2
8 057339-001 PLASTIC PUSH RIVET
2
9 058838-000 E.U. NAME PLATE
1
10 058836-000 V.I.N. PLATE
1
11 057416-000 DECAL - BEFORE TOWING
1
12 057418-000 DECAL - LOCK OUTRIGGER TOWING
2
13 058607-000 DECAL - UPPER CONTROL BOX
1
14 058186-000 DECAL - ON/OFF UPPER CONTROL
1
15 058016-000 DECAL - MACHINE GENERAL INSTR.
1
16 057392-000 DECAL - S.W.L. LARGE CE
1
17 057387-000 DECAL - UPPER QUADRAPOWER
1
19 057430-000 DECAL - EXPLOSION HAZARD
2
20 057429-000 DECAL - BATTERY FLUID LEVEL
2
21 057417-000 DECAL - TIP OVER HAZARD
4
22 057507-010 DECAL - ARROW
2
23 058992-000 DECAL - BOOM LOCK PIN
1
