Transportation 500315-005
TL38 Operator Manual Page 9
T
RANSPORTATION
C A U T I O N
The TL38 is not designed to be forklifted, and does not have provision on the Chassis to allow this
method of lifting. Ui recommends the procedure below for handling the machine.
W A R N I N G ! !
See specifications at rear of manual for the weight of the work platform and be certain that lifting
apparatus is of adequate capacity to lift the platform.
B
Y
C
RANE

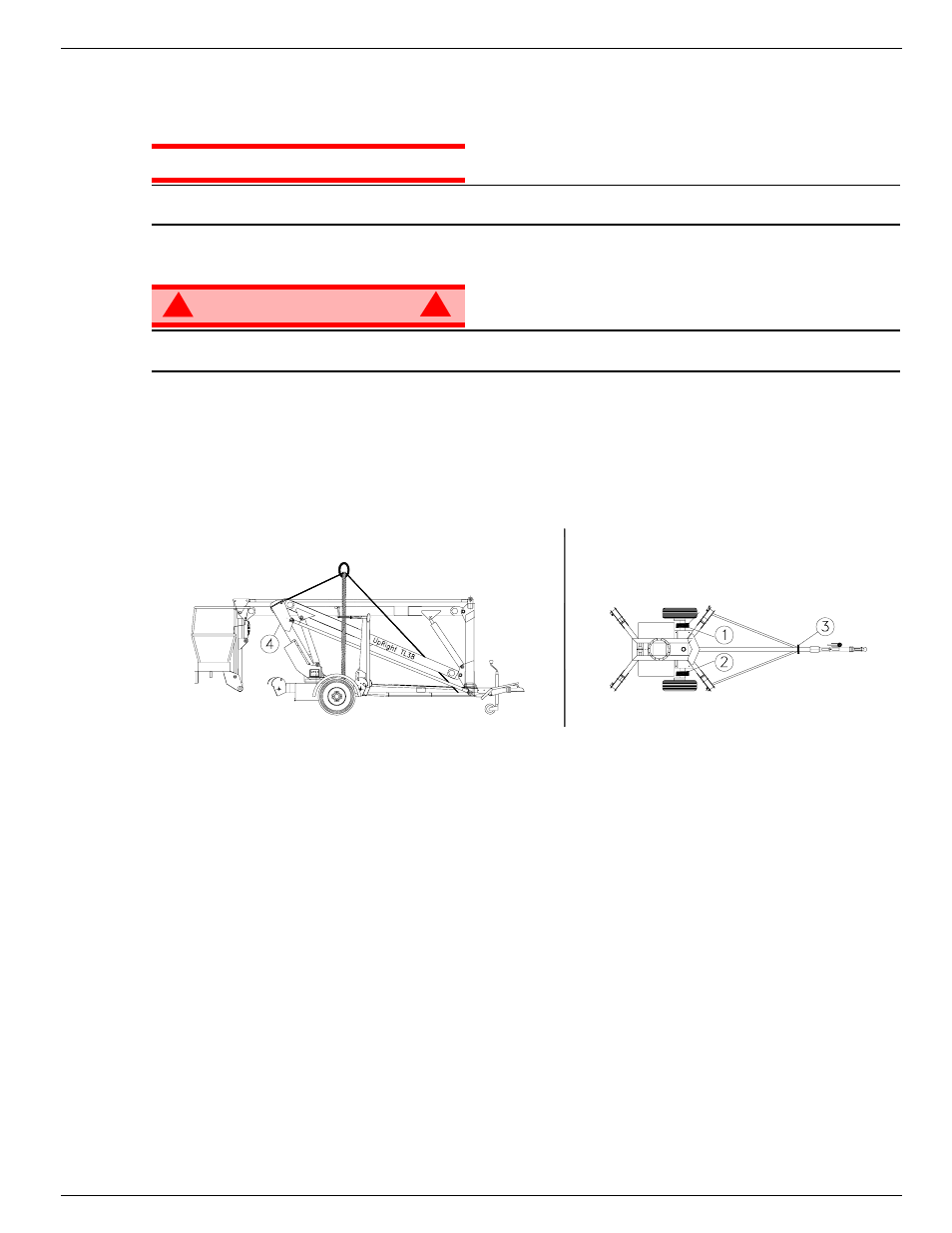

The TL38 may be lifted by an overhead hoist crane in the following manner:
Two lifting straps capable of safely supporting the total weight of the TL38 (1468Kg (3,237lbs)), and at
least 220cm long are required. This minimum length is important to ensure the correct lifting angle. The
straps should be positioned as shown in.
The two lifting straps (Positions 1 & 2) should be positioned either side of the TL38’s axle assembly at
the points indicated. Care must be taken to ensure the straps do not interfere with any of the other part of
the TL38.
Two securing lines (Positions 3 & 4) should also be used when lifting the TL38 Work Platform. These are
used to maintain the balance of the TL38 but are NOT to be considered as lifting points. Position 3
shows the securing line around the Tow Bar where the Cycle Guard Frames meet. Position 4 shows the
securing line around the First Post. This line should be secured below the Boom Rest, however care
should be taken not to damage the Boom Rest Limit Switch or its cable on a TL38 with hydraulic outrig-
gers
.
B
Y
R
OAD
It is important that before commencing transport to ensure the vehicle used is capable of towing 2000kg.
The TL38 is a road approved vehicle and therefore may be transported behind a motor vehicle of suitable
towing capacity. It is recommended that the vehicle used should have a tow bar where the top of the ball is
at a height of between 1.42 ft (435 mm) and 1.64 ft (500 mm) above surface level. These dimensions are
important for the following reasons;
1. The bottom of the Platform may be in danger of hitting the surface while driving if the tow hitch is above
the upper limit.
2. The towing vehicle will support too much weight if the Towhitch is too low.
