Maintenance
M
AINTENANCE
W A R N I N G
!
!
Never perform service while the platform is elevated without first blocking the elevating assembly.
DO NOT stand in the elevating assembly area while deploying or storing the brace.

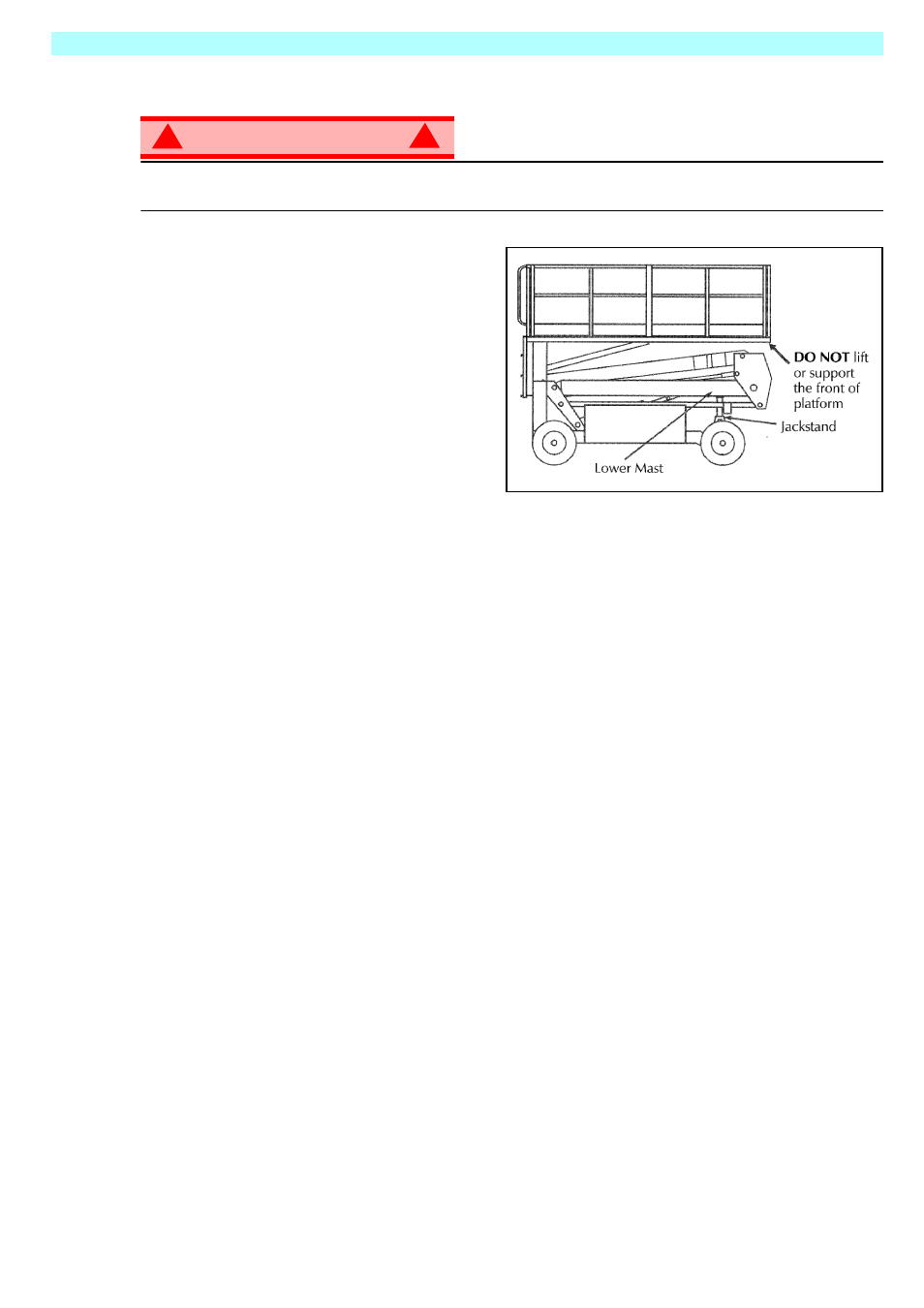

Figure 6:
Scissor Brace
B
L O CK I N G
T
H E
E
L EVA T I N G
A
S S E M BL Y
I
NSTALLATION
1.
Park the work platform on firm, level ground and
leave the engine running.
2.
Ensure the Chassis Emergency Stop Button is
twisted to the ON position.
3.
Press and hold the Chassis LIFT and ENABLE
buttons to elevate the platform approximately
305 mm (12 inches).
4.
Place a jackstand with a minimum rating of
1814 kg (4000 lbs.) between the lower mast and chassis, just behind the front axle.
5. Press and hold the Chassis DESCEND and ENABLE buttons to lower the platform until jackstand is
secured tightly between lower mast and Chassis.
R
EMOVAL
1.
Press and hold the Chassis LIFT and ENABLE buttons to elevate the platform
until the jackstand can
be removed.
2. Remove jackstand.
3.
Press and hold the Chassis DESCEND and ENABLE buttons to completely lower the platform.
