Specifications
SB85J Fixed Axle – 0112998 21
Specifications
Aerial Platform
Working height 27.7 m (90′ 11″)
Maximum platform height 25.8 m (84′ 11″)
Horizontal reach 23.4 m (76′ 8″)
Main boom
Articulation -13.5° to +70°
Extension 13.4 m (44′)
Jib boom
Articulation -70° to +70°
Turntable rotation 360° continuous
Turning radius, 4 wheel steer 2.4 m (7′ 10″)
Tail swing 1.9 m (78.5″)
Wheelbase 3 m (10′)
Ground clearance 33 cm (13″)
Maximum wheel load 8,770 kg (19,300 lbs)
Maximum ground pressure 6.9 kg/cm² (99 psi)
Weight, EVW
Approximate 17,100 kg (37,600 lbs)
Width 2.5 m (8′ 6″)
Stowed length 11.2 m (36′ 10″)
Stowed length, tucked stow 11.1 m (36′ 7.5″)
Stowed height 2.9 m (9′ 8″)
Platform
Dimensions
Standard Aluminum 76 cm x 244 cm (30″ x 92″)
Rated work load 227 kg (500 lb)
Optional Steel 76 cm x 152 cm (30″ x 60″)
Rated work load 272 kg (600 lb)
Optional Aluminum 76 cm x 152 cm (30″ x 60″)
Rated work load 227 kg (500 lb)
Rotation 170 degrees
Maximum number of occupants 2 people
Optional AC generator 110 V
Optional AC generator 220 V
Optional AC generator 220 V, 3-phase, 12 kw
Function Speed
Turntable rotation
Booms retracted 168 seconds minimum
Booms extended 228 seconds minimum
Main boom
Up 105 seconds minimum
Down 105 seconds minimum
Extend 80 to 90 seconds
Retract 60 to 70 seconds
Jib
Up 25 to 35 seconds
Down 25 to 35 seconds
Platform rotation 16 to 20 seconds
Drive
High, booms stowed 4.8 km/h (3.0 mph)
Mid, booms stowed 2.4 km/h (1.5 mph)
Low, booms raised/extended 1 km/h (0.6 mph)
Drive System
Standard Four wheel drive
Gradeability – theoretical 45%
Tires
Foam filled 15-625NHS, 16 ply
Electrical System
Voltage 12 V DC negative chassis ground
Source
Gas engine One -12 V 550 CCA battery
Diesel engine Two - 12 V 550 CCA batteries
Fluid recommended distilled water
Hydraulic System
Maximum pressure 19,305 kPa (2,800 psi)
Reservoir capacity 151 l (40 US gal)
System capacity 246 l (65 US gal)
Maximum operating temperature 93°C (200°F)
Hydraulic fluid recommended
Above -12°C (10°F) Mobil DTE-13M (ISO VG32)
Below -12°C (10°F) Mobil DTE-11M (ISO VG15)
Engine
Diesel Cummins B3.3
Diesel Deutz F4L-2011F
Gasoline and/or LPG General Motors 2.4
Fuel Tank Capacity
Gasoline or diesel 204 l (54 US gal)
LPG 19.7 kg (43.5 lbs)
Dual fuel gasoline 204 l (54 US gal)
Dual fuel LPG 19.7 kg (43.5 lbs)
Ambient Air Temperature Operating Range
Celsius -18°C to 43°C
Fahrenheit 0°F to 110°F
Maximum Wind Speed
Gust or steady 45 km/h (28 mph)
Vibration less than 2.5 m/sec 2
Sound Threshold below 100 dB(A)

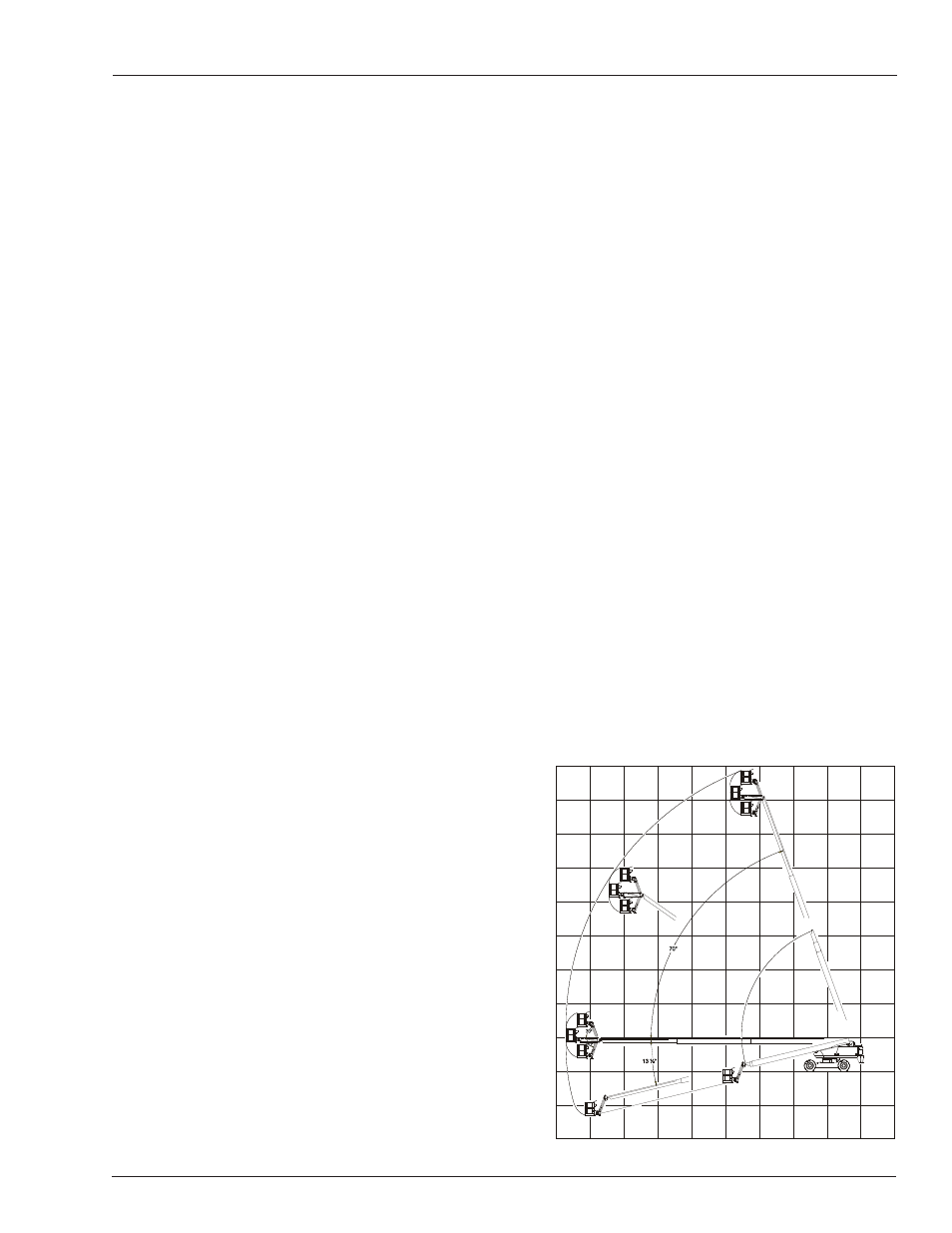

Working Envelope
0
3.0
(10)
9.1
(30)
6.1
(20)
3.0
(10)
12.2
(40)
15.2
(50)
18.3
(60)
21.3
(70)
24.4
(80)
Meters
(Feet)
6.1
(20)
0
3.0
(10)
9.1
(30)
12.2
(40)
3.0
(10)
15.2
(50)
18.3
(60)
21.3
(70)
24.4
(80)
27.4
(90)
