Page 9
4 O PERATION OF THE P LATFORM C ONTROLS
L OWER C ONTROL P ANEL

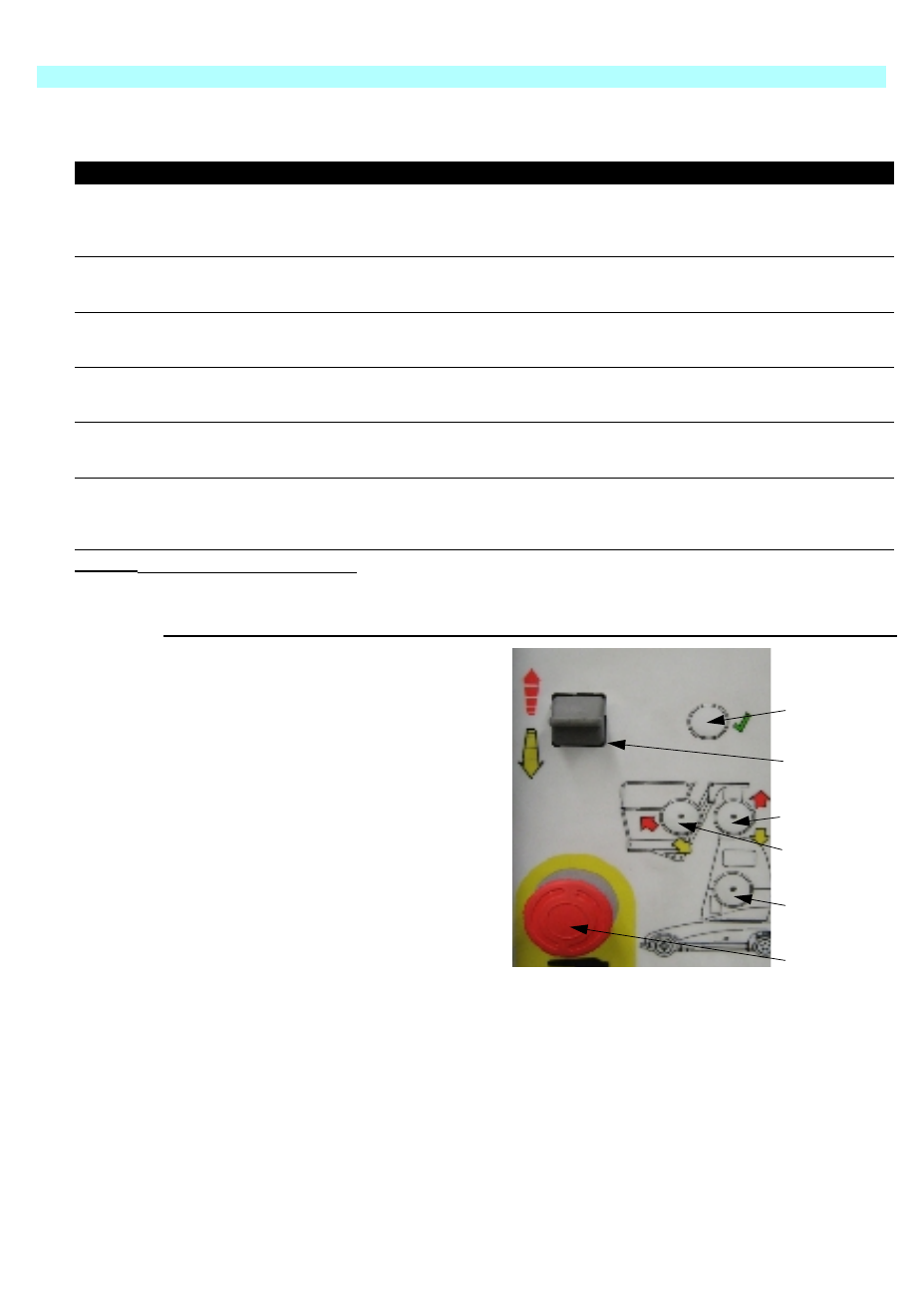

Figure 7: Lower Control Panel
T YPICAL O PERATION
Raising the mast.
• The Keyswitch located on the Upper Control box must be turned on.
• Select Mast by pressing the Mast button (3)
• Press and hold the enable button (1),
• Activate the Rocker Switch (2) in the direction required.
I TEMS N AMES F UNCTION
1 Enable Button
This button enables the Rocker Switch, and must be
held down during operation
2 Rocker Switch Activates the pre-selected operation, in either direction
3 Mast Select Button Pre-selects the Mast function.
4 Jib Select Button Pre-selects the Jib function.
5 Rotate Select Button Per-selects the Mast Rotate function.
6 Emergency Stop
Push this red button at any time to isolate power.
Turn clockwise to reset.
Table 2: Chassis Controls and Indicators
1. Enable button
2. Rocker switch
3. Mast selection button
4. Jib selection button
5. Rotate selection button
6. Emergency Stop
1
3
5
2
4
6
