Introduction
104044-001 AB62 Work Platform - Operator Manual Page 3
I NTRODUCTION
This manual covers the operation of the AB62 Articulated Boom. This manual must be stored on the
machine at all times.
G ENERAL D ESCRIPTION

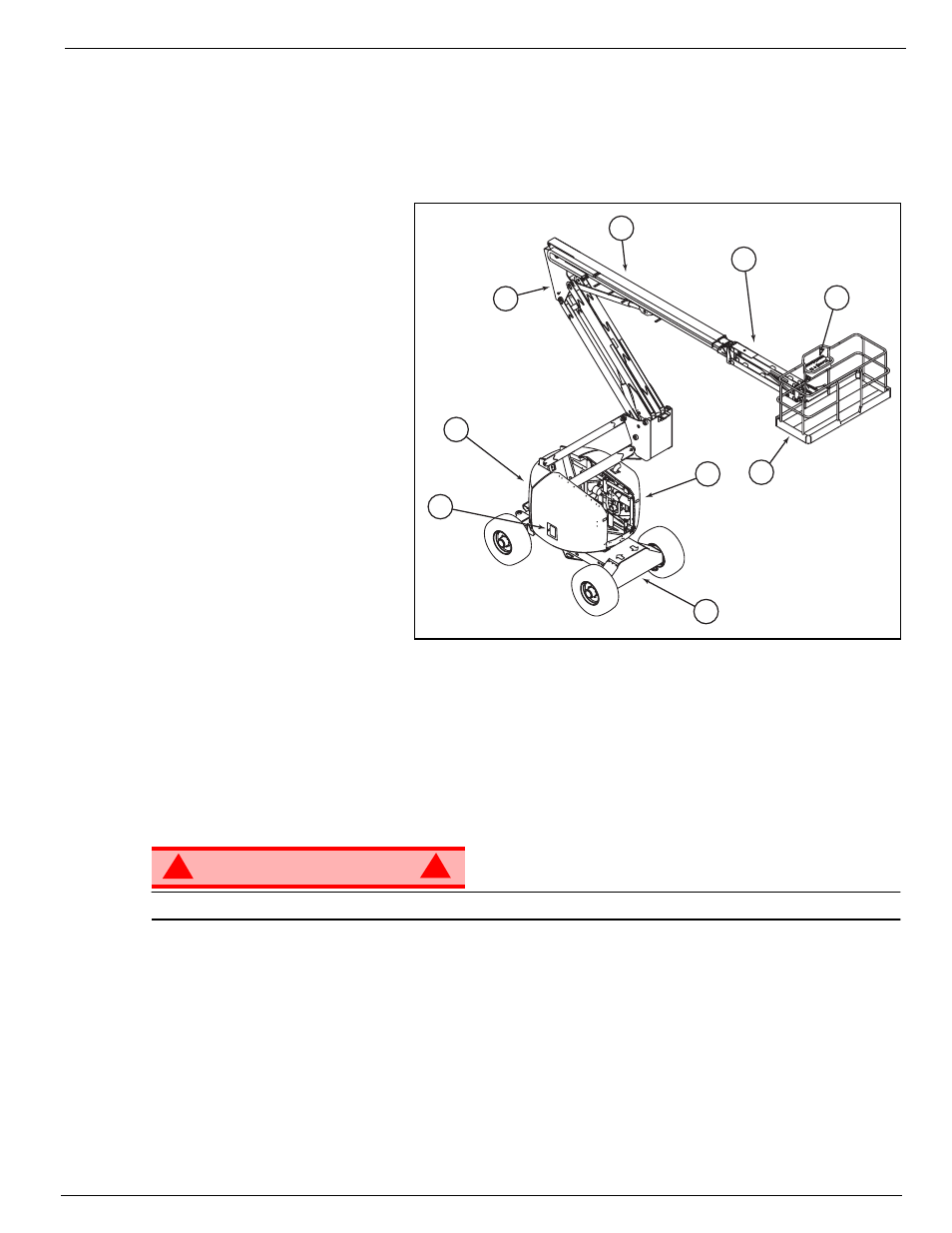

Figure 2: AB62 Work Platform
1. Platform
• The platform has a non-slip alu-
minum floor, guardrails with
midrail, toeboards, and an
entrance gate at the rear of the
platform.
2. Platform Controls
• The Platform Controller is
located at the front of the plat-
form cage. The foot switch must
be depressed to operate any
function from the platform.
3. Riser
• Used to raise the platform.
4. Boom
• Used to extend the platform.
5. Jib
• Used to level and rotate the
platform, and to raise or lower
the platform at the end of the
boom.
6. Power Module
• The Power Module contains the engine and the hydraulic pump.
7. Control Module
• The Control Module contains the fuel tank, hydraulic fluid tank and components, the hydraulic manifold,
the batteries, and the Chassis Controller.
8. Chassis Controls
9. Chassis
W A R N I N G ! !
DO NOT use the work platform without guardrails properly assembled and in place.
3 2
1
4
5
6
9
7
8
