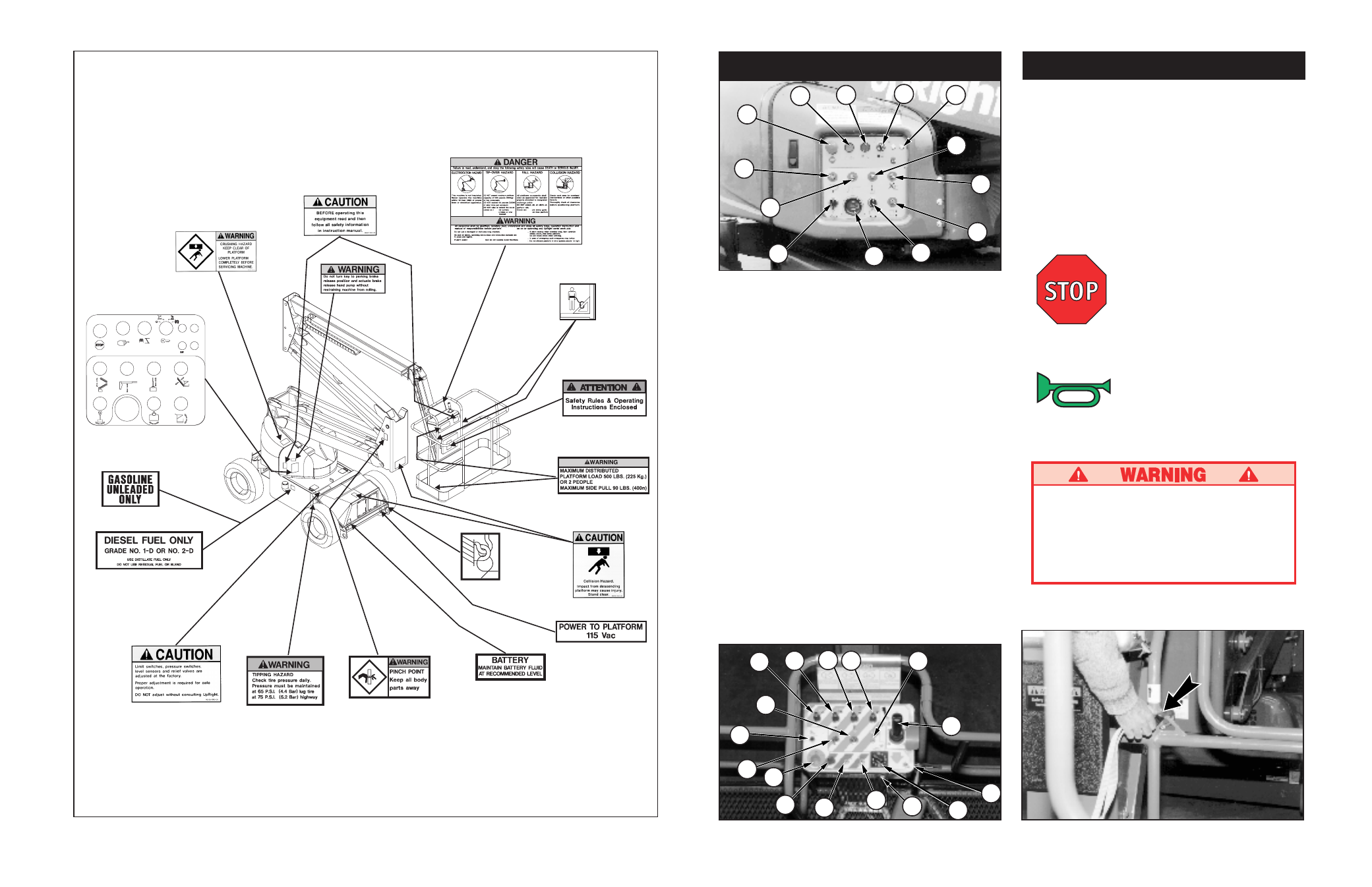

Figure 9: Label Identification
Note: Labels can be ordered by using Part Number located by each label.
For machines equipped with options, consult the Service Manual.
068587-000
1 REQUIRED
064166-000
1 REQUIRED
(GASOLINE MODEL ONLY)
068641-000
1 REQUIRED
066544-000
3 REQUIRED
066568-000
2 REQUIRED
068633-000
1 REQUIRED
068635-000
2 REQUIRED
010076-001
1 REQUIRED
062557-012
2 REQUIRED
066556-000
2 REQUIRED
068635-000
4 REQUIRED
068639-000
1 REQUIRED
005221-000
1 REQUIRED
066553-004
5 REQUIRED 062562-001
2 REQUIRED
066555-000
2 REQUIRED
027898-000
1 REQUIRED
(DIESEL MODEL ONLY)
10
Controls and Indicators
Figure 3: Typical Fall Restraint Anchorage Point
Operation
Before operating work platform insure that:
Pre-operation and safety inspection has been
completed, and any discrepancies have been
corrected.
The operator has been thoroughly trained on
the operation of the machine.
The work area is clear of all obstructions, holes,
drop-offs, or persons in the route of travel.
The surface is capable of supporting wheel loads.
Refer to figures one and two for control locations.
Emergency Stop
At any time during operation, press the emergency
stop button to stop all functions in an emergency.
Service Horn
At any time during operation, press the service horn
button to sound an audible warning if necessary.
Always wear an approved fall restraint
properly attached to designated platform
anchorage point when driving or elevating
the machine (see figure 3).
Attach only one fall restraint to each anchor-
age point.
Figure 2: Platform Controls
2
1
3 4 5
6
7
8
9
11
12
13
Figure 1: Chassis Controls
10
15
9
5
6 7
19
8
1
14
11
3
17
12
10
Note: The following list corresponds to the
numbered items in figures one and two.
1. Emergency stop.
2. Engine start.
3. Choke / glow plug button.
4. Keyswitch
5. Control fuses.
6. Riser control.
7. Upper boom control.
8. Boom extension control.
9. Jib control.
10.Turret rotation control.
11.Platform rotation control.
12.Platform level control.
13.Hourmeter.
14.Service horn button.
15.Drive control handle.
16.Function speed control.
17.Fuel selector.
18.Foot switch (located on platform floor).
19.Out of level indicator.
3
16
4
