6.1.6 Setting up the traverse jacks with fixed anchor pin

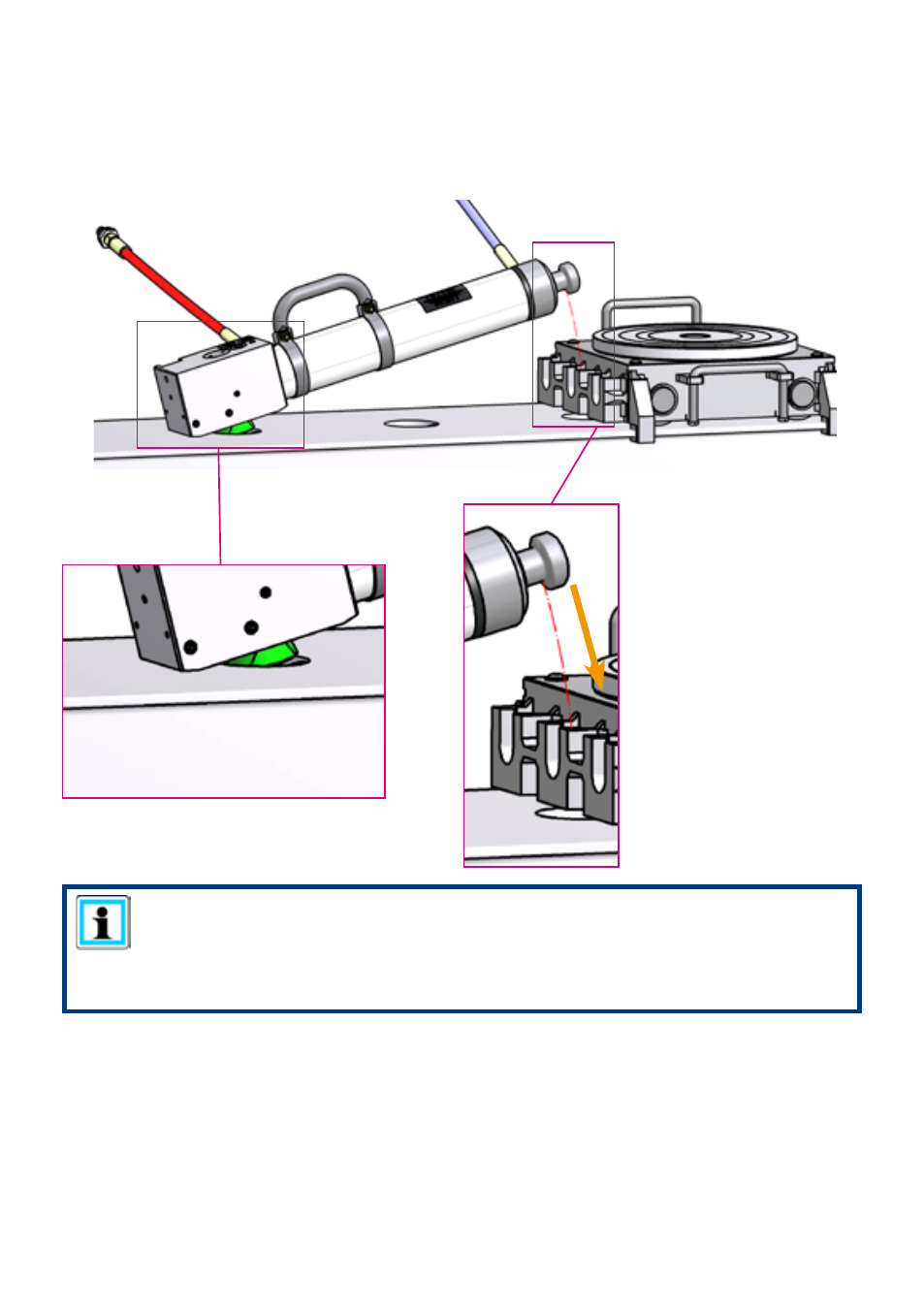

Fit the traverse jack with the fixed anchor pin in one of the matching mounting points in the
rerailing bridge and attach the piston rod head in the centre retainer on the roller carriage
(see illustration below). You may have to move the roller carriage a little in order to attach
the jack head.
NOTE:
Bear in mind that the traversing range of the jack is limited by the stroke of the
piston!
This means that the DUO traversing system must be set up such that the
stroke of the jack piston is sufficient for the required traversing range!
