Lukas P 600 OB - Manual (Page 10)

10
8.2.3 Connection between pump and rescue tool
The hydraulic hoses are connected free of confusion via mono-coupling halves (male and female)
to the hydraulic pump.
Before coupling, remove dust protection caps, then connect male and female, and turn the locking
sleeve of the female to direction „1“ until the locking sleeve locks into place. The connection is now
in place and secure. Decoupling is by turning the locking sleeve to direction „0“.
The equipment can also be coupled under pressure provided the connected equipment is not
activated.
REMARK:
We recommend coupling the coupling halves in a pressureless state, when working in areas
with low ambient temperature and the usage of extension hose assemblies / hose reels,
otherwise decoupling could need very high expenditure of force.
To protect them from dust, the accompanying dust protection caps must be put back on.
CAUTION!
The mono-couplings may not be screwed off the hose assemblies and / or the hose assemblies
be confused!
9 Operation
9.1 Warning:
Due to the risk of electric sparks the pump unit must not be used in explosive atmosphere !
Under extreme operating conditions it may happen that metal parts of the pump are becoming very
hot ! Do not touch metal parts due to the risk of burnings !

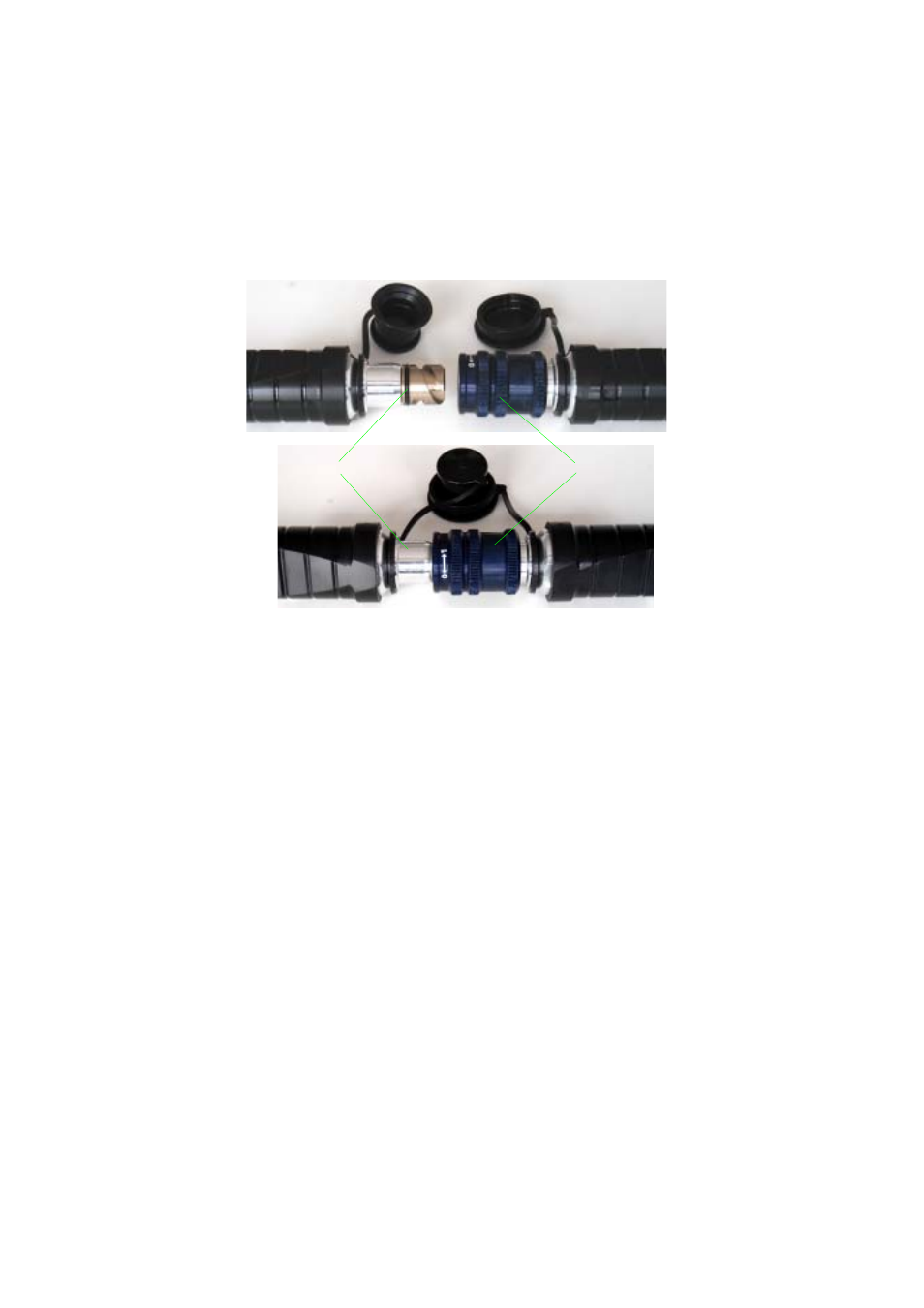

mono-coupling
halve (male) mono-coupling
halve (female)
