Do not reach between the spreader arms!
10.3 Pulling
- The chains may only be used for pulling with the rescue device.
- When pulling using a chain, make sure that bolt and hook are properly accommodated, so that
the chain does not slip off..
- Use only flawless chain sets.
- Have an expert check the chains at least once a year.
Refer to the separate operating manuals

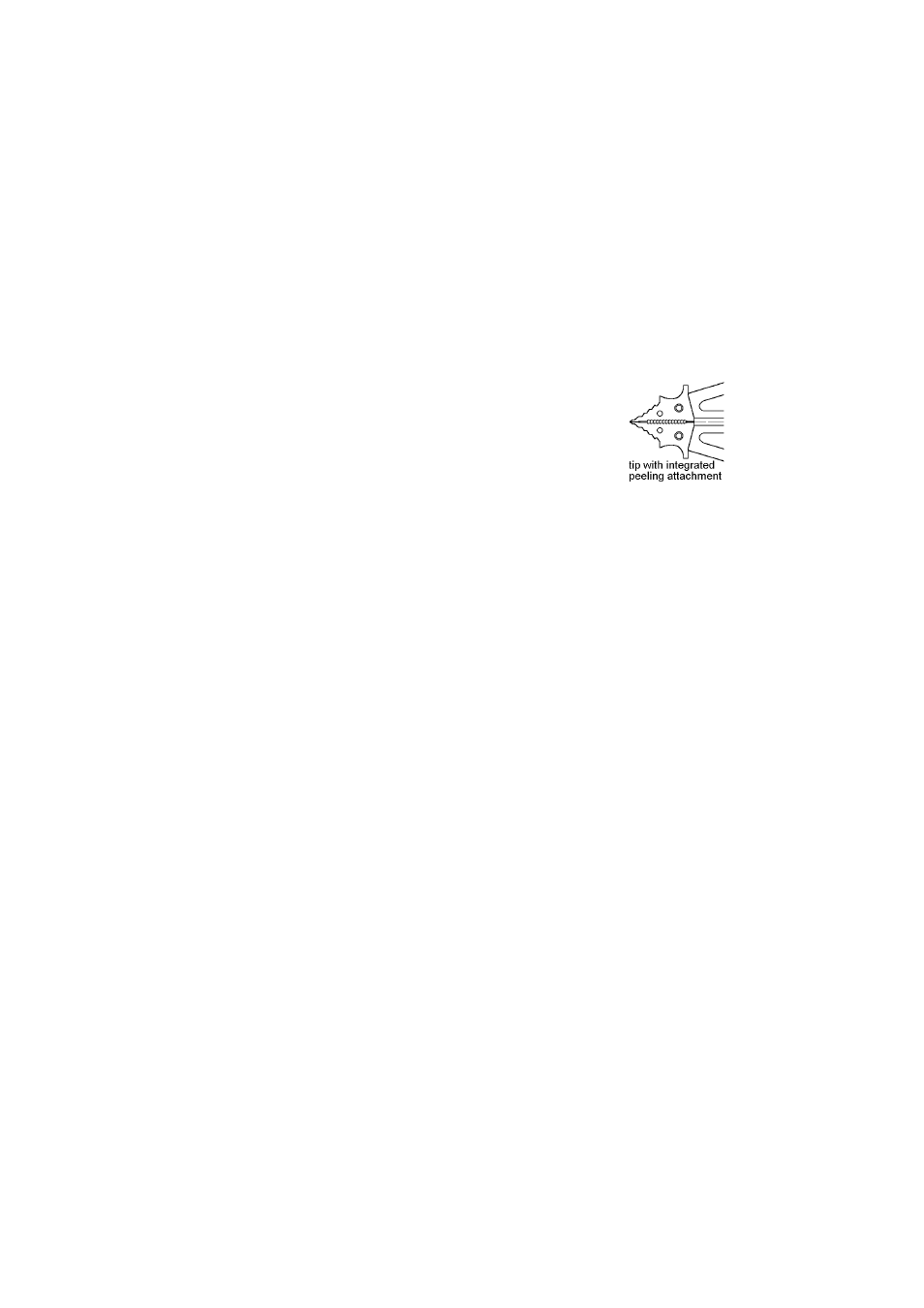

10.4 Peeling
The integrated peeling attachment at the tips LSP 40 EN, LSP 60 EN,
LSP 60 F, LSP 80 EN and LSP 100 may be used to peel open steel
sheets up to a gauge of t (see 15.1) If unusually tough material is
processed, the tips may jerk away uncontrollably.
Watch your safety clearance!
10.5 Squeezing
In general, it is only allowed to squeeze in the area of the tips. For the spreader LSP 40B, LSP 40EN
a squeezing device is offered as an accessory (Ref. no. 84150/9150).
The squeezing process is executed between the spreader arms with this device (see instructions
84150/9150-82).
11 Dismantling of the device / Stop after operation
11.1 Spreader unit
After operation, close the spreader arms to a tip distance of a few mm. This relaxes the unit
hydraulically and mechanically.
11.2 Hydraulic power pack
Stop the hydraulic power pack after operation.
11.3 Hoses
Uncouple the pressure hose first and the blue return hose second as described under 8.2. Put dust
caps over the couplings.
12 Maintenance
12.1 Spreader unit
After each operation a visual check has to be accomplished, at least once per annum. Every 3
years or if there are doubts about security or reliability, an additional funtional test has to be
accomplished.
(clean them first if necessary)
Visual inspection
Spreader arms
• Spreader arms and tips without fissures
• bolt and securing rings of the spreader arms are in the right position and orderly
• Corrugation of the tips clean and edged without fissures
