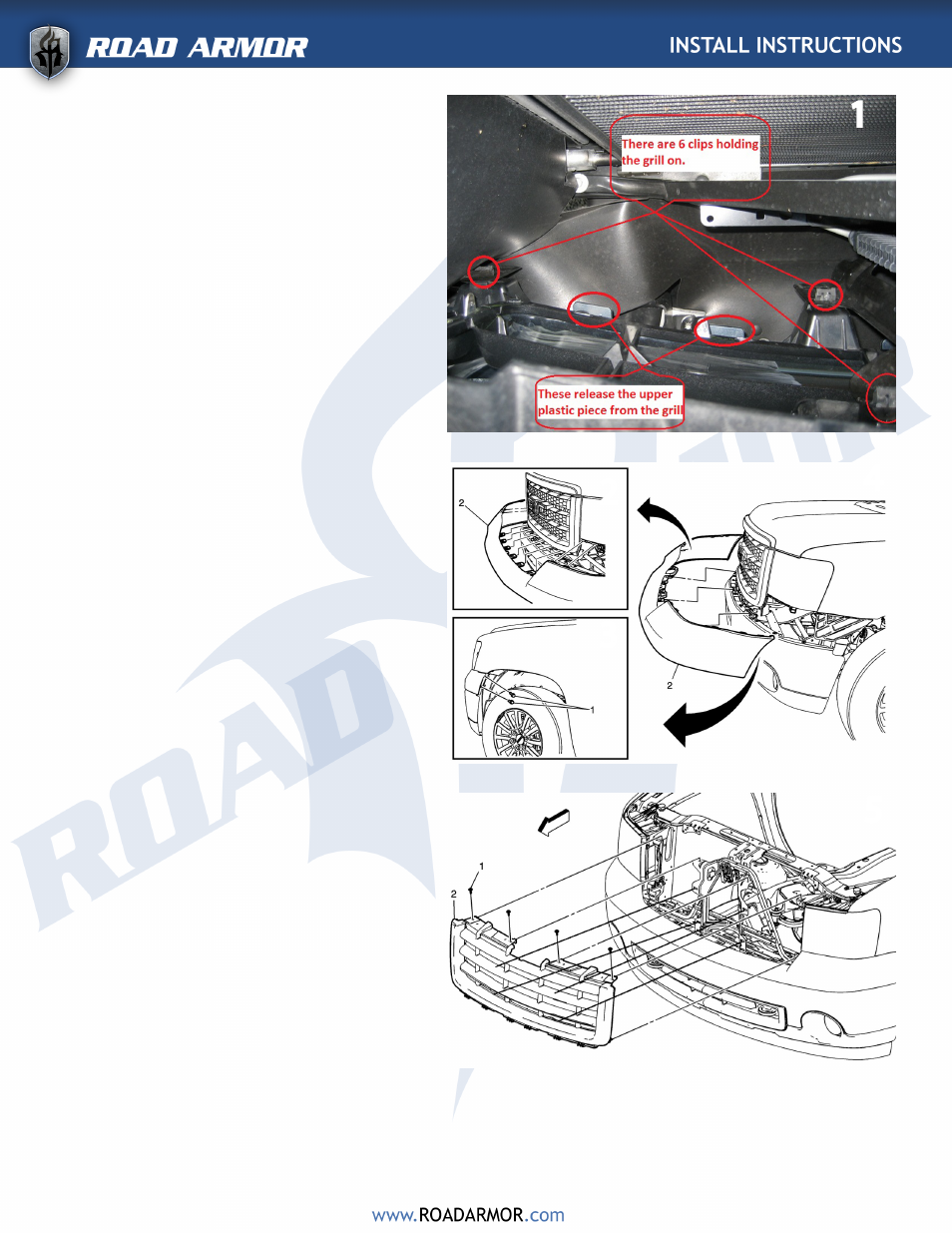

How to Remove Front Fascia.

• Remove the two bolts per side that

hold the fascia in place from the in-

side edge of the wheel well.

Picture 3

• Under the headlights there are clips

but they will come free when remov-

ing the fascia.

• In the center, where the fascia at-

taches to the grill there are plastic

clips that you just push out of the

grill.

Picture 1

• Remove the Fascia by pulling out on

the outside corners and tilting up.

Picture 4

How to Remove Grill and Trim it.

• Disengage the six clips on the grille by

using a pair of flat-bladed pliers while

pinching the retainer tabs securing

the grille.

Picture 1

• Separate the grille from the front end

by pulling the grille outward away from

the vehicle. Keep all the clips, you will be

reusing them.

Picture 5

• Once removed you will need the trim

both sides of the grille as shown by a red

line in picture 6. Make sure to not cut off

the retainer clips.

Pictures 6

• Reinstall the grille using OEM hardware.

Picture 7
