Apple Xserve (Early 2008) DIY Procedure for Drive Interconnect Backplane User Manual
Page 6
Xserve (Late 2006/Early 2008) Drive Interconnect Backplane Replacement Instructions
6
Drive Interconnect Backplane

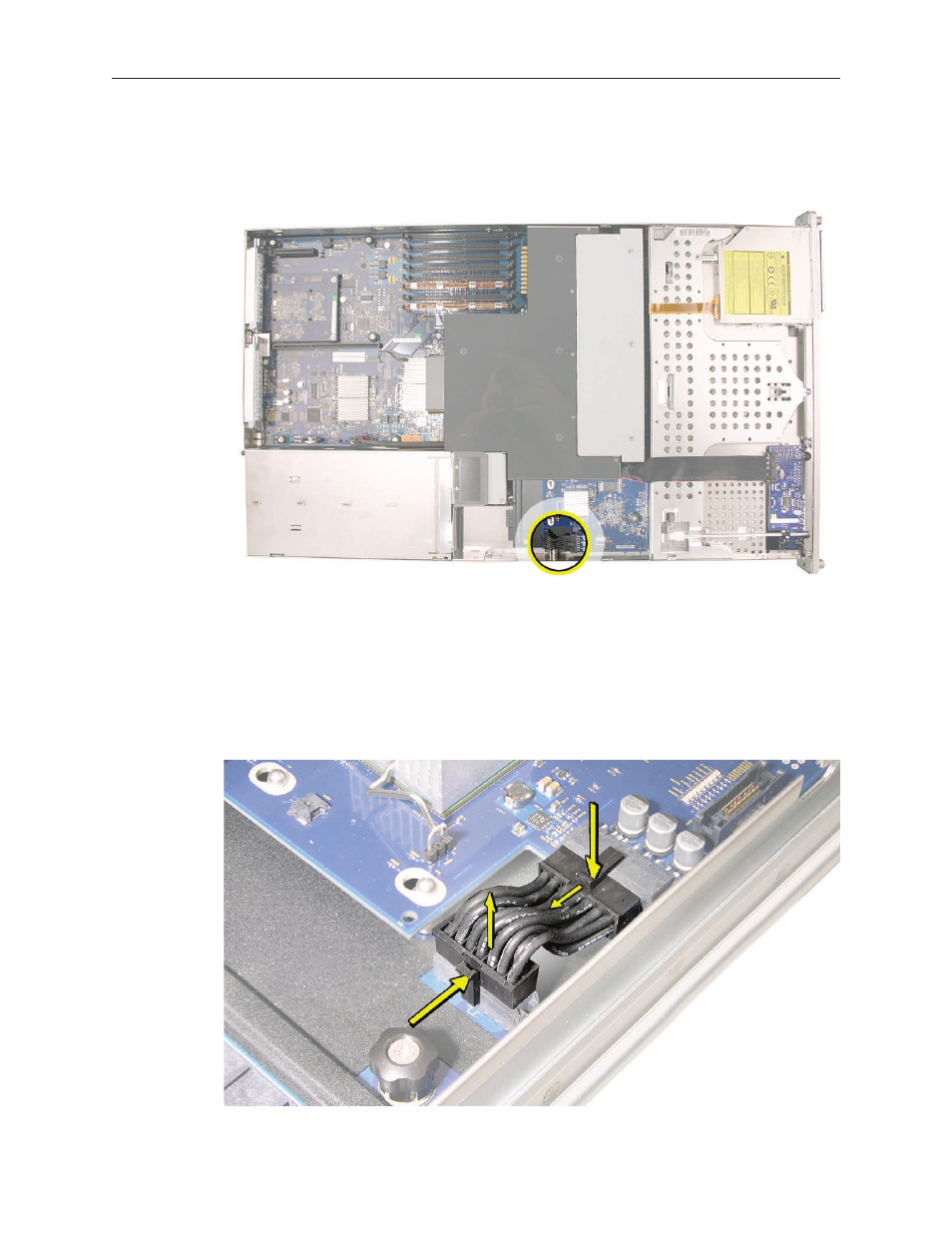

Locate the power distribution board cable.
1.
Disconnect the power distribution board cable from the drive interconnect backplane and
2.
the power distribution board. Remove the cable from the enclosure.
Caution: The power distribution board cable connectors are very tight and can be difficult to
disconnect. You may want to use a small flatblade screwdriver to gently yet firmly pry
outwards on the cable connector while depressing the cable connector latch with your
thumb and forefinger to separate the connectors.
