Connecting to Propane Gas

Position the cylinder in the opening in the bottom of the cart and secure with the cylinder retaining bracket. Figure

11.

The pressure regulator has an outlet pressure of not more than eleven (11") inches water column. It must be connected

to the Propane gas cylinder’s female valve outlet before the grill can be operated.

Caution: Operation of a Propane gas grill without the pressure regulator and hose assembly will cause

gas leaks which could lead to fire or explosion, resulting in property damage or personal injury.

The pressure regulator’s fitting must remain clean and free of nicks and scratches. A dirty, nicked or scratched fitting

can cause a gas leak, resulting in an explosion or fire. Use only genuine Broilmaster

®

replacement parts unless other-

wise specified by the manufacturer.

Pressure Regulator and Hose Assembly

P

ROPANE

G

AS

G

RILLS

Attach the pressure regulator to the Propane gas cyl-

inder’s valve using the plastic handwheel. Tighten in

a clockwise motion to achieve a gas tight seal. Figure

12.
Caution: Do not use a wrench or any other tool to

tighten. Use of a wrench or other tool will damage

the plastic handwheel.
To disconnect the Propane gas cylinder, turn OFF the

cylinder’s valve and the grill’s control valve. Remove

the regulator by turning the plastic handwheel counter-

clockwise.

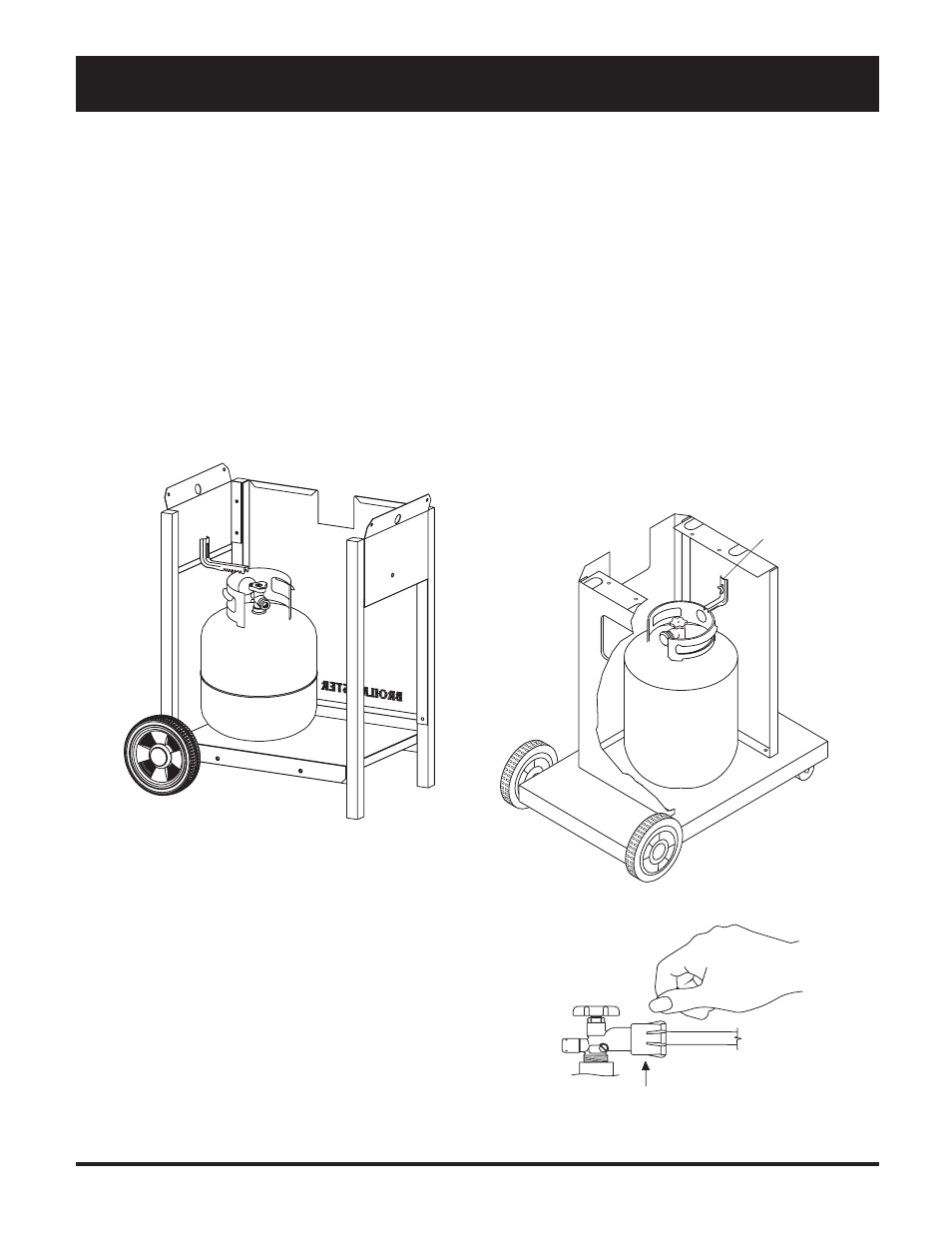

Figure 11

Cylinder

Retaini

ng

Bracket

Cylinder

Retaining

Bracket

Clockwise

Clockwise
