B100911-3-0806

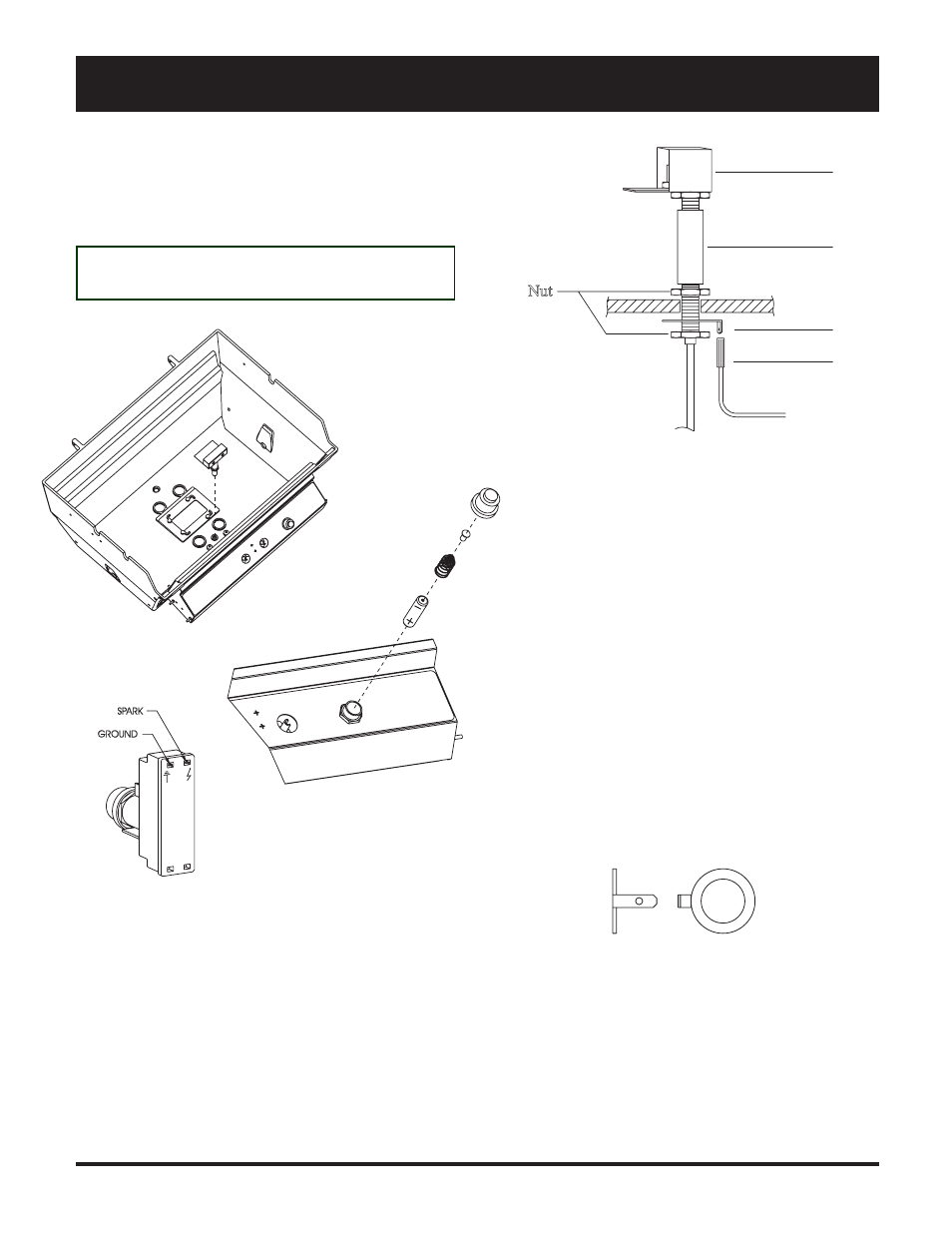

Ignitor Assembly

Slide the collector box spacer (26) and nut (pro-

vided on assembly) onto the collector box shaft

and tighten. Figure 1.
Note: Peel protective film from control panel label

before installing ignitor.

G

RILL

A

SSEMBLY

Installing the Ignitor

Caution: Do not cut or damage ignitor

wire.

Carefully thread the end of the ignitor wire through

the center hole in the grill bottom. Slide the ground

lug (25) over the ignitor wire and fasten with nut

provided.
Attach one end of the ground wire (24) to the termi-

nal on the rear of the electronic ignitor. Attach the

remaining end to the ground lug. Figures 1 and 2.

Attach ignitor wire to the spark terminal on the rear

of the electronic ignitor.

Nut

25

24

21

19

Figure 1

24

Figure 2

25

27

26

25

24
