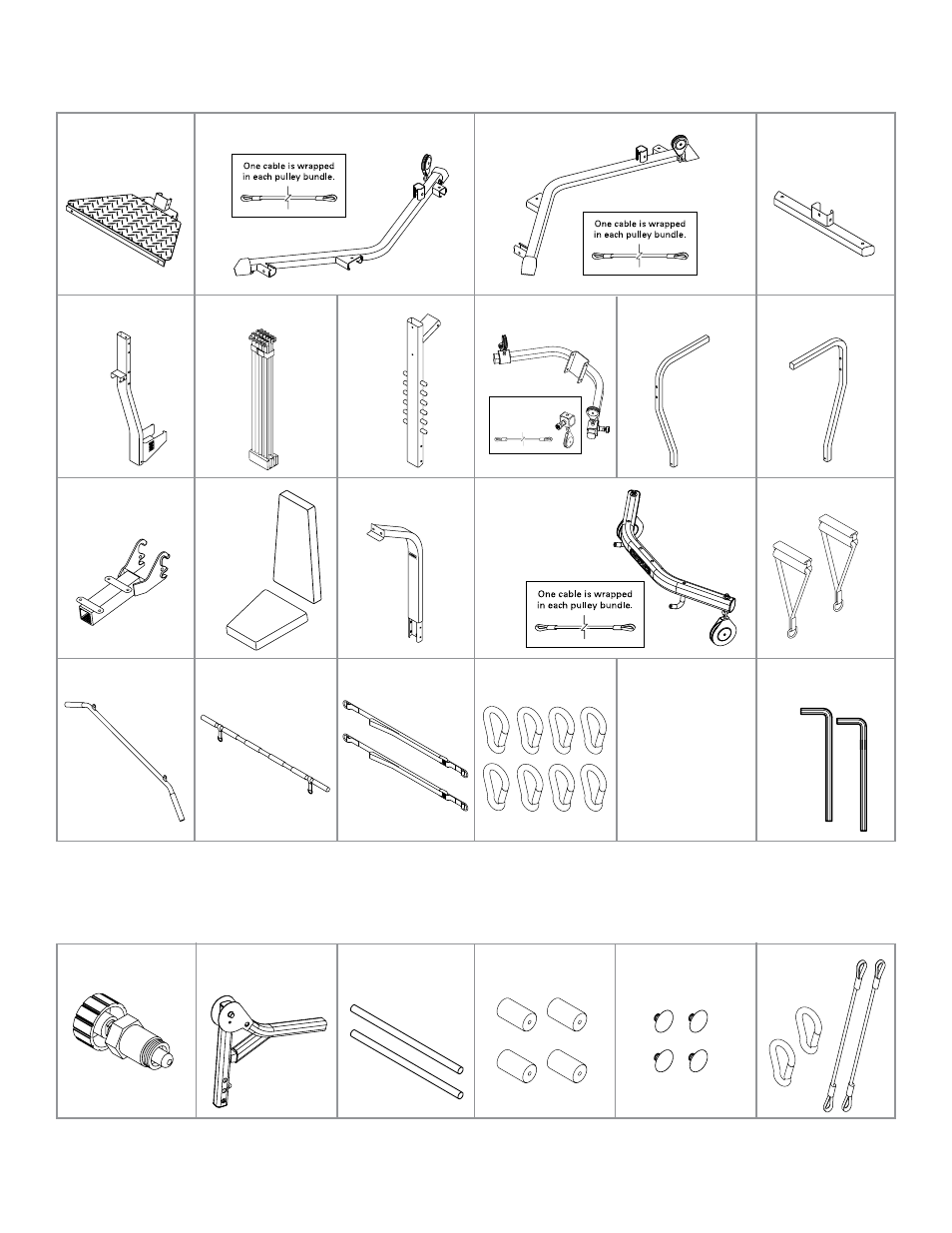

Bowflex.Xceed

™

.Plus.Assembly.Manual

Lock.Knob

.Leg.Extension.

Backbone

2.Chrome.

Tubes.(3/4")

4..Foam.Rollers

4..End.Caps.(3/4

"

)

2.Snap.Hooks..

&.2.Cables

50".Bent.Lat.Bar

Squat.Bar

2..Squat.Straps

8..Snap.Hooks

.....

. .

.

...tools Included:

.Seat.Backbone

Seat.Back

Seat

Bottom

.Upper.Lat.Tower

Lat.Cross.Bar.with.

Pulleys.

2..Hand.Grips

Lower.Lat.Tower.

Frame.

Rod.Box.w/.Rods

Seat..

Support..

Rail

Squat.Pulley.Frame

Left.Pulley.Arm

Right.Pulley.Arm

Base.Frame

.Left.Frame.Rail

.

Right.Frame.Rail

Rear.Cross..

Member.

NOTE:.Specifications.Subject.to.Change.Without.Notice

Leg Extension Parts

NOTE:.Specifications.Subject.to.Change.Without.Notice

Cable Pulley Slider and
Cable are included
with pulley.

7/32”
3/16”

Parts Reference Guide

2.Hex.Wrenches
