Bowflex.Xceed ™ .Plus.Assembly.Manual

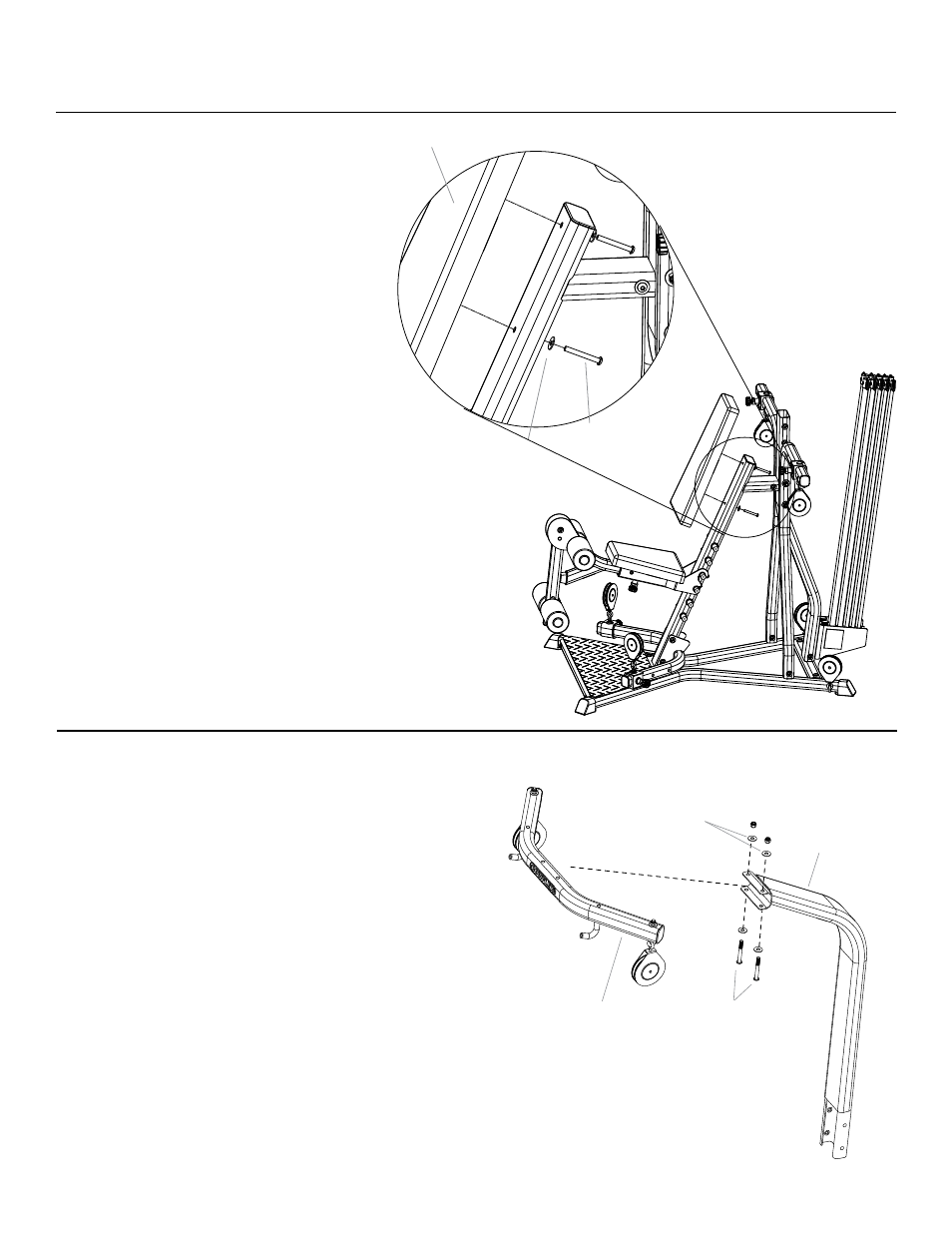

Step 14 ..Upper.Lat.Tower.Assembly
parts:
.•...Upper.Lat.Tower
•...Lat.Cross.Bar
Hardware:
•...2.Button.Head.Screws.(3/8".X.3")
.•...2.Washers.(3/8")
•...2.Nylock.Nuts.(3/8”)
tool: 7/32".Hex.Wrench.and.Adjustable.Wrench
14-1 ...Align.the.two.holes.on.the.Lat.Cross.Bar.with.
those.on.the.Upper.Lat.Tower.as.shown ..
14-2 ...Secure.using.washers.and.screws.as.shown ..
Step 13 ..Install.Seat.Back.Pad
note: The.back.of.the.Seat.Back.Pad.has.two.
pairs.of.holes ..Select.the.appropriate..
set.based.on.your.height .
parts:
. •...Seat.Back.Pad
.. •...Main.Assembly
Hardware:
•...2.Button.Head.Screws.(5/16".X.2.1/2")
•...2.Washers.(5/16")
tool: 3/16".Hex.Wrench
13-1 ...Position.Seat.Back.Pad.against.the..
Seat.Support.Rail.and.align.the..
screw.holes.for.your.height.with..
those.on.the.Seat.Support.Rail .
13-2 ...Secure.Seat.Back.Pad.to.the.Seat.
Support.Rail.using.screws.and..
washers.as.shown .
Button.Head.
Screws
Flat.Washers
Lat.Cross.Bar
Upper.Lat.Tower
Seat.Back.Pad
Flat.
Washers
Button.
Head.
Screws
