JB Conversions 16-1205 HD Standard Length SYE Kit Using OEM Housing User Manual

Page 14

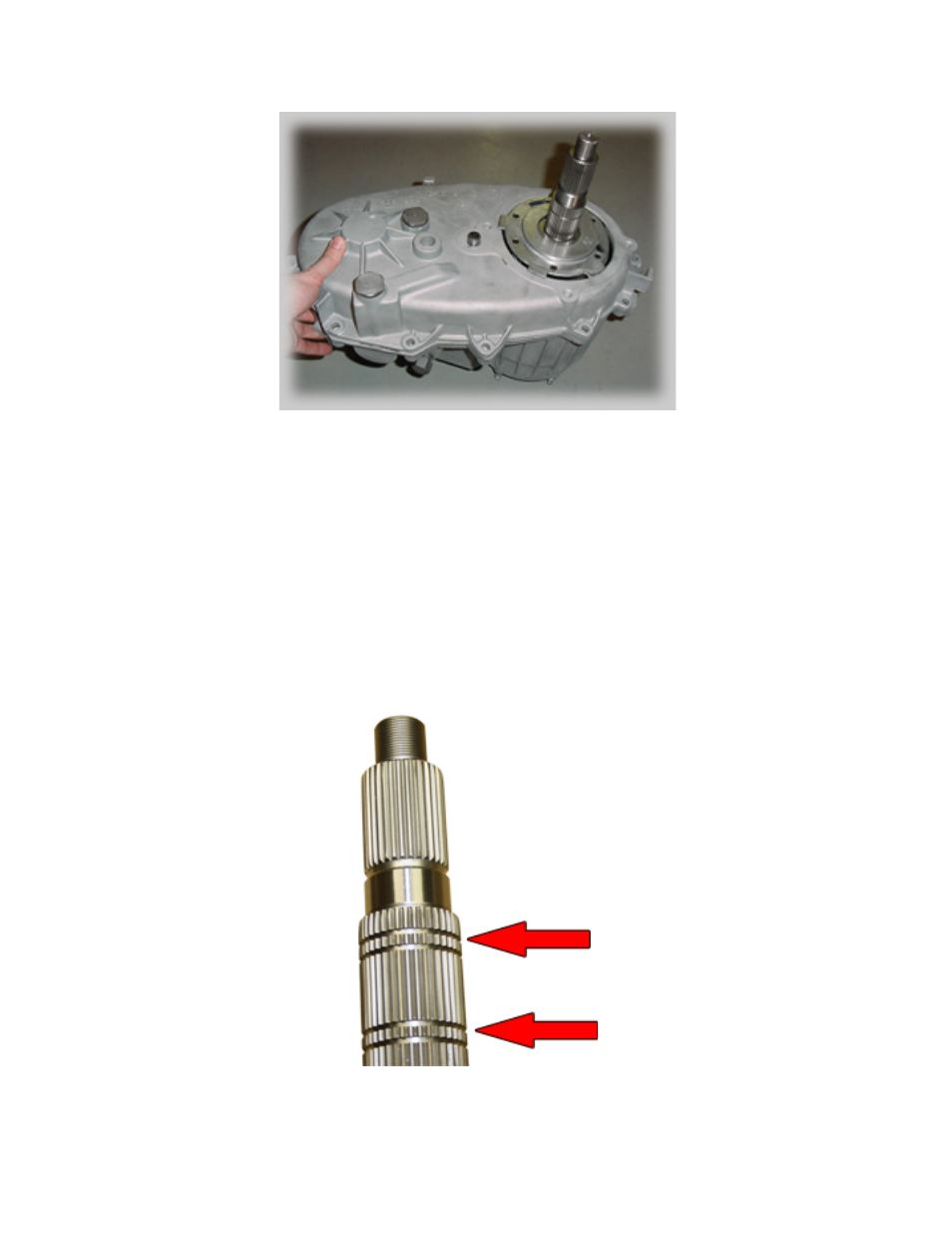

FIG: 27

25) Install the 10mm bolts to hold the two case halves together.

26) Visually verify that the pump pickup tube is in place and has not
become disconnected from the pump housing.

27) Install the small retaining ring onto the second to lowest groove
on the shaft above the pump (Fig.28). Install the tone wheel onto the

mainshaft followed by the second snap ring onto the top groove
(threaded end).

FIG: 28
