JB Conversions 16-1206 HD Super Short SYE Kit for the NP231C or NP233C - Manual (Page 9)

9

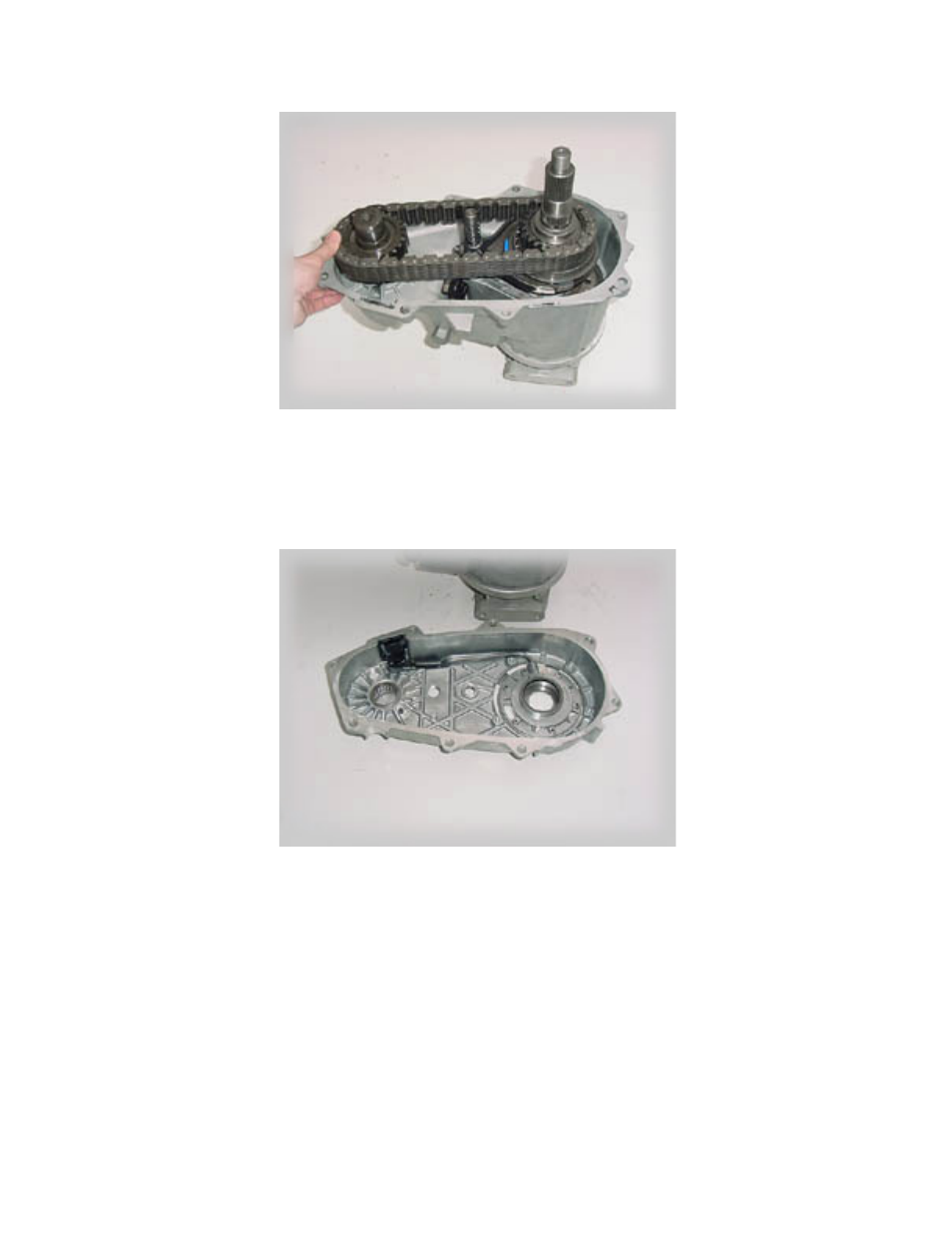

FIG: 14
19) Position the pump and pickup tube assembly into the rear case
half as shown (Fig.15).
FIG: 15
20) Install the rear case/pump onto the front case half as shown
(Fig.16a) and installl the 10mm bolts (Fig.16b).
