INSTALLING THE SLIM LINE® INSTRUMENT SERIES PAGE 10 OF 14
REV B
JPI

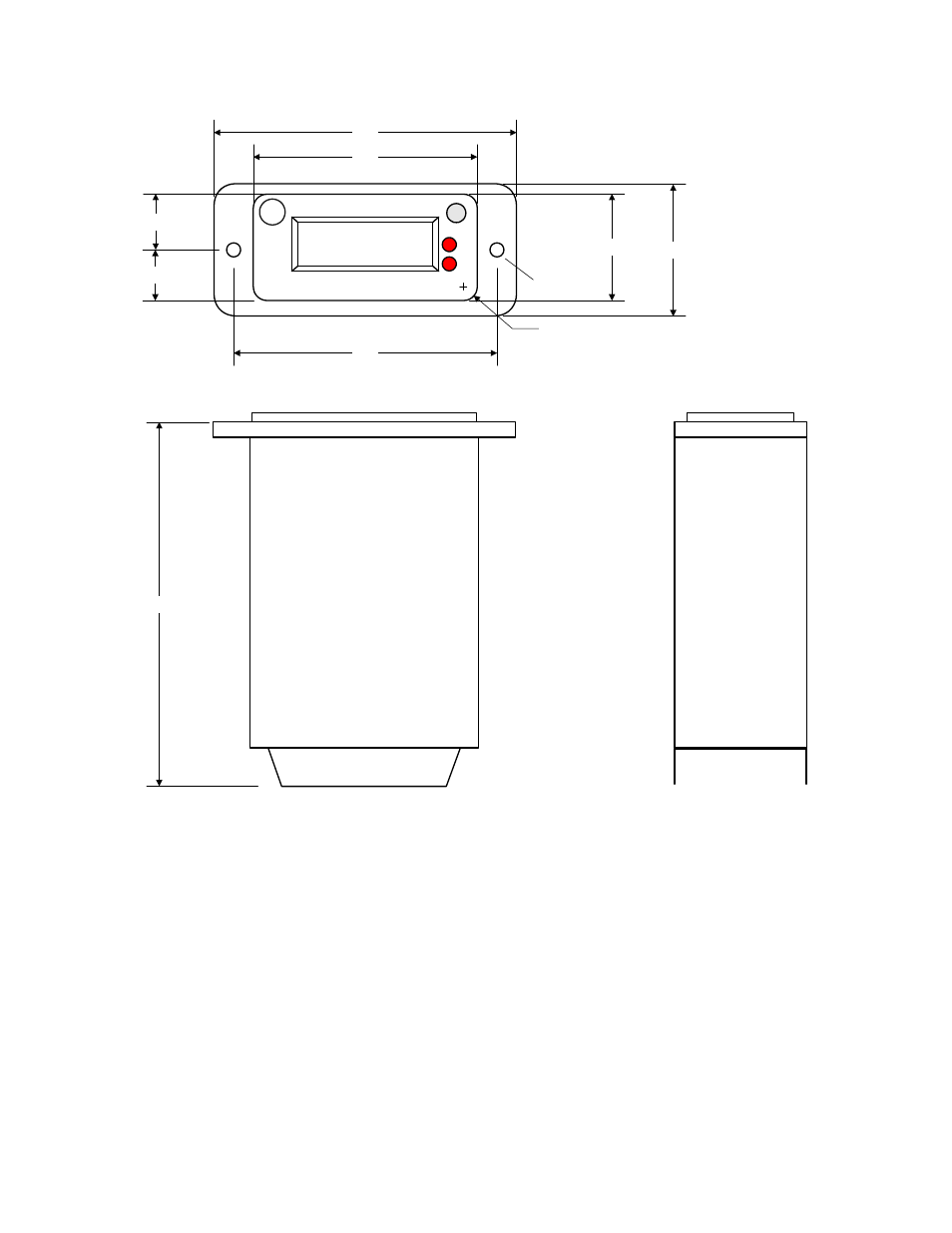

2.00
2.70
2.35
0.50
0.45
R0.125
1.18
6-32 2 plcs
0.95 ref
SIDE VIEW
3.25
TOP VIEW
The conditions and test required for TSO approval of this article are minimum performance standards. It is the
responsibility of those desiring to install this article either on or within a specific type or class of aircraft to
determine that the aircraft installation conditions are within the TSO standards.
23) Weight and Balance Data
Weights below do not include customer supplied fittings, hoses, and other hardware.
TSO C43b, Slim Line instrument
3.0 oz. / 0.19 lbs.
MP, Oil P option 1.5 oz. / 0.094 lbs.
EGT probe M-111, IAT, CRB, TIT, OAT, OIL 2.0 oz. each / 0.125 lbs. each
CHT probe 5050T 1.5 oz. each / 0.094 lbs.
Oil P, Fuel P, Boom P sensor 4.0 oz. / 0.250 lbs.
Current shunt 3.5 oz. / 0.22 lbs.
