Rock-Slide Engineering RAPTOR – SPARE TIRE CARRIER - Manual (Page 2)

Installation Instruction RSEI 134

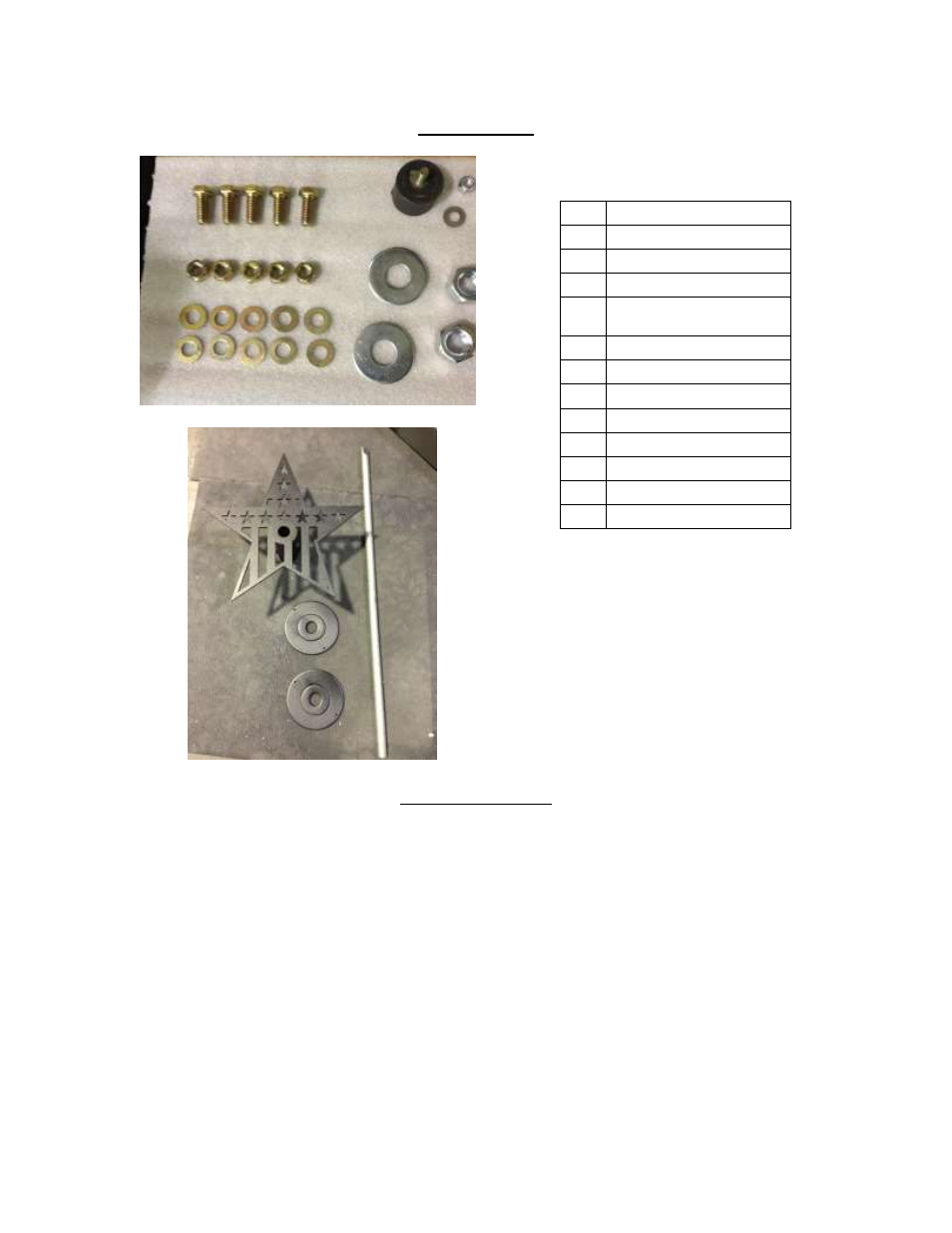

PARTS LIST
QTY DESCRIPTION
1 Carrier Body
1 Front Legs
1 Back Legs
1
Rubber Bump Stop, nut,
bolt
1 RSE Star
1 Threaded Post
2 ¾” washers
2 ¾” nuts
5 7/16” bolts
10 7/16” washers
5 7/16 nuts
2 Large painted washers
*If any parts listed are missing or damaged
please call Rock-Slide Engineering @
435-752-4580 prior to installation
INSTALLATION
1. Attach the two sets of legs to the spare tire carrier body using the 7/16”
bolts, nuts and washers.
2. Screw rubber bump stop into hole at narrow end of the carrier with the nut
and washer. (this protects the bed when weight of spare tire is on carrier.)
