GFB DV+ (part T9355) User Manual

Page 3

background image

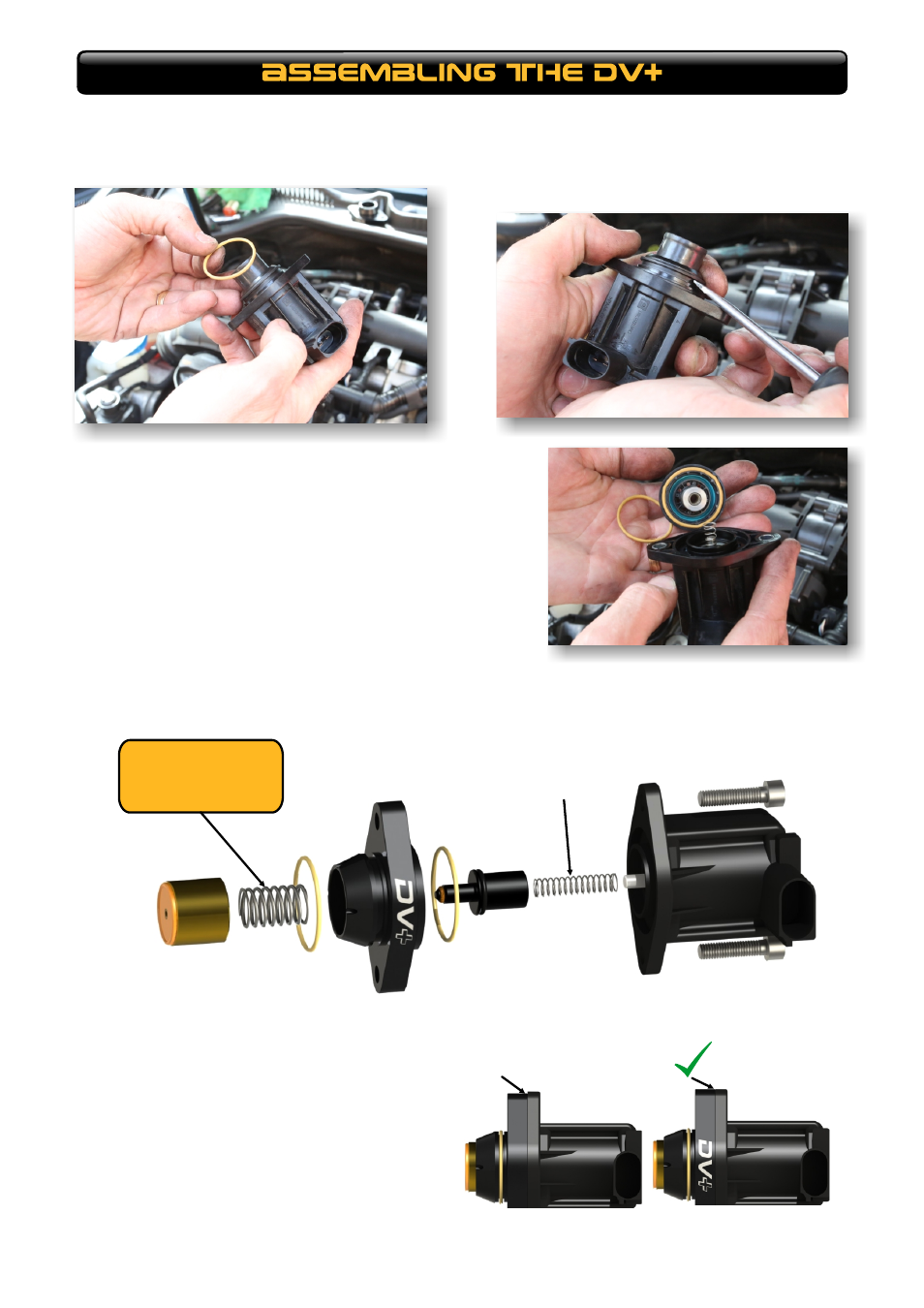

1. Remove the yellow o-ring from the factory
diverter.

2. Using a flat screwdriver in the o-ring groove,
carefully pry the piston surround from the
solenoid body.

3. Remove the second yellow o-ring and keep it handy, as
these will be used in the DV+ assembly.

Remove all other parts including the spring - all you need for
the DV+ installation is the bare solenoid body and the two
yellow o-rings.

Main piston spring:

Please see notes on

the next page

Note that the bolt holes are NOT
SYMMETRICAL. When you assemble the DV+
body onto the solenoid body, check the
alignment of the holes - if they do not line up
properly, rotate the DV+ body 180 degrees
and check that they line up correctly before
installing on the car.

X

4. Assemble the GFB parts onto the factory solenoid coil
as shown in the exploded view below, making sure to
use the GFB-supplied plunger spring, and the two
yellow factory o-rings.

4. Assemble the GFB parts onto the factory solenoid body as shown in the exploded view below, making
sure to use the GFB-supplied plunger spring, and the two yellow factory o-rings.

GFB-supplied

plunger spring
