6
7) Place an empty case under the Powder Safeguard Die and cycle the
press until resistance is met. The press should not cycle on an empty
case. Remove case from press before proceeding.
8) Place a double-charged case under the Powder Safeguard Die and cycle
the press until resistance is met. The press should not cycle on a double
powder charged case. Remove case from press before proceeding.
9) If using with the Control Panel, locate the Powder Charge Detect lead on
the wire harness, and plug it into the sensor on the Powder Safeguard Die.
10) Verify the wire harness is plugged in correctly by activating the sensor
and verifying the corresponding light turns from green to red on the
Control Panel.
OPERATION
• Under normal operation, the press should cycle freely when the correct
charge is dropped into the case.
NOTE: The Powder Safeguard Die is designed to detect no-charge or
double-charge cases only. It will not detect slight changes to the powder
charge. Periodically check the powder charge weight on a quality scale.
• If press locks up, remove case from press and verify all stations.
If the shell plate cycled before locking up, each case will need to be
moved back one station before proceeding.
PRIMER LEVEL CHECK SETUP (Deluxe model only)

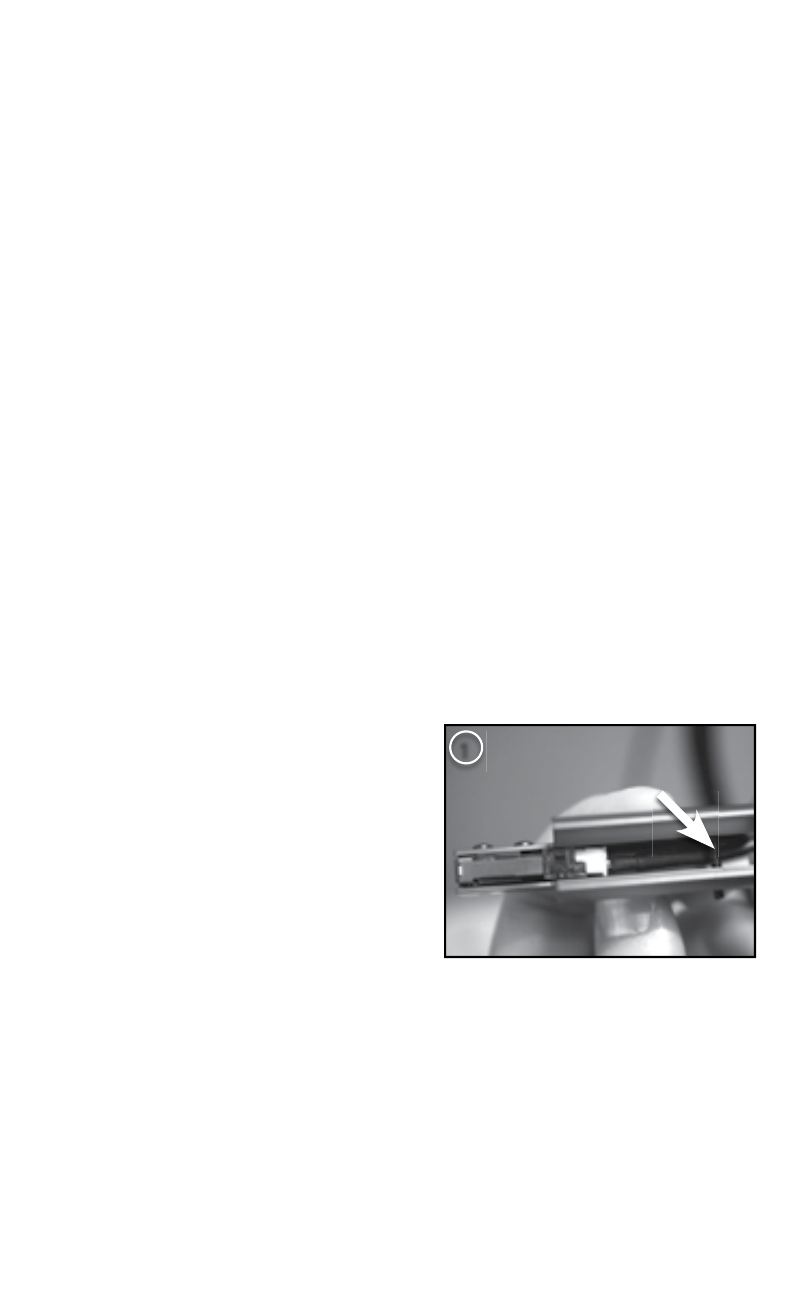

1) Locate the wire lead for the
Primer Detect Sensor. Slide the
wire harness connector between
the Primer Level Check Mounting
Bracket and the 4-40 Screw. Plug
the wire harness into the sensors.
A small blunt object may help fully
seating the connector.
NOTE: If the wire connector does
not easily snap into the sensor,
the sensor can be removed via the
two phillips head screws. After connecting the sensor to the harness,
the sensor can be re-installed.
2) Verify the wire harness is plugged in correctly by activating the sensor
and verifying the corresponding light turns from green to red.
3) Slide the Primer Level Check Mounting Bracket over the Primer Housing
Tube until the notch in the Mounting Bracket is fl ush with the top of the
black plastic Primer Tube Support. Verify the bracket does not interfere
with the LNL Powder Drop.
1
