Hornady Lock-N-Load Control Panel User Manual

Page 4

COUNTER AND SLIDE DETECT SENSOR SETUP

(Deluxe & Standard models)

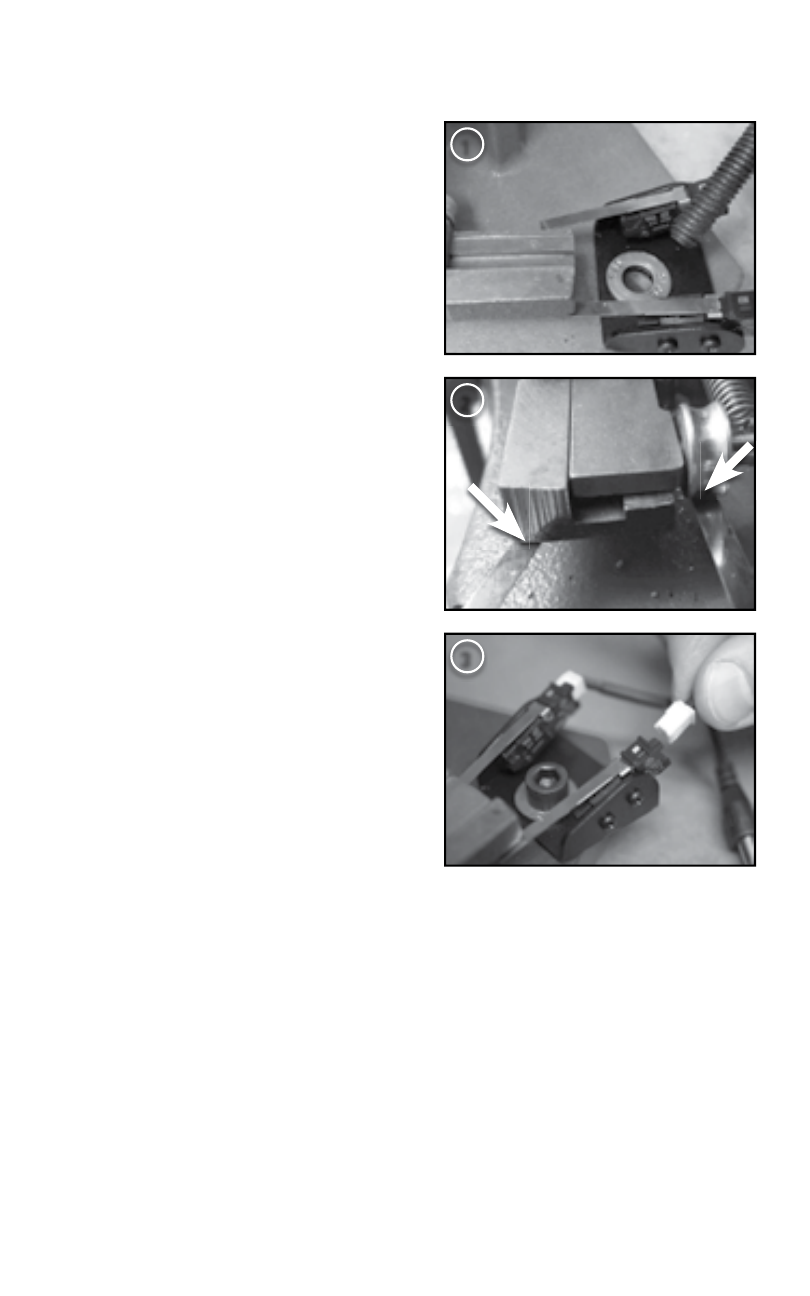

1) Verify reloading press is securely

mounted to bench with two bolts.

Remove the right bolt near the

primer feed/subplate, and insert

the bolt through the Counter

Bracket. Rotate the bracket until

the sensor levers align with the

subplate and primer slide.

NOTE:

It is helpful to use the

Primer Follower to lock the Primer

Slide back to help set the Primer

Slide Switch.

2) Tighten the bracket down once

the Sensors are aligned.

3) Plug the wire harness into each

of the sensors using the two

white connectors near the 12V

input plug.

4) Verify the wire harness is

plugged in correctly by activating

the sensor and verifying the

corresponding light turns from

green to red (or the counter

increases by one).

NOTE:

If the sensors do not

activate, the lever may be bent up

slightly by pressing down on the

lever near the housing and lifting

up on the end of the lever.

OPERATION

• Counter – When cycling the press (including fully returning the

handle as if seating a primer), the counter should increase with

each cycle.

• Primer Slide – When the primer slide is held back from either the Primer

Follower Rod dropping into the slide, or a jammed primer, the green

light on the Control Panel should turn to red at the bottom of the cycle.
