16
PureFlow AirDog
AirDog
®
II Demand Flow Ford PowerStroke 2003-2007 6.0L
Section 6 Electrical Harness
Connecting the AirDog
®
II Relay Control Lead

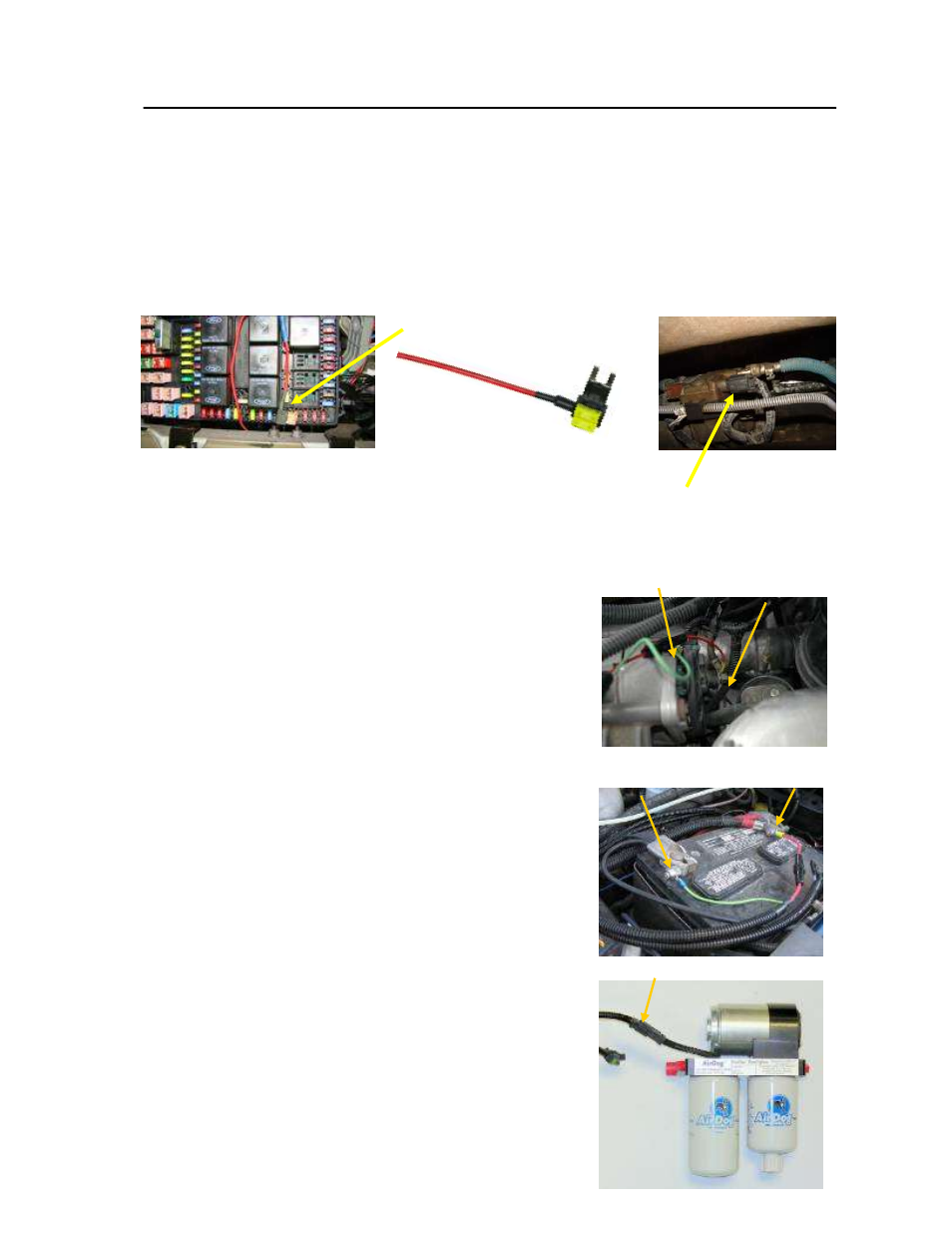

6-2. Route to Relay Lead to the fuse panel. Insert the mini fuse tap into a fuse on the panel
that is “hot” when the starter key is turned to the on position. . If you are installing in a spot that
is already in use you will need to remove that fuse and install it into the fuse tap provided so
both fuse spots are occupied. Or you may cut the fuse off and tap the wire into your factory fuel
pump lead shown in fig 32.
Figure 31 Figure 32
NOTE: The power supply leads can be connected to the battery or the alternator. Connecting
the power supply leads to the alternator instead of the battery will create a corrosion free
connection.
Black (-) Red (+)
6-4. Route the power supply leads to the alternator.
Connect the Black (-) lead to the alternator
Ground connection.
Connect the Red (+) lead to the alternator Hot
Lead going to the battery.
Figure 33
OR
6-5. Should you choose to connect the power
supply leads directly to the battery, connect
the RED (+) lead to the POSITIVE (+) post
of the driver's side battery. Connect the
BLACK (-) lead to the NEGATIVE (-) post
of the same battery.
Figure 34
6-6.
Route the wiring harness to the AirDog
®
II
and connect the 2 pin Deutsch connector
to the corresponding connector on
the AirDog
®
II.
Figure 35
