PureFlow AirDog DF-165 - 6.0L Ford 2003-2007 - Manual (Page 15)

15
PureFlow AirDog
AirDog
®
II Demand Flow Ford PowerStroke 2003-2007 6.0L

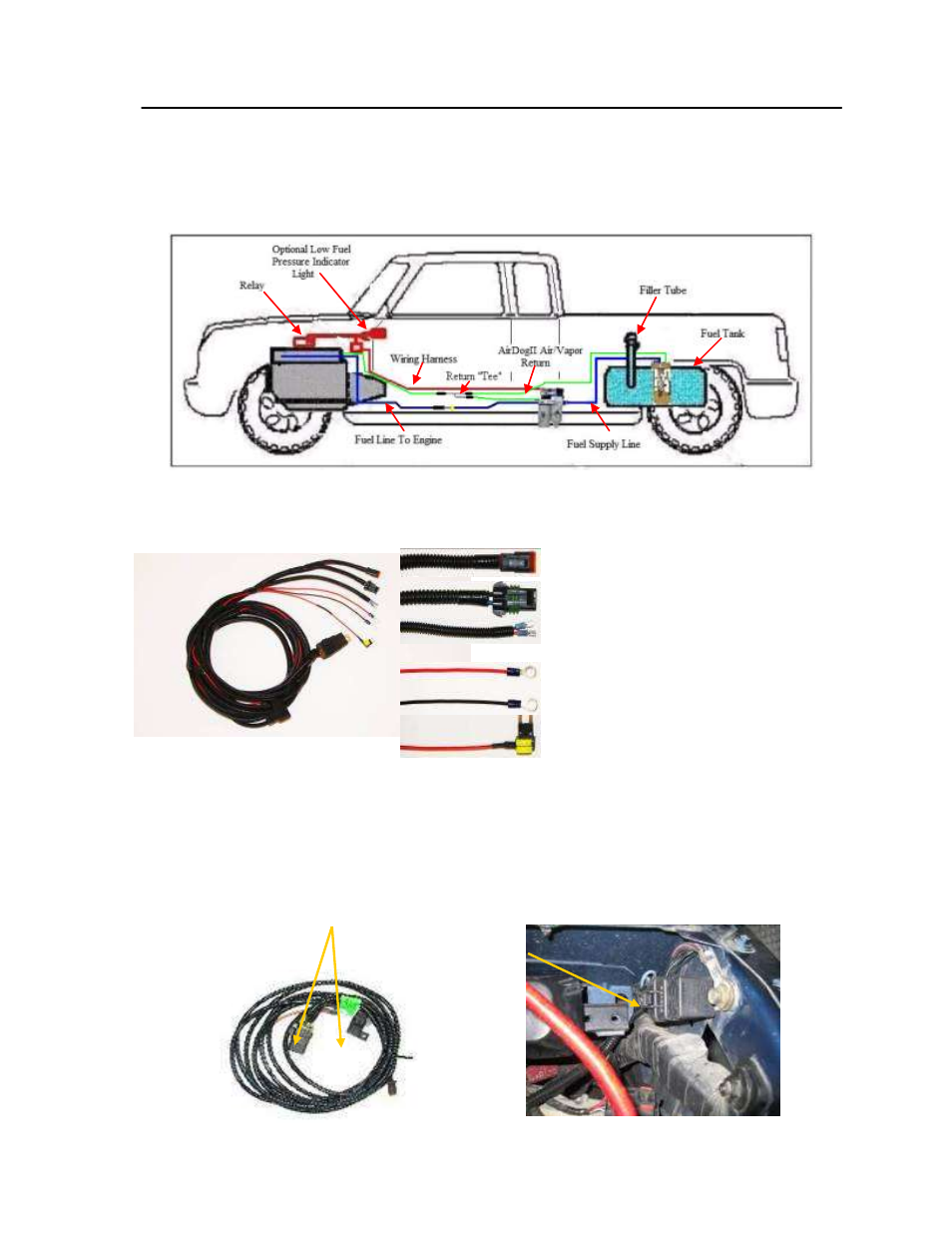

Section 6 Electrical Harness
The AirDog
®
II is equipped with a relay controlled wiring harness.
WIRING DIAGRAM (In Red)
Figure 27
The AirDog
®
II wiring harness!
AirDog®II Pump Motor Lead
Pressure Sensor/Switch Lead*
Indicator Light Lead*
Battery Positive Lead
Battery Negative Lead
Mini Fuse Tap Relay Lead
Figure 28
CAUTION: If the OPTIONAL Low Pressure Indicator Light is not used, be sure to insulate
the two (2) #10 Indicator Light connectors and pressure sensor lead to prevent accidental
contact. *The light kit is sold separately and is not included in the kit.
Securing the Relay and Fuse Holder to the Vehicle
6-1. Secure the relay and fuse holder to the vehicle.
Figure 29 Figure 30
