PureFlow AirDog DF-165 - 6.0L Ford 2003-2007 - Manual (Page 11)

11
PureFlow AirDog
AirDog
®
II Demand Flow Ford PowerStroke 2003-2007 6.0L
Section 5-A Fuel Lines
AirDog
®
II High Pressure Fuel Line to the Engine.
5A-1. Disconnect the high pressure fuel supply line to the engine from the OE fuel pump.
This pump is located on the driver’s side inside frame rail.

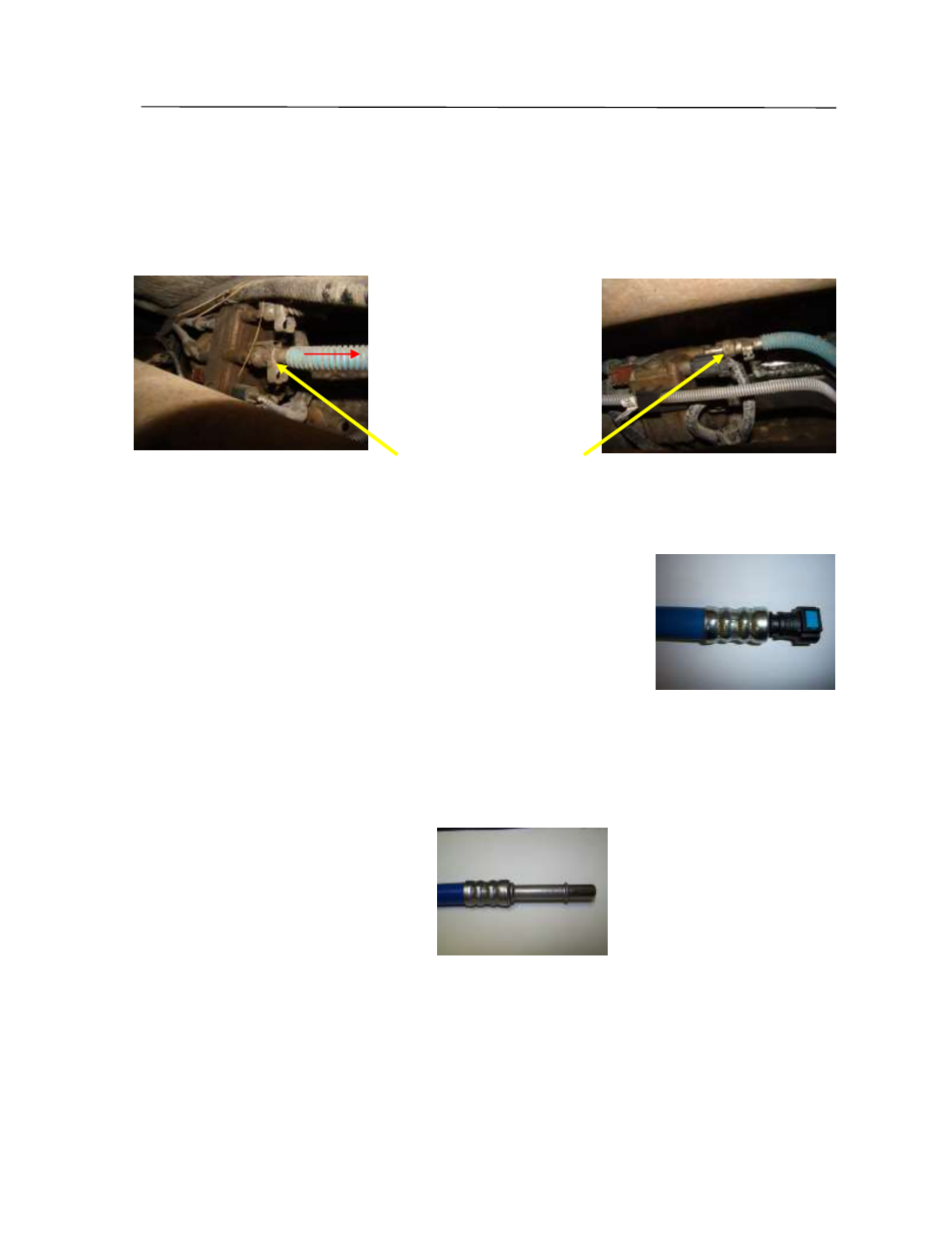

High Pressure Fuel Pump with 3/8” Quick Connect Fitting
To Engine
Figure 11 DISCONNECT HIGH PRESSURE Figure 12
View from Front FUEL LINE HERE View from Below
5A-2 Insert the female quick connect end (see figure 13) of the
“Pressure Hose Assembly” into the male quick connect
fitting previously installed in the port marked “ENGINE”.
You will hear a “click” when it connects.
Figure 13
5A-3. Connect the other end of the “Pressure Hose Assembly” (Figure 14) to the original
factory engine supply line shown in figures 11 & 12. It will “click” when properly
connected.
Figure 14
5A-4 Any excess fuel hose can be addressed by routing the hose in a fashion to take up the
extra length, or a section of the hose can be removed. Push lock splices have been
included if you choose to remove the excess hose.
NOTE: The OE fuel pump and fuel line from the fuel tank may be removed from the
vehicle at this time, if desired.
