Section 6 Electrical Harness, cont’d
OR

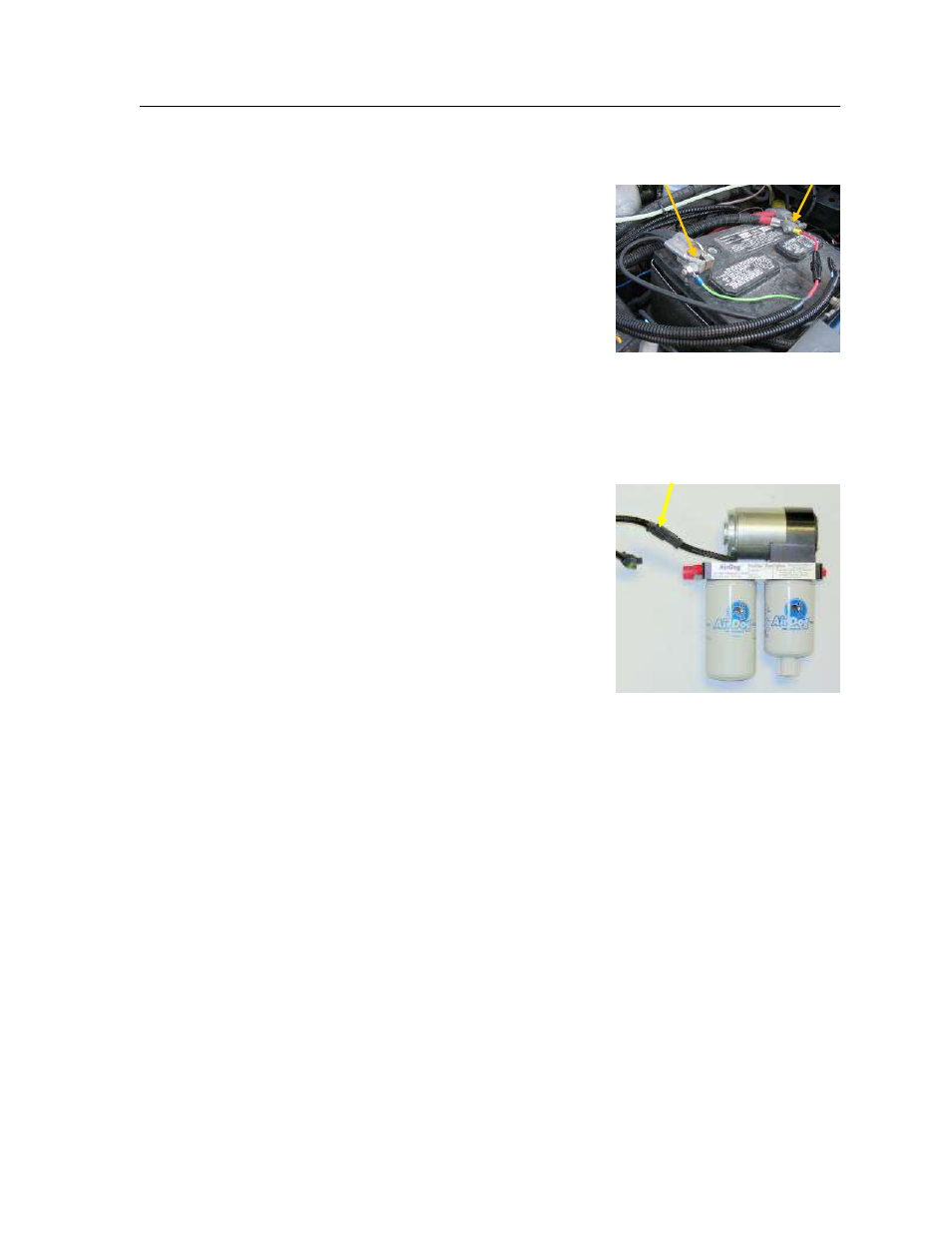

6-7. Should you choose to connect the power
supply leads directly to the battery, connect
the RED (+) lead to the POSITIVE (+) post
of the driver's side battery. Connect the
BLACK (-) lead to the NEGATIVE (-) post
of the same battery. Figure 50
Connecting the Wiring Harness to the AirDog®
6-8 Route the wiring harness to the AirDog
®
and connect the 2 pin Deutsch connector
to the corresponding connector on
the AirDog
®
.
Figure 51
