PureFlow AirDog FP-150 - Dodge Cummins 2005-2013 - Manual (Page 17)

17
PureFlow AirDog
AirDog
®
FP-100 & FP-150 Dodge 2005-Present
Section 5-D High Flow Suction Tube
INSTALLING THE HIGH FLOW SUCTION TUBE, C ont’d

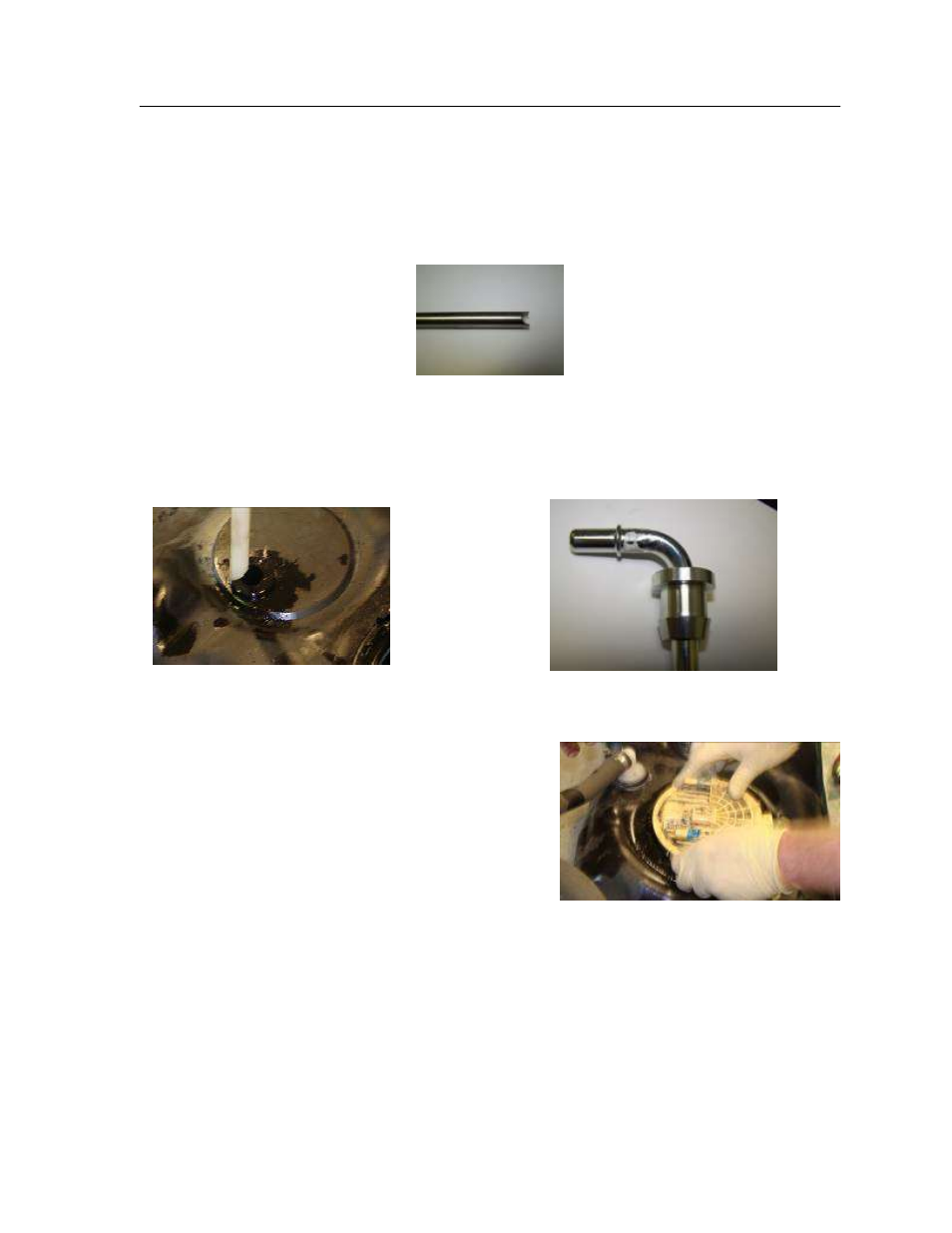

5D-5. Measure and cut the suction tube to a length that will allow approximately 1/8”
clearance off the bottom of the tank. It is suggested to form the end of the tube similar
to Figure 36.
Figure 36
5D-6. Lubricate the bulkhead fitting with motor oil. Pressing firmly, insert the suction tube
assembly into the grommet. Be sure the bulkhead fitting is completely seated in the
grommet.
Figure 37 Figure 38
5D-8. Re-install the Collection basket.
Re-install the factory return line to the proper
Port of the Collection basket before the tank
Is fully re-installed.
Figure 39
5D-9. Connect the end of the “Suction Hose Assembly” to the bulk head fitting while it is
easily accessible. A “click” will be heard when it is properly installed.
5D-10. Insert the female quick connect end (see figure 40) of the “Suction Hose Assembly”
to the male quick connect fitting in the “Fuel In” port during step 4-3 of this manual.
A “click” will be heard when the fitting is properly connected.
