12
PureFlow AirDog
AirDog
®
FP-100 & FP-150 Dodge 2005 - Present
Section 5-A Fuel Lines

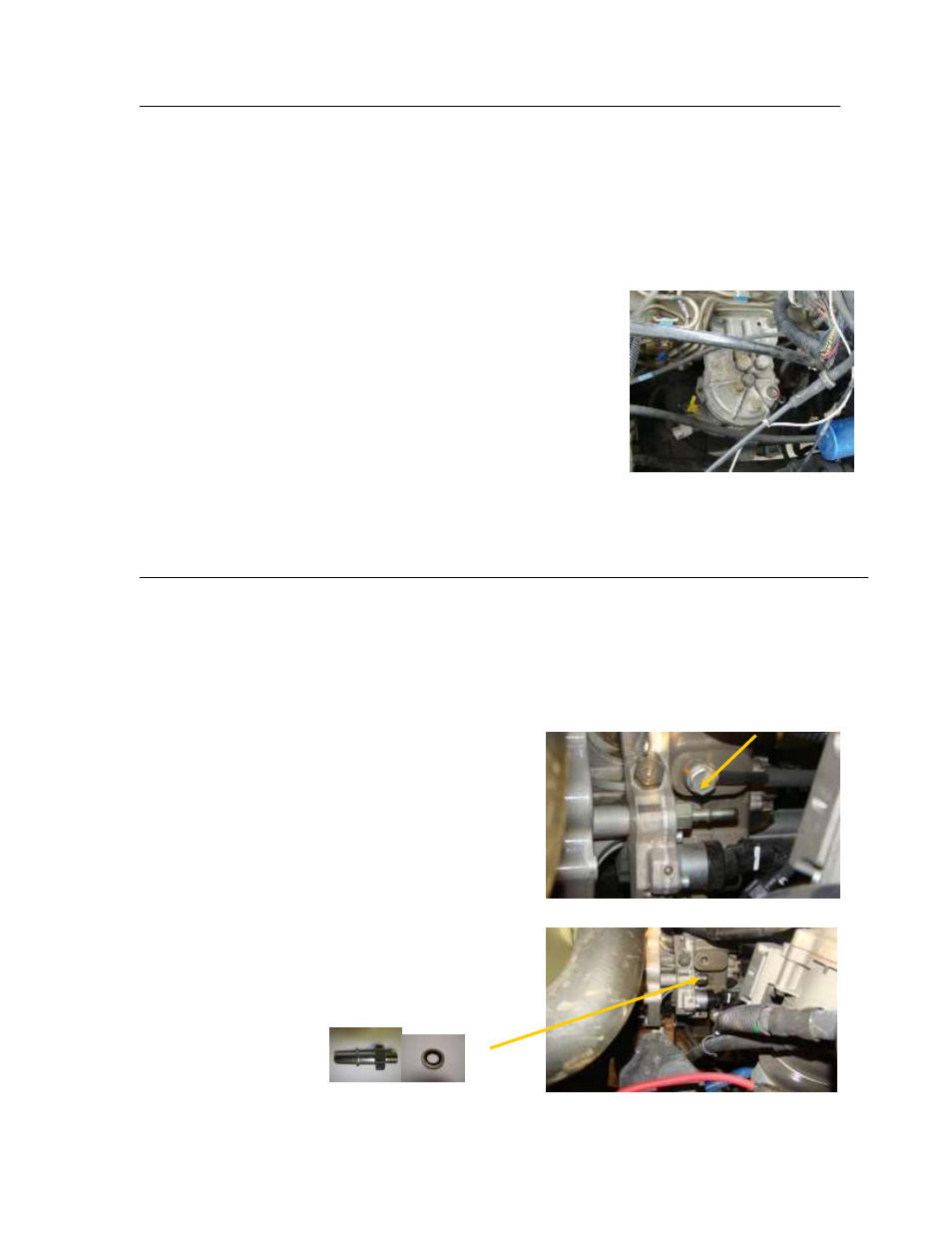

5A-6. It is advised to remove the factory supply lines between the tank and the filter
canister. Also remove the factory supply line between the filter canister and the
injection pump. Then plug the ports on the filter canister. This will prevent fuel
spillage.
Figure 17
NOTE: Be sure to keep the ORIGINAL ENGINE RETURN LINE connected as it is from
the factory! In many cases the return runs thru the flange of the filter canister.
Section 5 B
Fuel Supply Line from the AirDog
®
to the CP-3
For the 6.7L Cummins Engine
The AirDog
®
fuel filter has a 2 micron media. When installing the AirDog
®
fuel system
it is recommended to bypass the factory filter canister.
5B-1. Remove the Quick Connect fitting and the
original factory fuel supply line at the fuel
inlet port of the CP-3 high pressure pump.
Figure 18
5B-2. Install the WAP 102 fitting with the
Seal washer supplied into the inlet port of the
CP-3 vacated by the original Quick Connect
fitting. Firmly tighten the WAP 102 fitting.
Figure 19
CAUTION: Do not over torque the WAP 102 fitting,
IT COULD BREAK!
