PureFlow AirDog FP-150 - Dodge Cummins 1994-1998 - Manual (Page 21)

21
PureFlow AirDog
AirDog
®
FP-100 & FP-150 Dodge Cummins 1994 - 1998
Section 6 Electrical Harness Cont’d

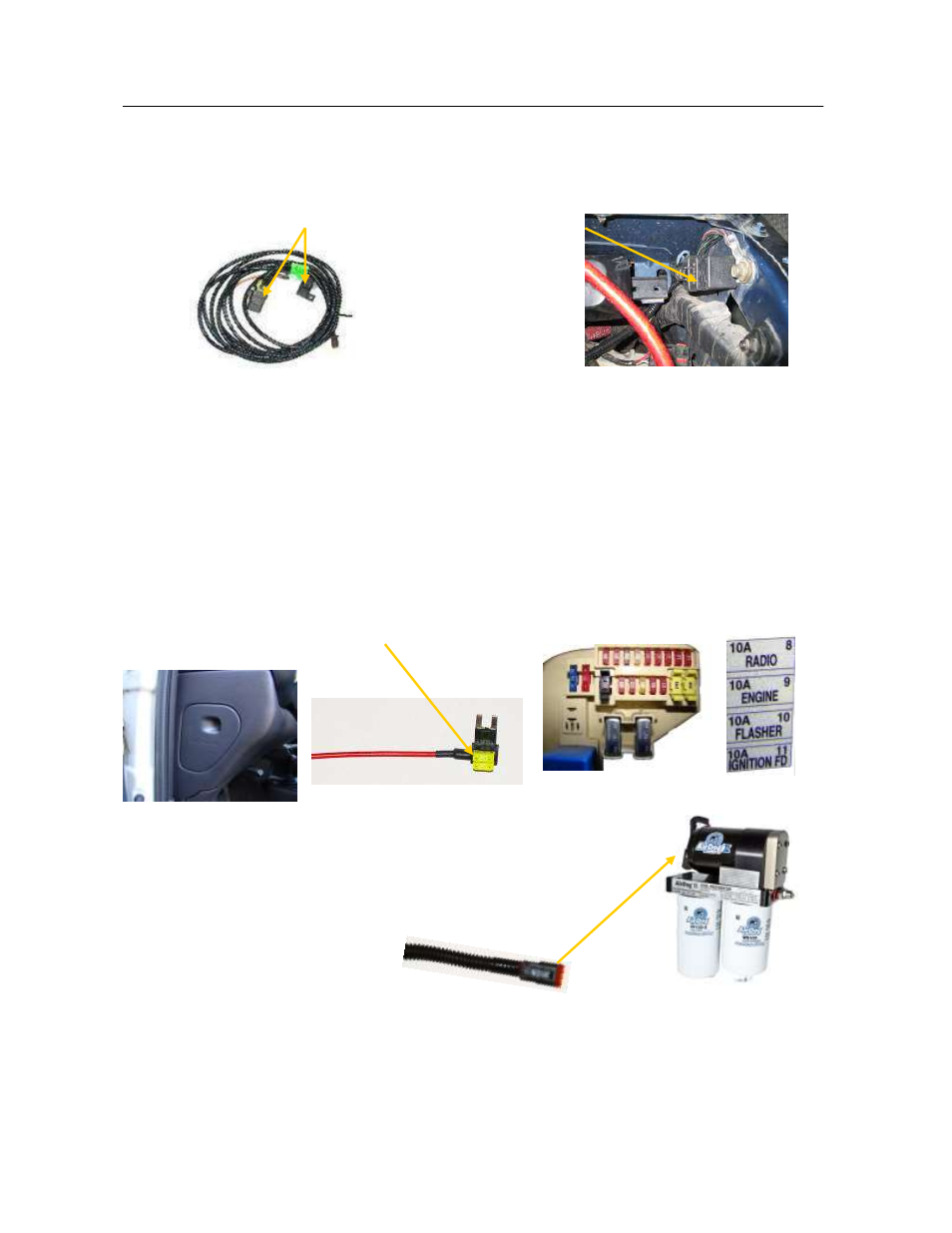

Securing the Relay and Fuse Holder to the Vehicle
6-1.
Secure the relay and fuse holder to the vehicle.
Figure 58 Figure 59
Connecting the AirDog
®
Relay Control to the Fuse Panel
6-2. Route the red, Relay Trigger, wire with the mini fuse
tap attached to the fuse panel located inside the cab
on the driver’s side. Insert the mini fuse tap into a spare
fuse holder or key hot source on the panel that is “hot” when the starter Route the red,
Relay Trigger, wire with the mini fuse tap attached to the fuse panel located inside the
cab on the driver’s side. Insert the mini fuse tap into a spare fuse holder or key hot
source on the panel that is “hot” when the starter key is turned to the on position. If you
are installing in a spot that is already in use you will need to remove that fuse and install
it into the fuse tap provided so both fuse spots are occupied.
Figure 60
6-3. Route the AirDog
®
pump motor lead to the AirDog
®
.
Connect the 2 pin Deutsch connector on the end of the
wiring harness into the corresponding pump motor lead
connector on the AirDog
®
.
NOTE: If the Optional Indicator Light is not used, secure the pressure switch lead to the
wiring harness with a plastic tie. Also, cover the pressure sensor lead to protect it you may
want to use it later.
