20
PureFlow AirDog
AirDog
®
FP-100 & FP-150 Dodge Cummins 1994 - 1998
Section 5-E High Flow Suction Tube
INSTALLING THE HIGH FLOW SUCTION TUBE, C
ont’d
5E-10. If the fuel tank was dropped to install the suction tube, re-install the fuel tank.
If the truck bed was removed, reinstall the bed.
Section 6 Electrical Harness
The AirDog
®
is equipped with a relay controlled wiring harness.

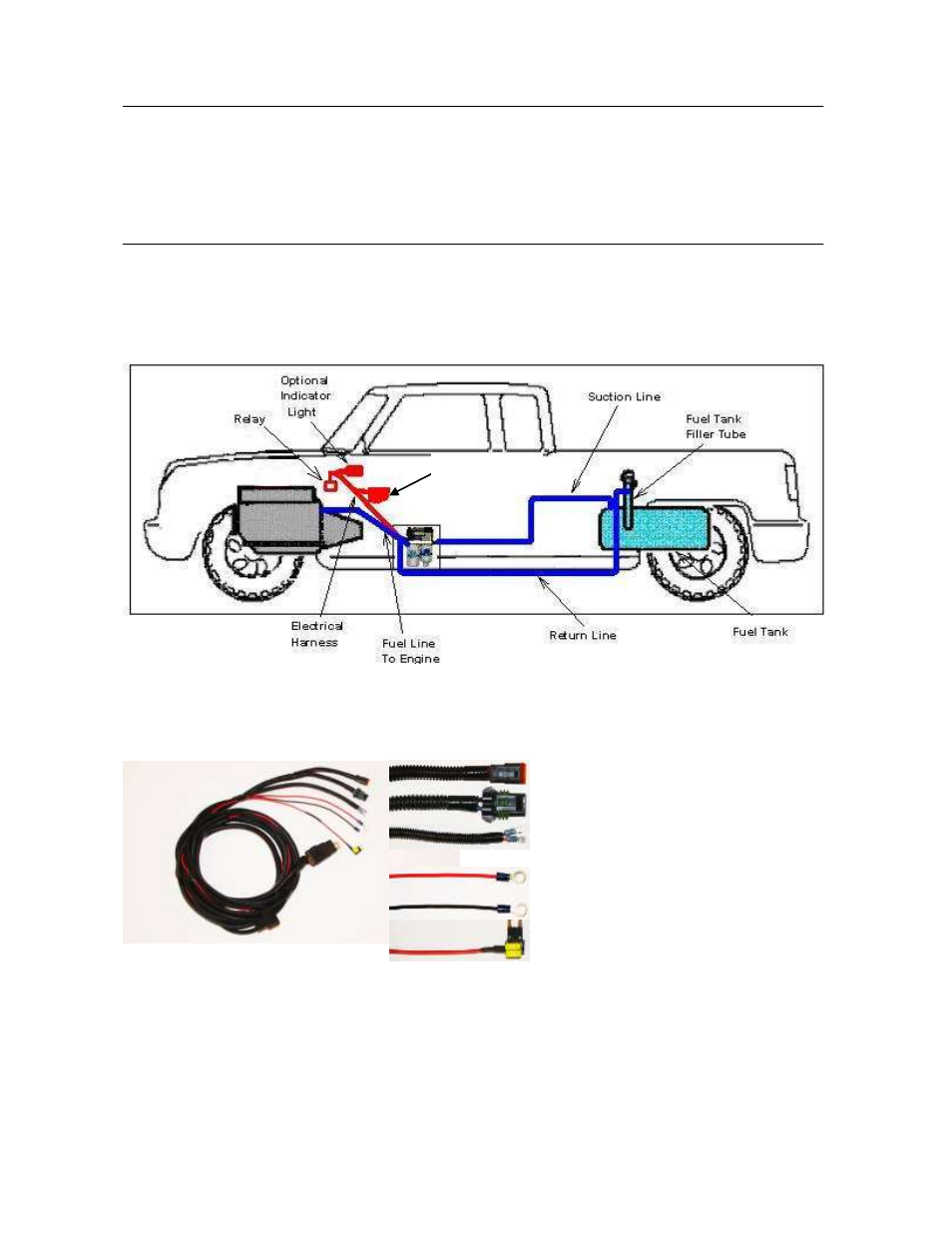

WIRING DIAGRAM (In Red)
Figure 56
The AirDog
®
is activated through a relay controlled wiring harness connecting directly to the
fuse panel.
AirDog® Pump Motor Lead
Optional Pressure Sensor/Switch Lead*
Indicator Light Lead
Battery Positive Lead
Battery Negative Lead
Mini Fuse Tap Relay Lead
Figure 57
CAUTION: If the OPTIONAL Low Pressure Indicator Light is not used, be sure to insulate the
two (2) #10 Indicator Light connectors to prevent accidental contact. The light kit is sold
separately and is not included in the kit.
Fuse Panel
