AirDog® 100 & 150 Dodge Cummins 1994 - 1998
Section 5-A Fuel to Engine
Installing the Fuel Supply Line from the AirDog
®
to the P-7100!
For optimum engine performance, it is recommended to bypass the factory filter canister
when installing the AirDog
®
fuel system.
5A-1. Remove the 14mm banjo bolt and original factory fuel supply line at the fuel inlet port
of the P-7100 injector pump and from the original fuel filter head outlet port.
P-7100 Fuel Inlet Port

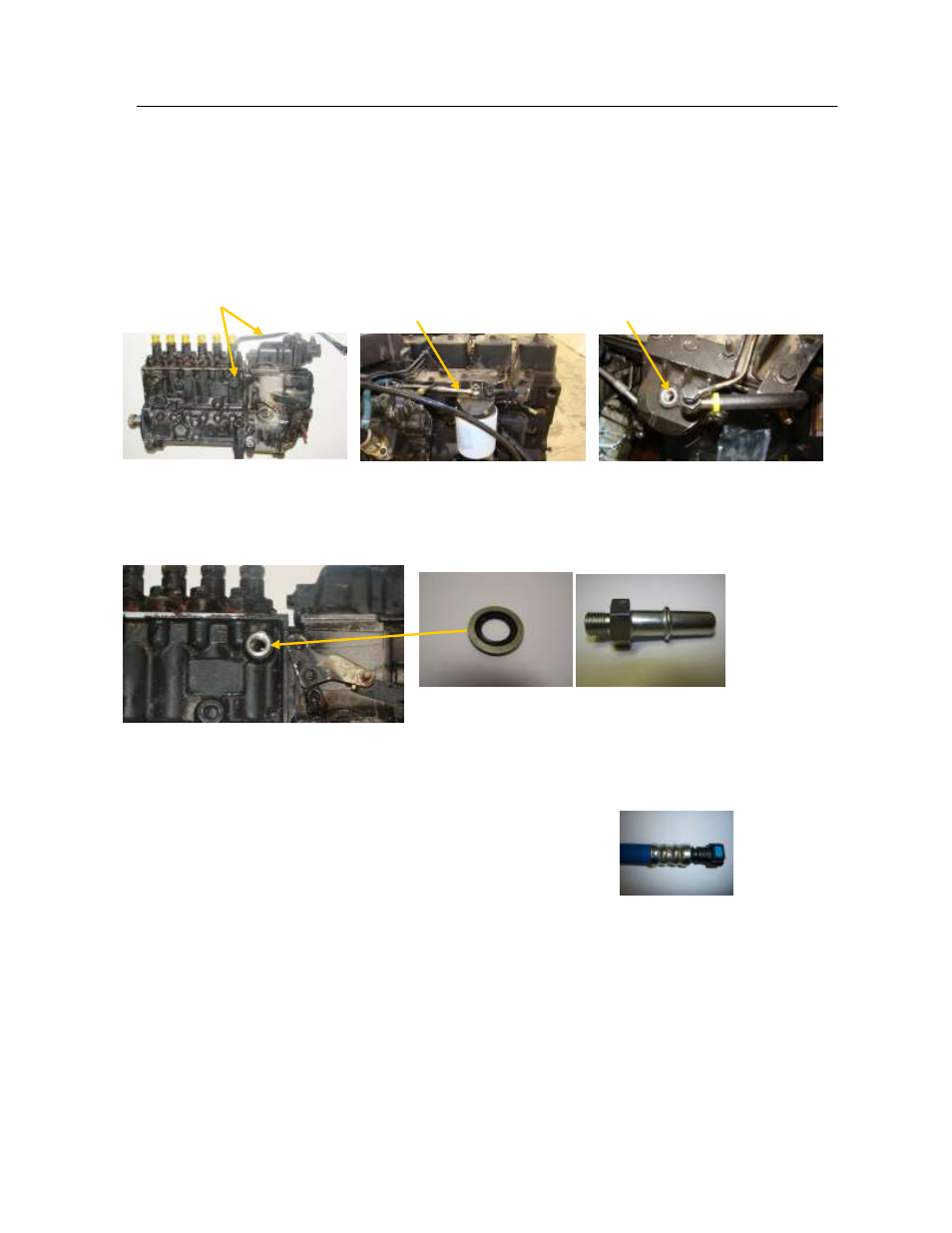

Figure 14 Figure 15 Figure 16
5A-2. Install the WAP 103 fitting with seal washer into the inlet port of the P-7100 vacated by
the original banjo fitting.
Figure 17
5A-3 Insert the female quick connect end (see figure 18) of the “pressure hose
assembly” into the male quick connect fitting previously installed in the port marked
“ENGINE”. You will a “click” when it connects.
Figure 18
5A-4. Connect the other end of the “pressure hose assembly” to
the inlet fitting installed in step 5A-2. It will “click”
when properly connected.
5A-5 Any excess fuel hose can be addressed by routing the hose in a fashion to take up the
extra length, or a section of the hose can be removed. Push lock splices have been
included if you choose to remove the excess hose.
