10
PureFlow AirDog
AirDog
®
FP-100 & FP-150 Dodge 1998.5 - 2004
Section 4 AirDog ® & Mounting Brackets
Installing the AirDog
®
& Mounting Brackets on the Truck’s
Frame, cont’d!

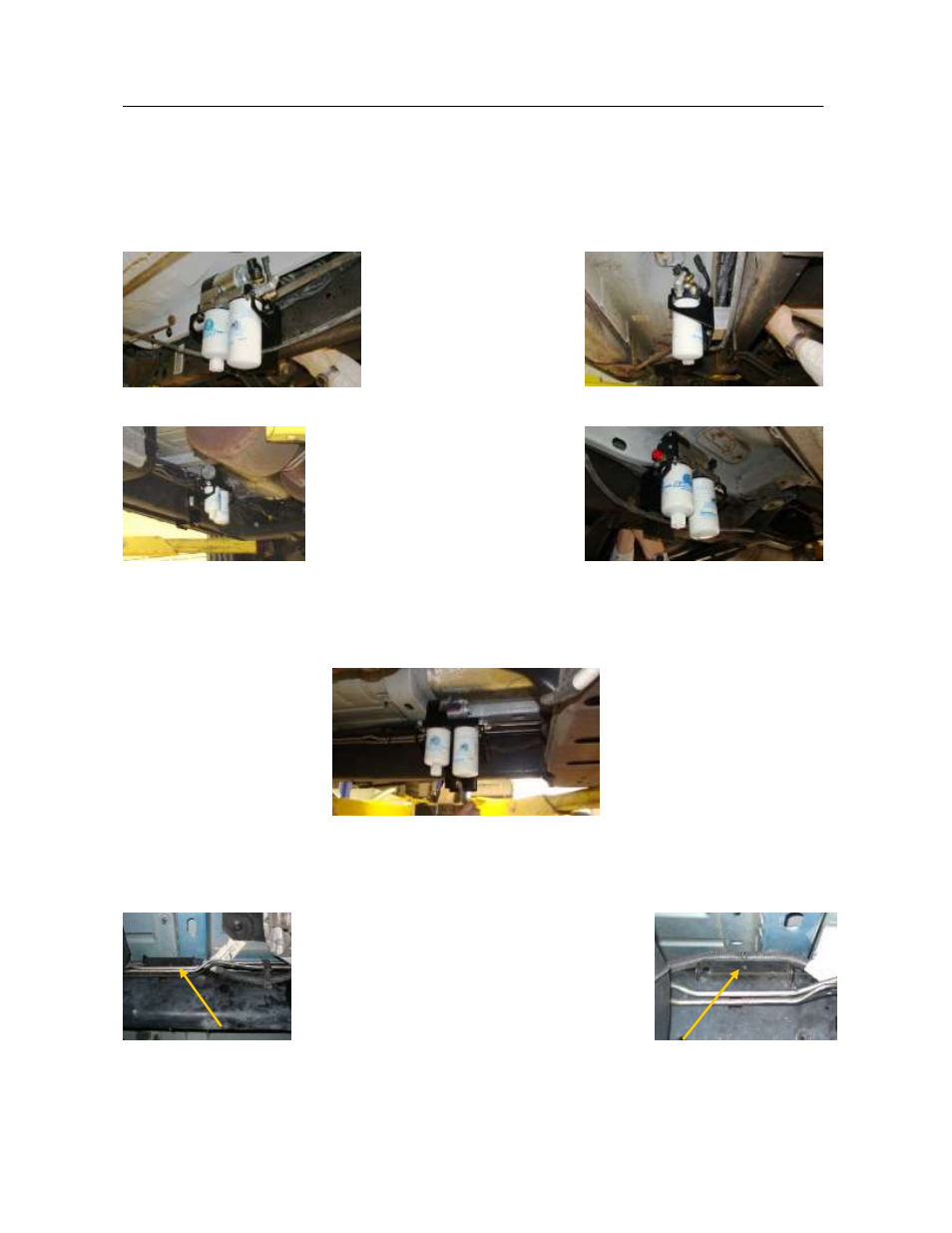

NOTE: The AirDog® can be mounted on either the inside or the outside of the frame, as
space or personal choice dictates.
Mount
The AirDog®
Outside
The
Frame
Figure 8 OR Figure 9
Inside
The
Frame
Figure 10 Figure 11
For this installation, the AirDog® is mounted inside the frame!
4-5. Clamp the frame between the AirDog® bracket assembly and the backing plate using
the bolts, lock washers, and nuts included in the kit.
Figure 12
4-6. Position the AirDog® on the frame as necessary for clearance.
NOTE: Be sure to mount the AirDog® so the ‘FUEL IN’ port is directed toward the rear of the
vehicle.
Figure 13A
Figure 13B
NOTE: Some pickup model frame rails have a bracket that is used to support the frame during
the manufacturing process. If this bracket is on your frame rail and obstructs the proper
positioning of the AirDog® mounting bracket, you may remove part or all of it, as needed. Be
very careful not to damage the frame flange!
