16
Power Supply Red +
Power Supply Black -
PureFlow AirDog
AirDog
®
II Dodge 2005 - 2011
Section 6 Electrical Harness
The AirDog
®
wiring harness features water proof Deutsch connectors,
relay, and fuse holder. When properly installed, the AirDog
®
is controlled
by the
engine’s ECM.

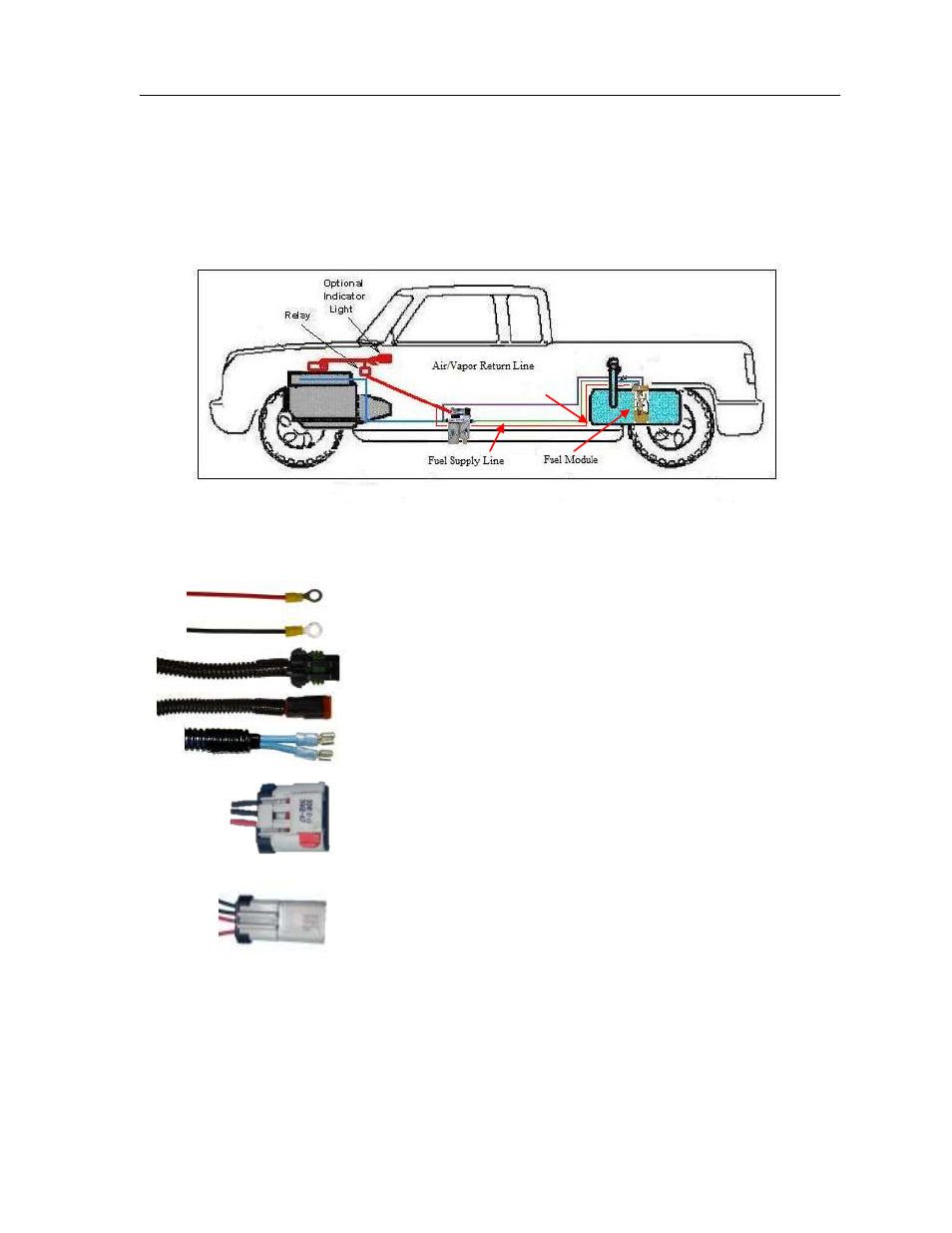

WIRING DIAGRAM (In Red)
Figure 41
The AirDog
®
is activated by the ECM through a relay controlled wiring harness connecting
directly to the original ECM Deutsch pump connector.
Figure 42
CAUTION: IF THE OPTIONAL LOW PRESSURE INDICATOR LIGHT IS NOT USED,
BE SURE TO INSULATE THE TWO (2) #10 INDICATOR LIGHT CONNECTORS TO
PREVENT ACCIDENTAL CONTACT.
Pressure Sensor Lead
Motor Power Supply Lead
Low Fuel Pressure
Indicator Light Leads
Female Power Lead Jumper
Plugs into Fuel Module
Male Power Lead Jumper
Plugs into Factory Harness
