Section 5 A Fuel Lines
Fuel Supply Line from the AirDog
®
II to the CP-3
For the 5.9L Cummins Engine, cont’d!
NOTE: Having routed the fuel line directly to the CP3, you may need to cap or plug the inlet
and outlet ports of the bypassed filter canister or may also leave the stock lines in place and
simply secure them out of the way.
NOTE: Be sure to keep the ORIGINAL ENGINE RETURN LINE connected as it is from
the factory! In many cases the return runs through the flange of the filter canister.

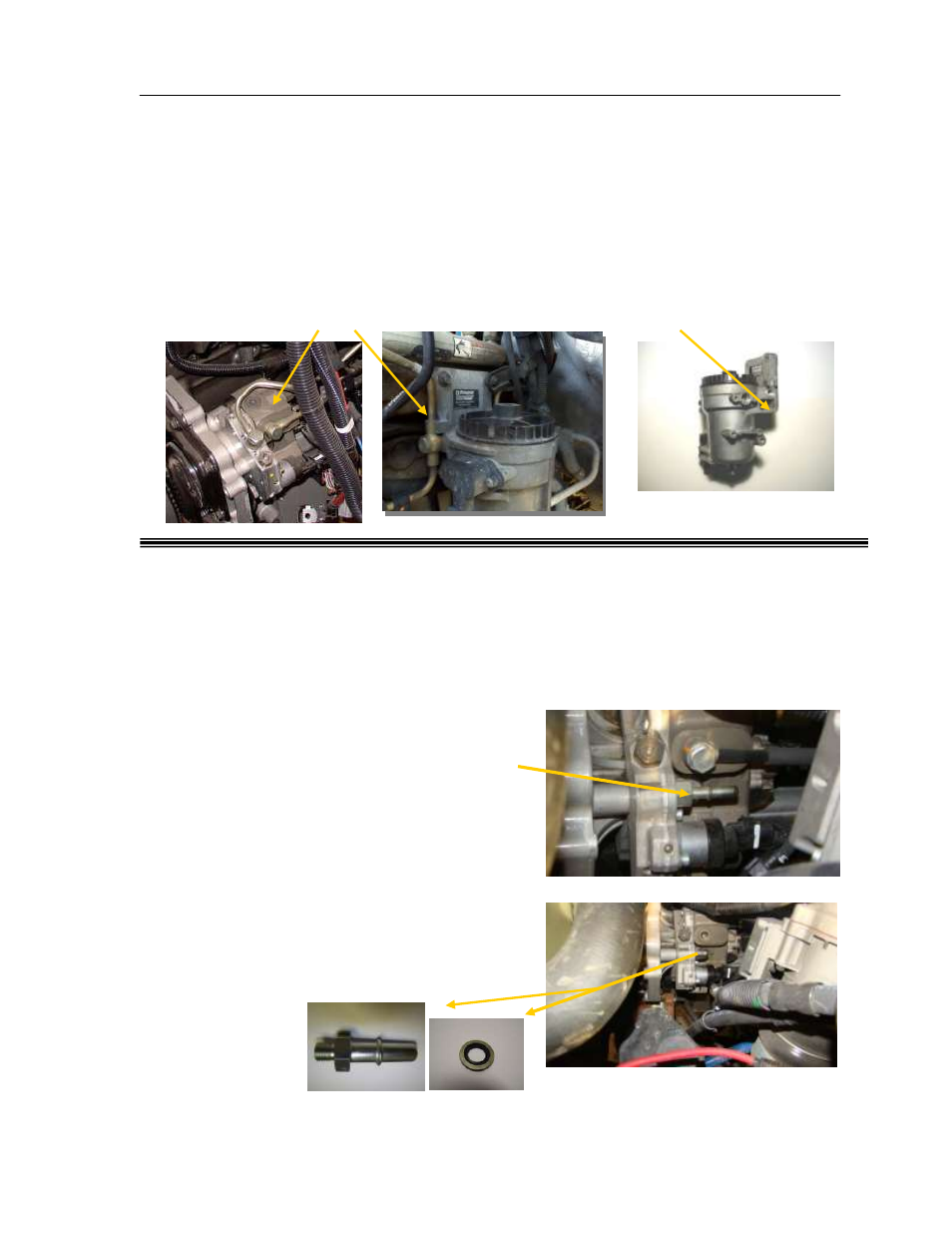

Figure 17
Section 5 B
Fuel Supply Line from the AirDog
®
II to the CP-3
For the 6.7L Cummins Engine
The AirDog
®
II fuel filter is available in 2 micron media. When installing the AirDog
®
II
fuel system it is recommended to bypass the factory filter canister.
5B-1. Remove the Quick Connect fitting and the
original factory fuel supply line at the fuel
inlet port of the CP-3 high pressure pump.
Figure 18
5B-2. Install the 12mm x ½” male quick connect
fitting with the seal washer supplied into
the inlet port of the CP-3 vacated by the
original Quick Connect fitting.
Figure 19
CAUTION: Do not over torque the 12mm fitting.
IT COULD BREAK!!
