PureFlow AirDog
AirDog
®
II Dodge 2005 - 2011
Section 5 A Fuel Lines
Fuel Supply Line from the AirDog
®
II to the CP-3
For the 5.9L Cummins Engine
When installing the AirDog
®
II fuel system it is recommended to bypass the factory
filter canister.
Fuel Line Specs
Manufacturer: EATON Weatherhead
Rated for Diesel Fuel
Cover: Blue Vinyl Nitrile Inner Tube: Nitrile
Reinforcement: 1 Fiber Braid Temp. Range: -40°F to +212°F
Working Pressure 250 PSI Burst Pressure 1,000 PSI.
5A-1. Remove the “banjo bolt” and the original factory fuel supply line at the fuel inlet port
of the CP-3 high pressure pump.

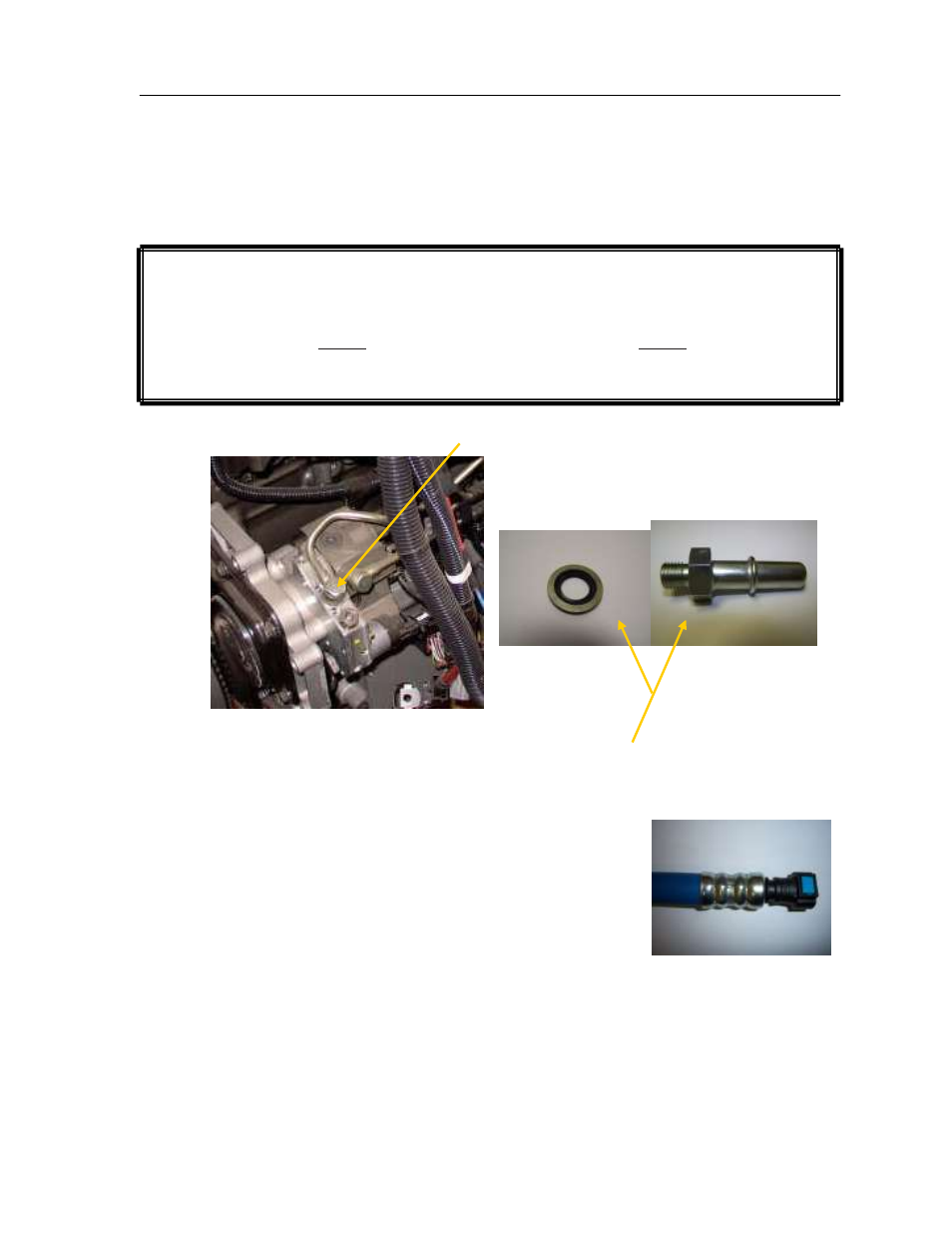

Figure 15
5A-2. Install the 12mm x ½” male SAE J2044 (WAP 102) fitting with the seal washer
supplied into the inlet port of the CP-3 (Ref. Figure 15) vacated by the original banjo
fitting. Do not over tighten the fitting. It may break.
5A-3 Insert the female quick connect end (see figure 16) of the
“Pressure Hose Assembly” into the male quick connect
fitting previously installed in the port marked “ENGINE”.
You will hear a “click” when it connects.
Figure 16
5A-4. Connect the other end of the “Pressure Hose Assembly” to
the inlet fitting installed in step 5A-2. It will also “click” when properly connected.
5A-5 Any excess fuel hose can be addressed by routing the hose in a fashion to take up the
extra length, or a section of the hose can be removed. Push lock splices have been
included if you choose to remove the excess hose.
