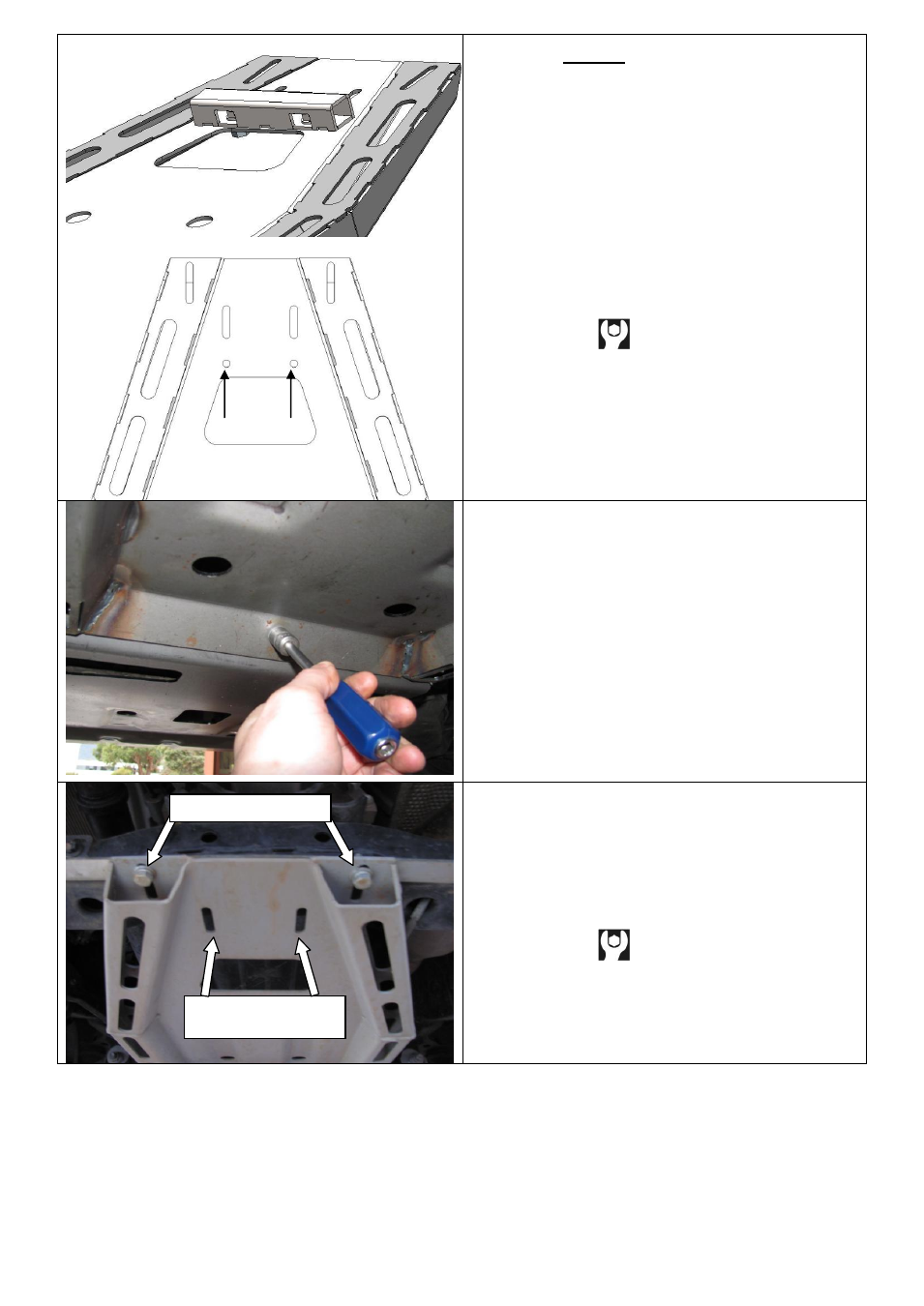

13. Using M8 x 20 bolts, spring washers, flat
washers and flange nuts attach spacer to
transmission panel.
NOTE: This must be done prior to fitting
transmission panel. If transmission panel does
not have the two mounting holes please use
attached drilling template (3789203) to drill
9mm holes.
M8 - 22 Nm.
14. Lift transmission panel into place and secure
to centre panel using three M8 x 25mm bolts,
spring washers, flat washers and flange nuts
(outer holes only). Leave finger tight.
15. NOTE: Use outer slots for 150 series and
inner slots for 120 and FJ. Secure rear of
panel to bracket using two M8 x 25mm bolts,
spring washers, flat washers and M8 flange
nuts. Tighten all panel bolts when done
including front stone shield bolts.
M8 - 22 Nm.
120 SERIES
AND FJ CRUISER
150 SERIES PRADO
